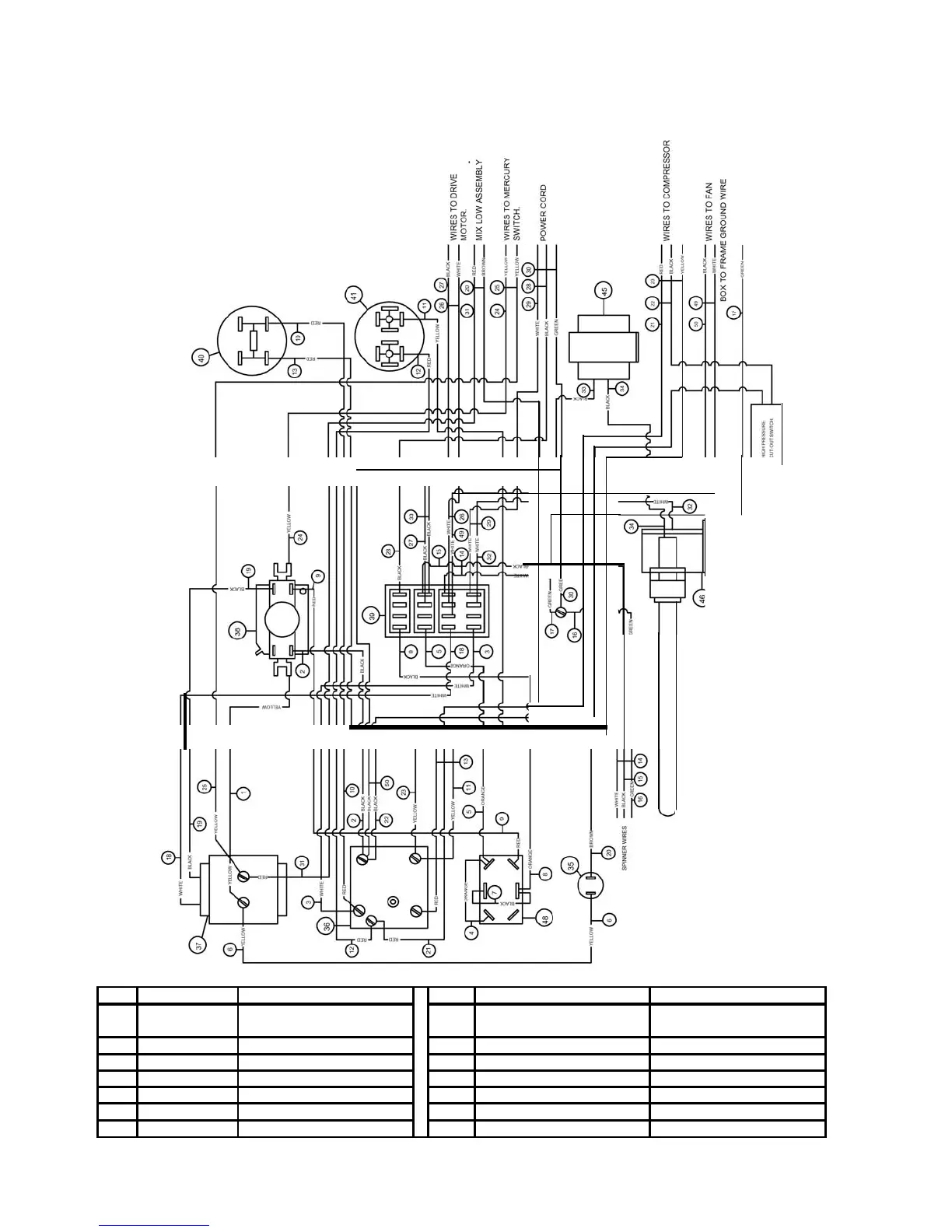

DONPER XF124 - Wiring Diagram - Water-Cooled Model

Model 3311
Page 26
-
XF124
Wiring
Diagram
Water-Cooled
Model
l
ITEM
PART NUMBER
DESCRIPTION
ITEM
PART NUMBER
DESCRIPTION
49
W0650428
HIGH PRESSURE
CUT-OUT SWITCH
41 W0570604 RUN CAPACITOR
48
W0570924
SWITCH
40
W0570603
START CAPACITOR
47
W0570043
FLORESCENT LIGHT BULB
39
W0570235
TERMINAL BLOCK
46
W0570044
LIGHT SOCKET
38
W0570651
TIME DELAY RELAY
45
W0570045
CORE & COIL BALLAST
37
W0572032
TRANSFORMER SUB-ASSY
43
W0572068
POWER CORD
36
W0570638
COMPRESSO R RELAY
42
W0572192
LOW MIX SUB-ASSY
35
W0570007
INDICATOR LIGHT
