DONPER XF124 - Refrigeration - 220 V Air-Cooled Model

Model 3311
Page 33
XF124
Refrigeration
220V Air-Cooled
Model

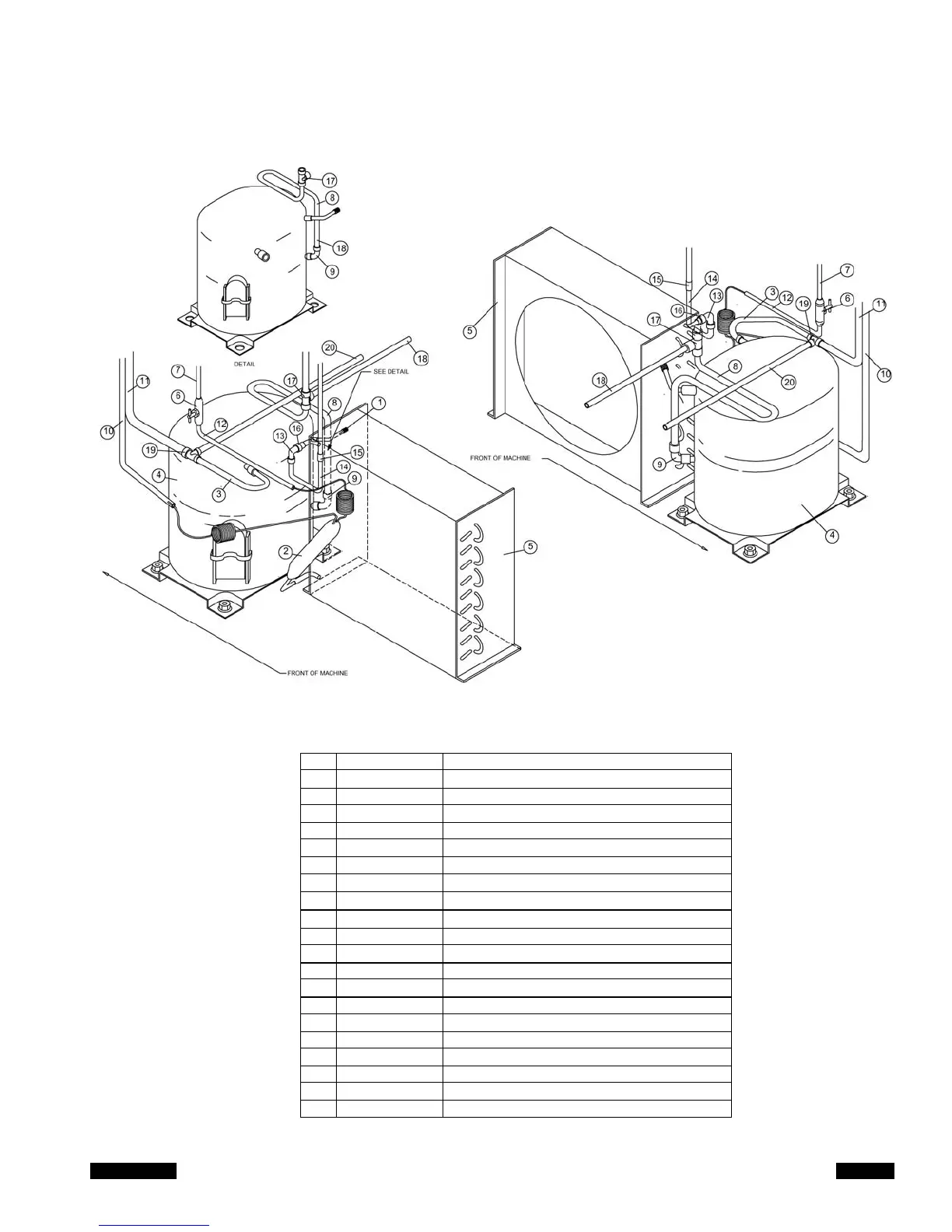

RIGHT SIJE VIEW Of REfRKlERATION
lEFT S l OE VIEW OF REtAIGEAATIO N
ITEM
PART NUMBER DESC R I PT I ON
1
W0650501
ACCESS VALVE
2
W0200310
DRIER/CAP TUBE ASSEMBLY
3
W0201191
SUCTION LINE
4
W0200132
COMPRESSOR
5
W0200256
CONDENSER
6
W0650416
NEEDLE VALVE
7
...... . .... . ....
HOPPER COOLANT LINE
8
W0201009
HOT GAS LINE
9
W0620112
3/8" COPPER ELBOW
10
-------
EVAPORATOR LINE
11
.......... . .....
SUCTION LINE
12
W0201133
COOLANT LINE
13
W0620107
90 DEG . STREET ELBOW
14
W0201151
3/8" COND . CONNECTION
15
W0620103
3/8" COPPER COUPLE
16
W0201152
5/16 X 3/8 RED. COUPLE
17
W0620114
3/8" COPPER TEE
18
W0201006
HIGH SIDE PROCESS TUBE
19
W0620106
1/2 X 3/8 X 3/8 COPPER TEE
20
W0201008
LOW SIDE PROCESS TUBE
