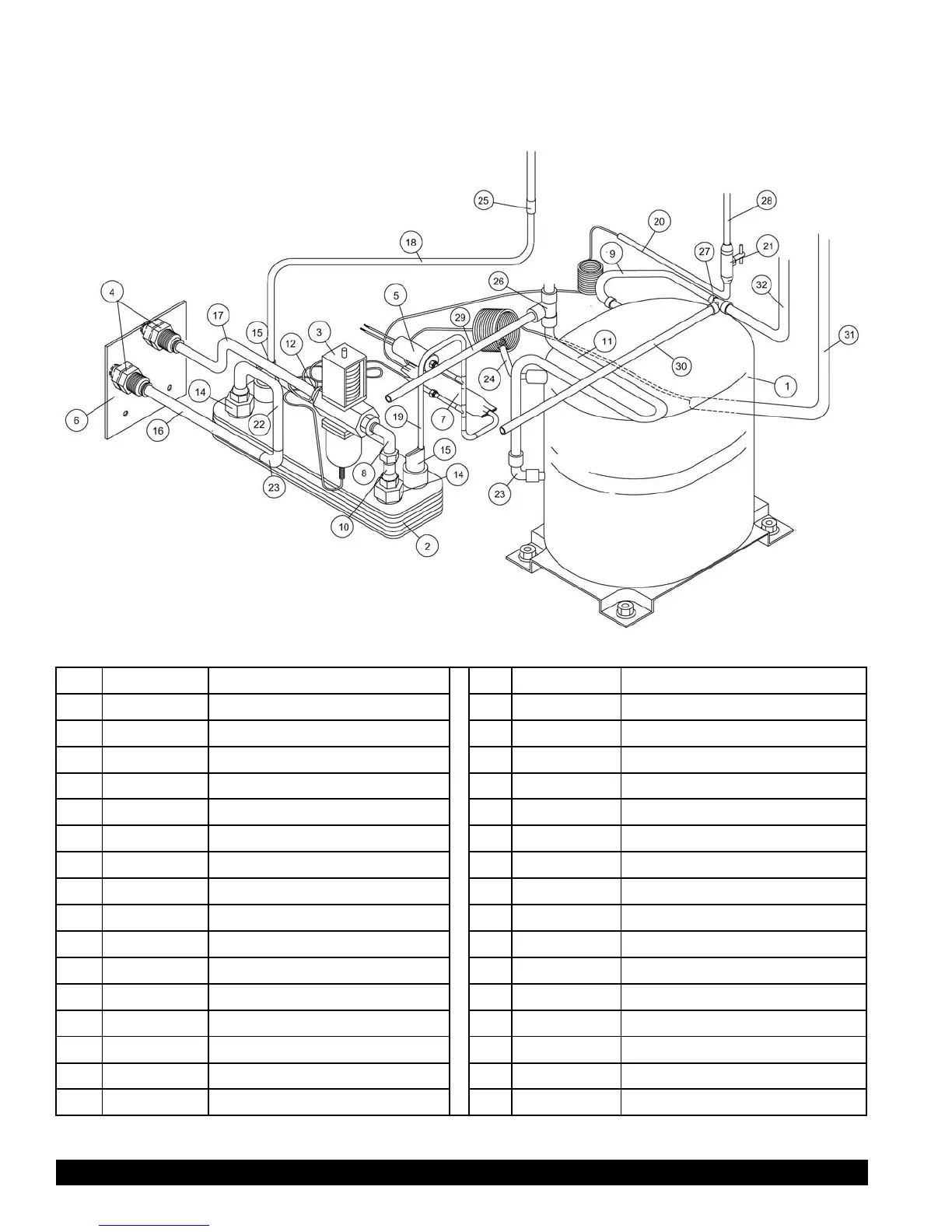

DONPER XF124 - Refrigeration - 115 V Water-Cooled Model

Page 34
Model 3311
XF124
Refrigeration
115V Water-Cooled Model
ITEM
PART NUMBER
DESCRIPTION
ITEM
PART NUMBER
DESCRIPTION
1
W0200123
COMPRESSOR
17
W0201166
WATER LINE
2
W0200250
CONDENSER, WATER COOLED
18
W0201167
COOLANT LINE
3
W0650602
WATER VALVE, 3/8 V-46 AA-1C
19
W0201162
COOLANT LINE ASSEMBLY
4
W0620031
BULKHEAD FITTING WITH JAM NUT
20
W0201133
COOLANT LINE
5
W1650401
HIGH PRESSURE CUT OUT
21
W0650416
NEEDLE VALVE
6
W0210051
WATER LINE SUPPORT BRACKET
22
W0201164
WATER LINE
7
W0200311
DRIER CAPILLARY TUBE ASSEMBLY
23
W0620112
3/8 X 3/8 COPPER SWEAT ELBOW
8
W0620031
90 DEG. ELBOW X 3/8 NPT & 3/8 FLARE
24
W0650501
ACCESS VALVE
9
W0201191
SUCTION LINE
25
W0620103
3/8” COPPER COUPLE
10
W0201169
WATER LINE
26
W0620114
3/8” COPPER TEE
11
W0201009
HOT GAS LINE
27
W0620106
1/2 X 3/8 X 3/8 COPPER TEE
12
W0620033
FITTING, 3/8 FLARE X 3/8 NPT
28
--------------
HOPPER COOLANT LINE
13
W0620101
1/4 COPPER SWEAT COUPLING
29
W0201006
HIGH SIDE PROCESS TUBE
14
W0620053
3/4 NPT X 38 FLARE FITTING
30
W0210008
LOW SIDE PROCESS TUBE
15
W0201250
CONDENSER CONNECTION
31
---------------
EVAPORATOR LINE
16
W0201165
WATER LINE
32
---------------
SUCTION LINE
