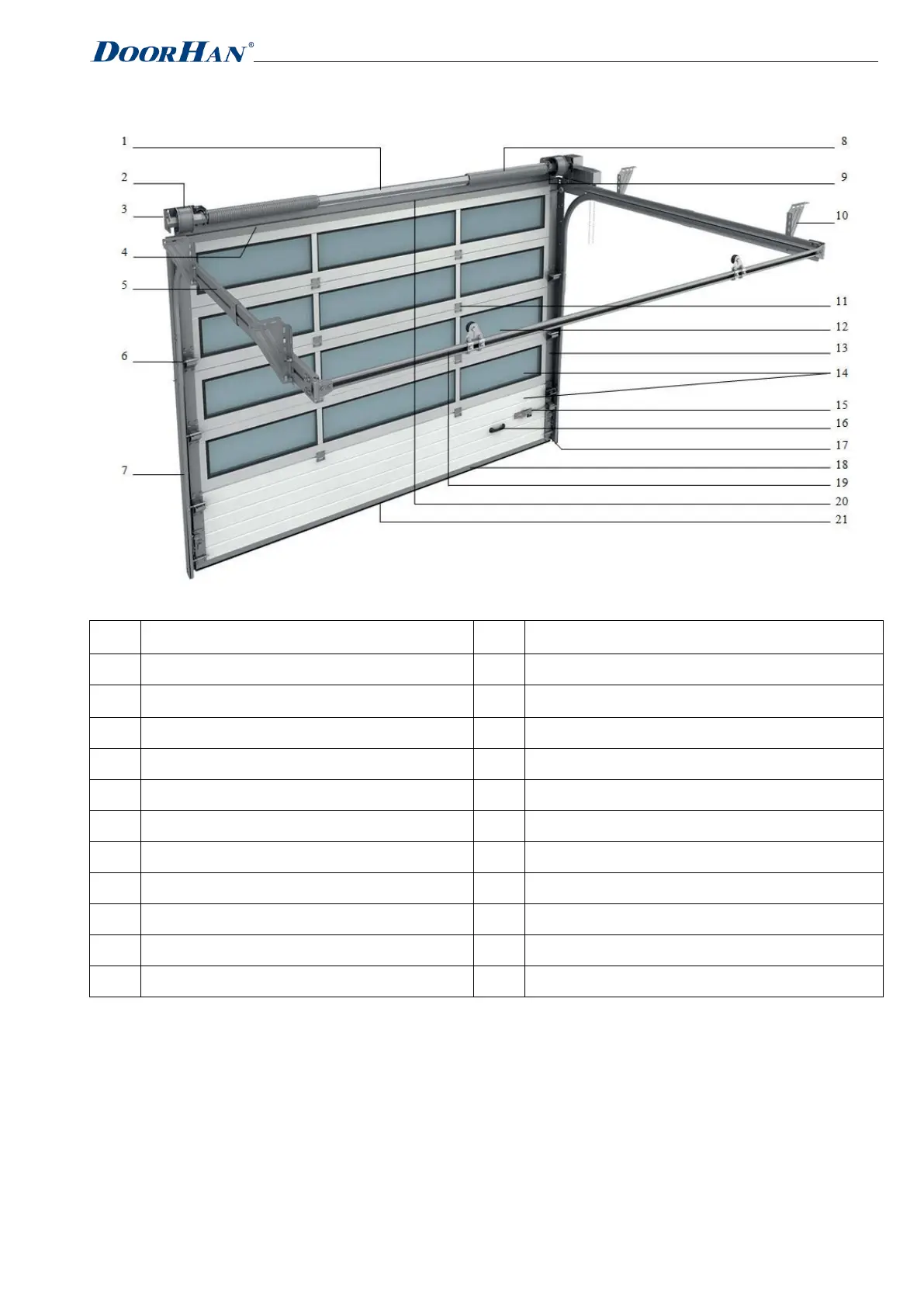

3.2.2. The door structure of the series ISD01, ISD02
Name
No.
Name
Shaft
12
Windows
Drums
13
Side caps
Terminal U-shaped support bracket
14
Sandwich panel / Panoramic panel
Top Aluminum profile
15
Lock *
Horizontal tracks
16
Handle
Side support with rollers
17
Bottom bracket
Guides
18
Bottom Aluminum profile
Balancing spring mechanism
19
C-profile
Spring safety device
20
Top seal
Ceiling mounting bracket
21
Bottom seal
Hinges *
___________________
* The presence/absence of a position as a part of the door due to the design feature of the door.
