INSTALLATION
Gate leaf opening angle А, mm В, mm С, mm D, mm
90°
180 200 100
1 010
120°
160 160 60
1 019
Gate leaf opening angle А, mm В, mm D, mm
90°
180 200
1 010

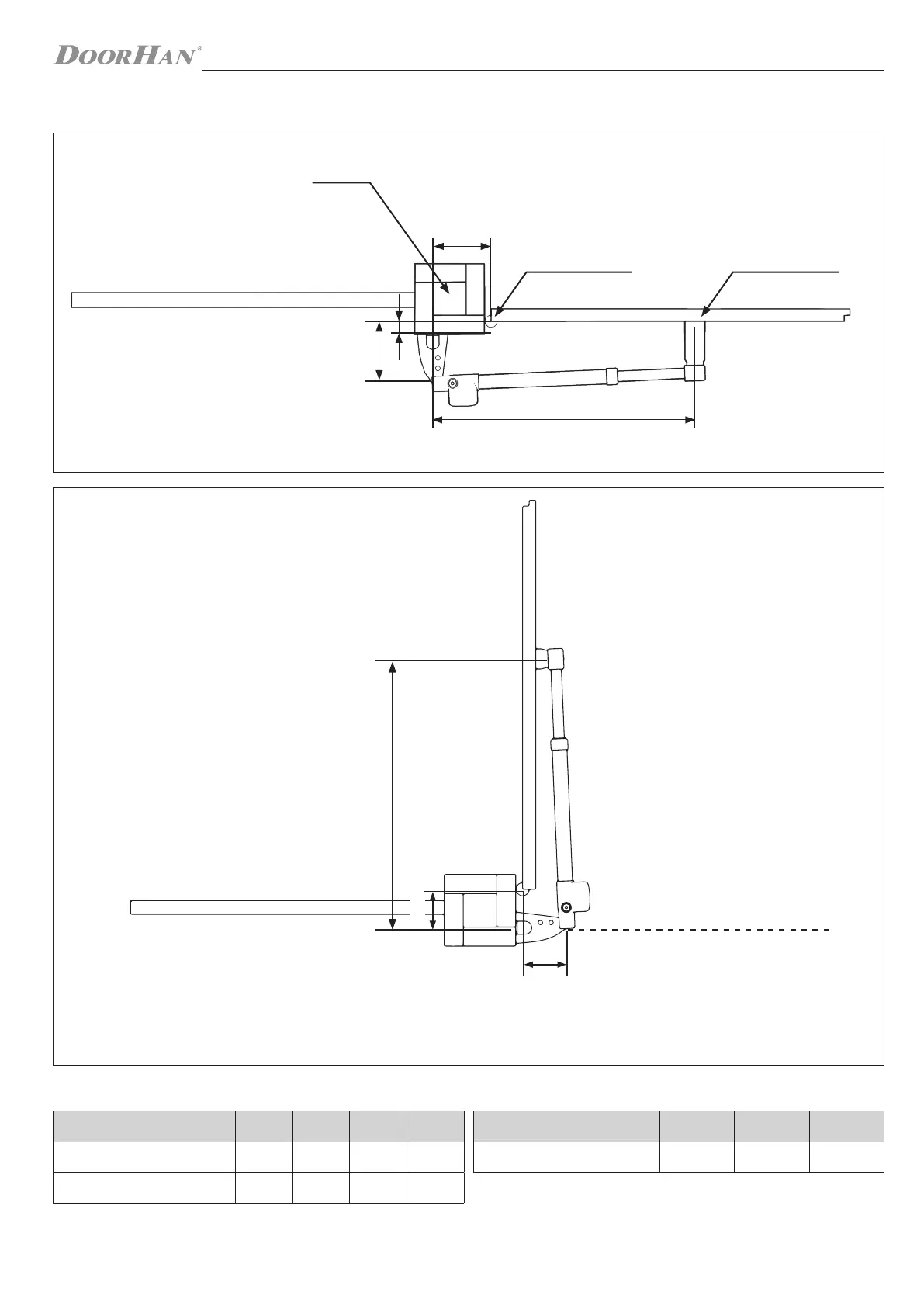

4.3.Installation dimensions
A
Column
B
C
D
Hinge
Gate leaf
(closed)
A
B
D
Outside property
Inside property
Opening inwards Opening outwards
