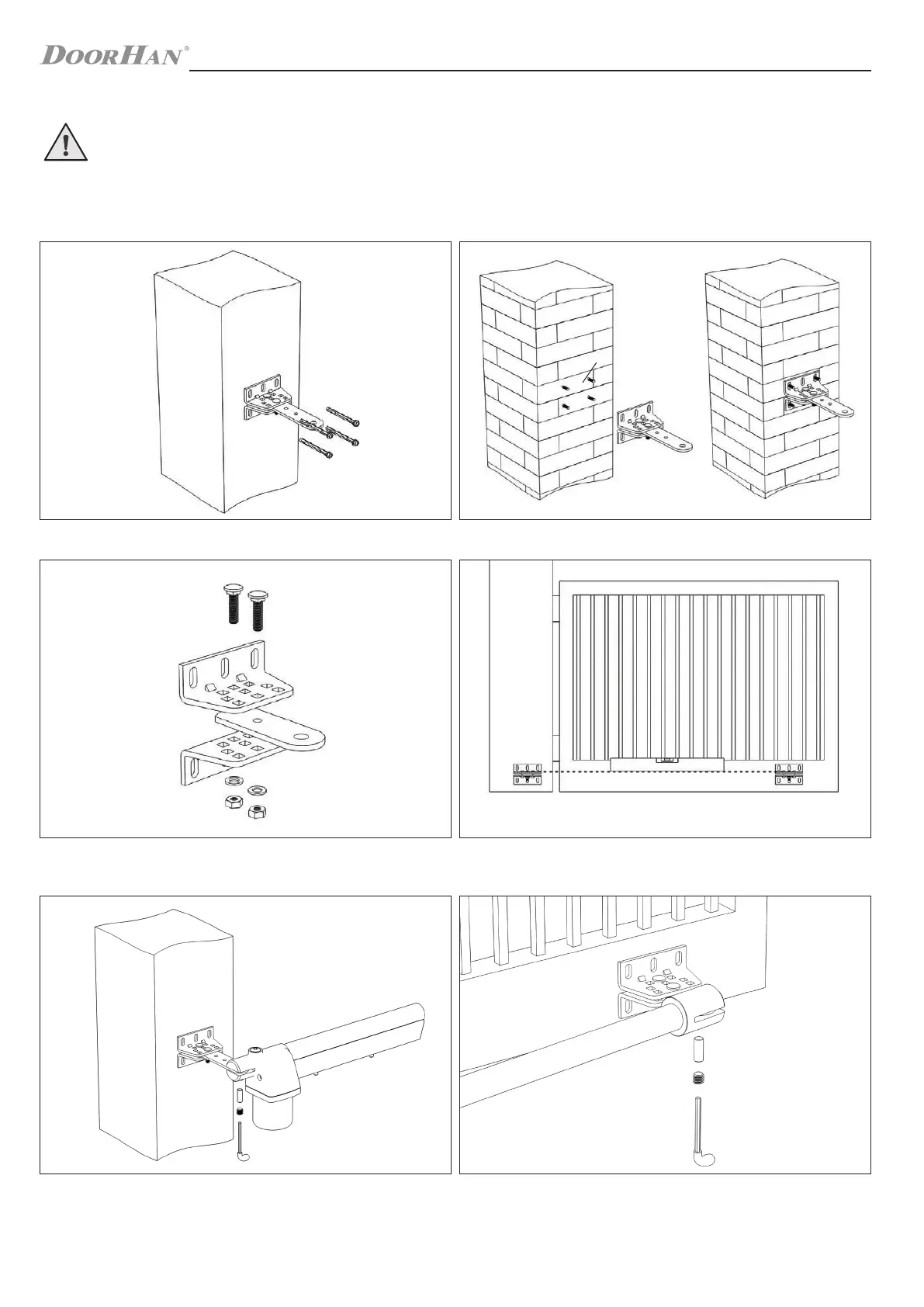

Fasten the rear bracket to the column with anchor bolts. When fastening to a brick column screw anchor bolts into the brick
body not in the mortar. Mounting methods are shown in the figures below.
4.4. Operator installation
WARNING! Before installing the operator verify the gate moves smoothly and there is enough space to securely attach
the operator to the column and gate leaf.
Concrete column
Fasten the front bracket to a gate leaf.
Brick column
When mounting the rear and front brackets, make sure they are on the
same level.
Fasten the sliding part of the operator to the front bracket.
Attach the operator. Fasten the operator to the rear bracket.
INSTALLATION
Pre-install a
steel bracket
