DoorKing 6006 - 6006 Specifications

6006-065-B-3-20
1
TABLE OF CONTENTS
6006 Specifications
Swing Gate Requirements
ASTM F2200 Standard for Gate Construction
Important Safety Instructions
Instructions regarding intended installation:
Important Notices
UL 325 Entrapment Protection
Glossary
1
2-3
4
4
4
5
6
7
INSTALLATION
8
9
9
10
10
11
12
13
13
14-15
16
17
Manual Release
90° Layout “Opening to the INSIDE”
90° Layout “Opening to the OUTSIDE”
Operator Mounting Options
Mounting Operator
Mounting 115 VAC Control Box
Mounting Solar Control Box
Install Warning Signs
In-Ground Loops
Entrapment Protection Locations
Accessory Items
6006 Primary/Secondary 4302 Circuit Board Connection
Quick Guide for 6006 Limit Sensors
18
For installers familiar with DoorKing products
DoorKing, Inc. reserves the right to make changes in the products described in this manual without notice and without obligation of DoorKing, Inc. to notify any persons
of any such revisions or changes. Additionally, DoorKing, Inc. makes no representations or warranties with respect to this manual. This manual is copyrighted, all rights
reserved. No portion of this manual may be copied, reproduced, translated, or reduced to any electronic medium without prior written consent from DoorKing, Inc.

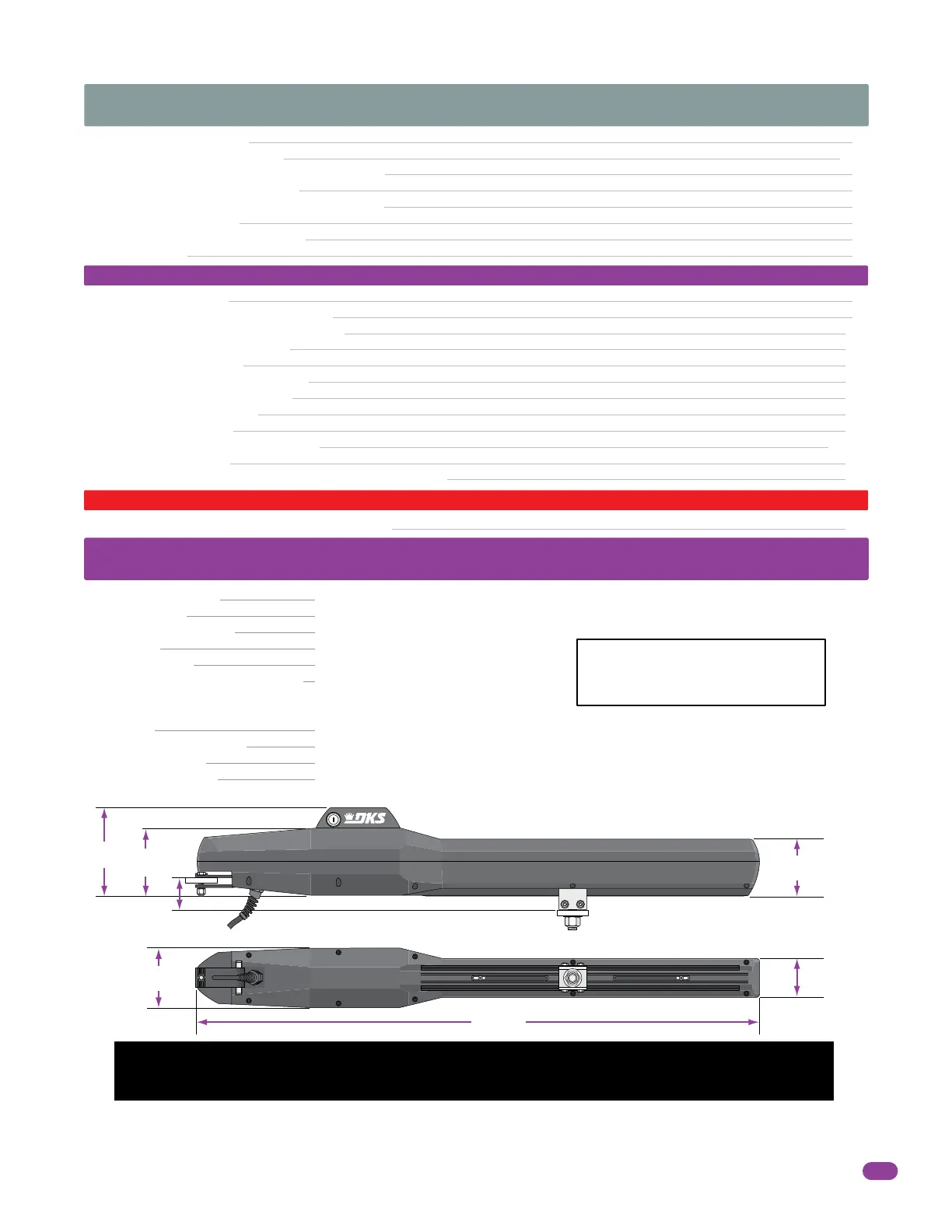

Bottom View
Side View
4”
(10.1 cm)
4”
(10.1 cm)
6.25”
(15.8 cm)
40”
(101.6 cm)
Entrapment Protection must be provided for the gate system where the risk of entrapment or obstruction exists.
The operator will not run without one or more monitored type B1 or B2 entrapment protection devices in EACH
entrapment area.
Class of Operation Model 6006 - UL 325 Class I and Class II
Type of Gate Vehicular Swing Gates Only
Actuator Arm Voltage 24 VDC
Current 4.8 Amps
Rated Torque .56 N
Gate Maximums (Weight/Length) 1600 lbs (725.7 kg) / 8 ft (243.8 cm)
800 lbs (362.8 kg) / 16 ft (487.6 cm)
600 lbs (272.1 kg) / 18 ft (548.6 cm)
Speed 90° in 18-20 sec
Operating Temperature -4°F / 131°F
Cycles Per Hour Approx. 25 Per Hour with AC connected (Cycles will vary with battery power ONLY)
Control Box Types • 115 VAC 60 Hz Single Phase Input Power - 24 VDC Output Power to Gate Operators
• 24 Volt Solar Input Power - 24 VDC Output Power to Gate Operators
6006 SPECIFICATIONS
Type of wiring to be used on ALL external devices:
A) Type CL2, CL2P, CL2R, or CL2X.
B) Other cable with equivalent or better electrical,
mechanical, and flammability ratings.
2.25” (5.7 cm)
2.7”
(6.8 cm)
Brackets Offset
4.8”
(12.1 cm)
