Power Train Disassembly & Assembly
4. Use a brass drift to install the anchor pin. If
necessary, align the flat or groove on the pin with
the holes in the spider and bushing.
5. Install the anchor pin washers. felts, seals,
retainers and snap rings as required. If required,
install the lock pins or lock screws and tighten the
screws to 10 ~ 15 lb•ft (13.6 ~ 20.3 N•m).
6. Install a new shoe return spring on the brake
shoes. Put the upper shoe in position over the
spider and repeat steps 4 and 5 above.
Manual Slack Adjusters
If the clevis was not replaced, install new clevis pins.
Apply rust preventive grease to the pins before
installation.

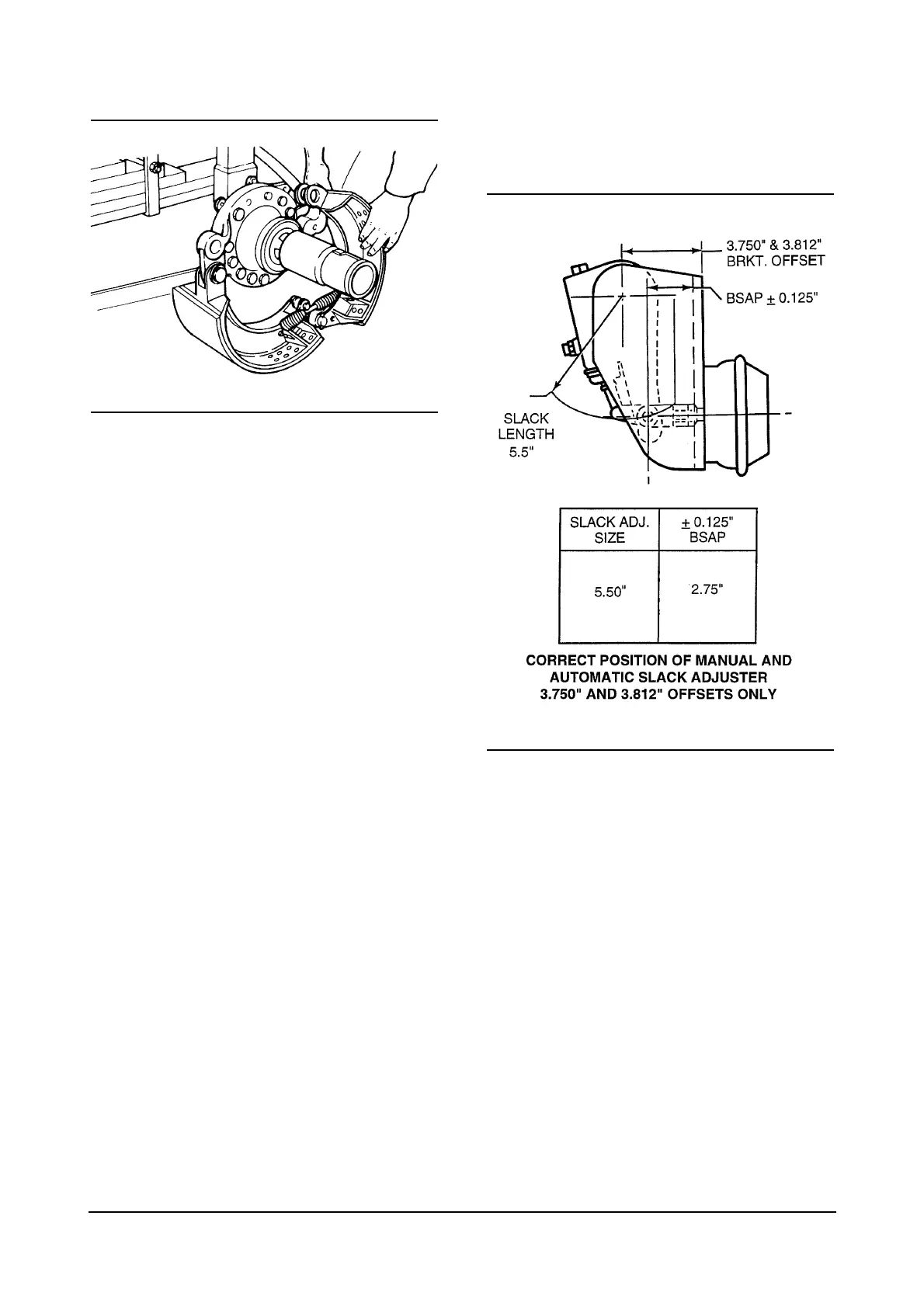

Brake Slack Adjuster Position
(BSAP)
When you install manual slack adjuster, verify that
the BSAP matches the chart in the Figure above.
66
