Vehicle System Specification 15

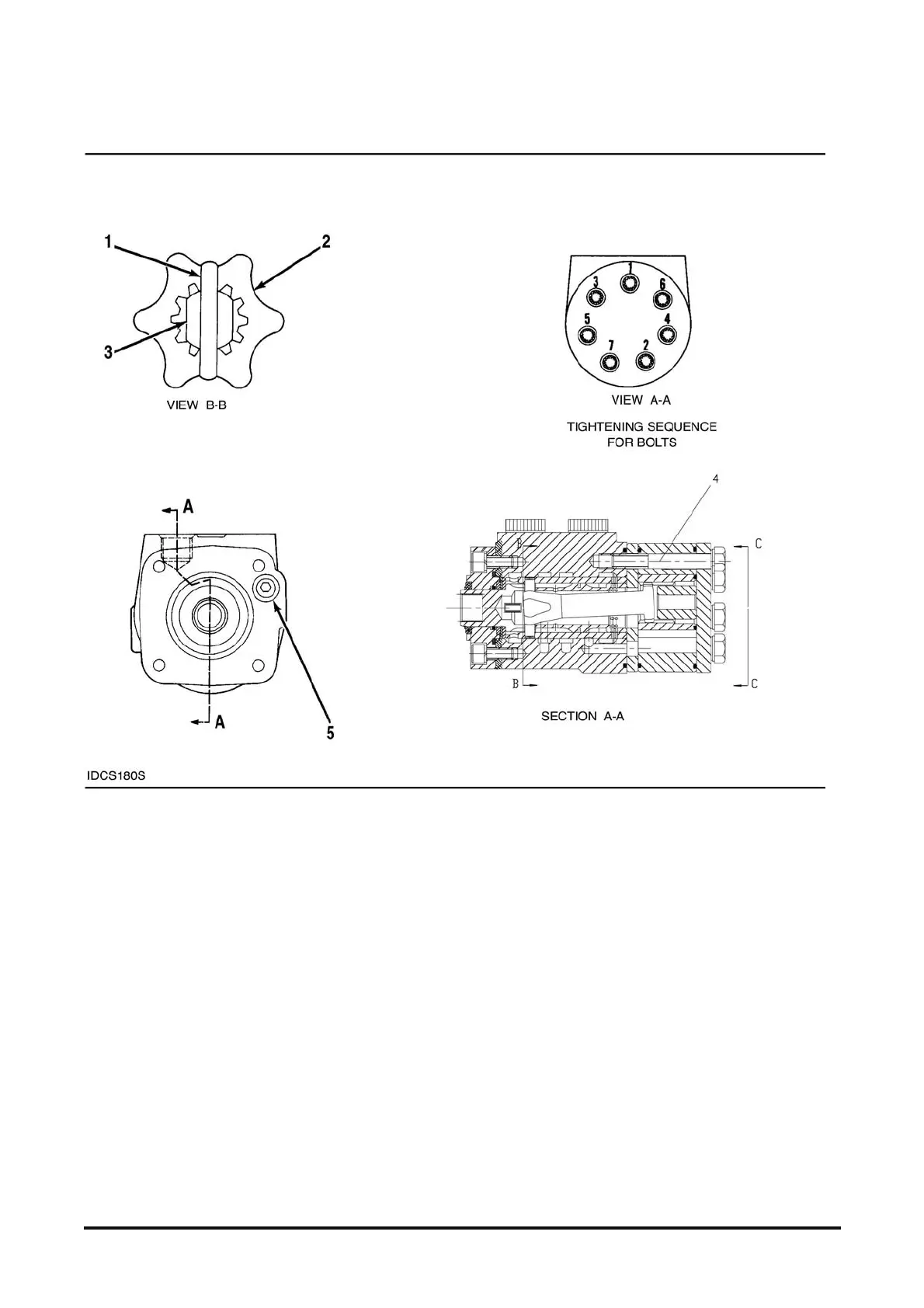

Steering Gear
(1) Pin (1) in the body must be aligned with internal
pump gear (gerotor) (2) and drive (3) as shown.
(4) Tighten bolts in sequence shown. Tighten to a
first torque of ................................14.1±2.8 N·m
(125±25 lb·in)
Tighten to a final torque of ............28.2±2.8 N·m
(250±25 lb·in)
(5) Torque for plug....................11.3 N·m (100 lb·in)
Plug to be flush (even) with or below mounting
surface.
