Doosan D50C-5 Disassembly/Assembly

Vehicle Systems Disassembly & Assembly 9

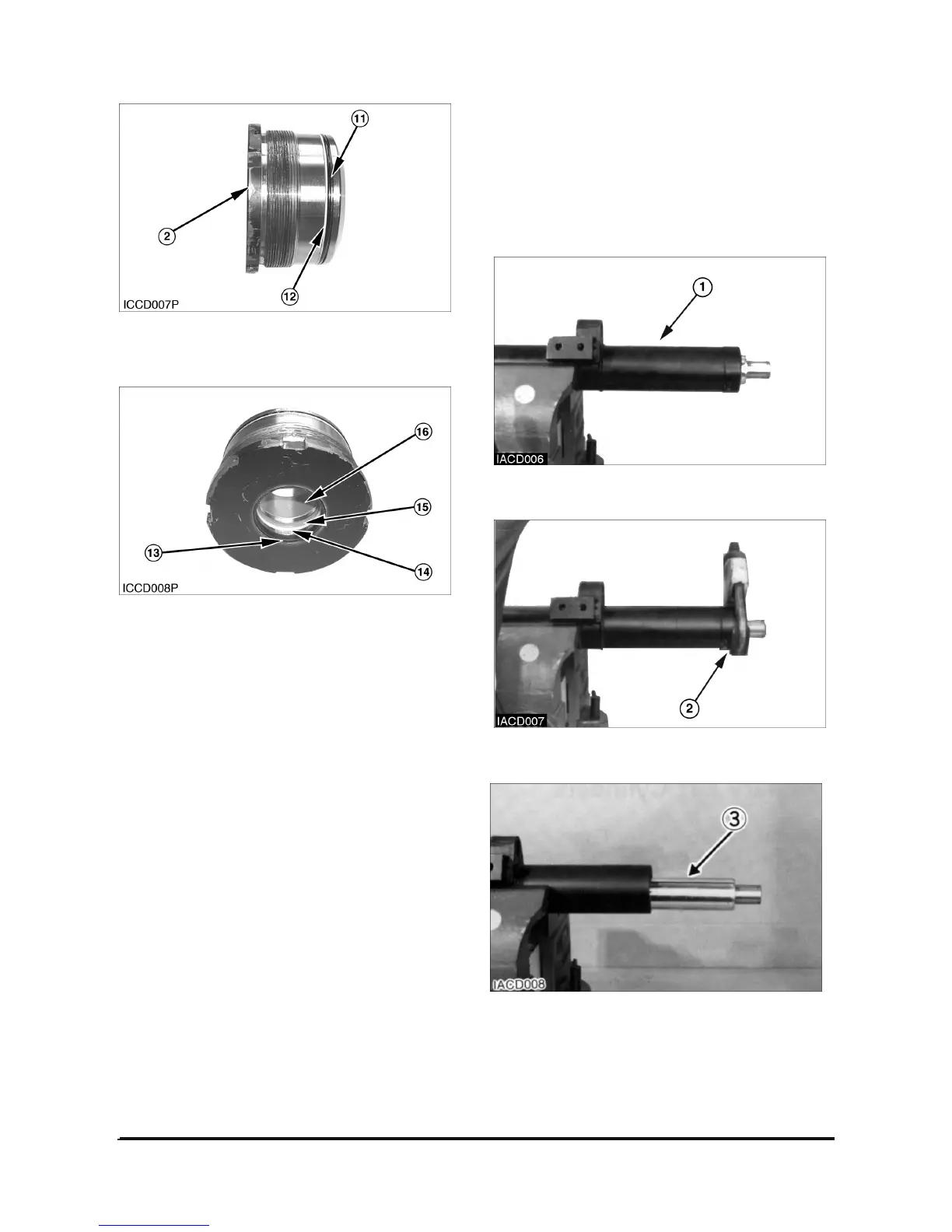

8. Remove O-ring seal (11) and backup ring (12)
from the rod cover (2).
9. Remove wiper seal (13), backup ring (14), U-
packing (15) and DU-bush (16) from the rod cover.
NOTE: Assemble the tilt cylinder in the reverse
order of disassembly.
Secondary Lift Cylinders
Disassemble Secondary Lift Cylinders
Start By :
a. Remove secondary lift cylinders.
1. Put secondary lift cylinder (1) in position as shown.
2. Remove head assembly (2) with tool.
3. Remove rod (3) from the cylinder body.
