Brake Hydraulic Booster
Remove and Install Brake Hydraulic
Booster
Flow Control Valve
Brake Booster

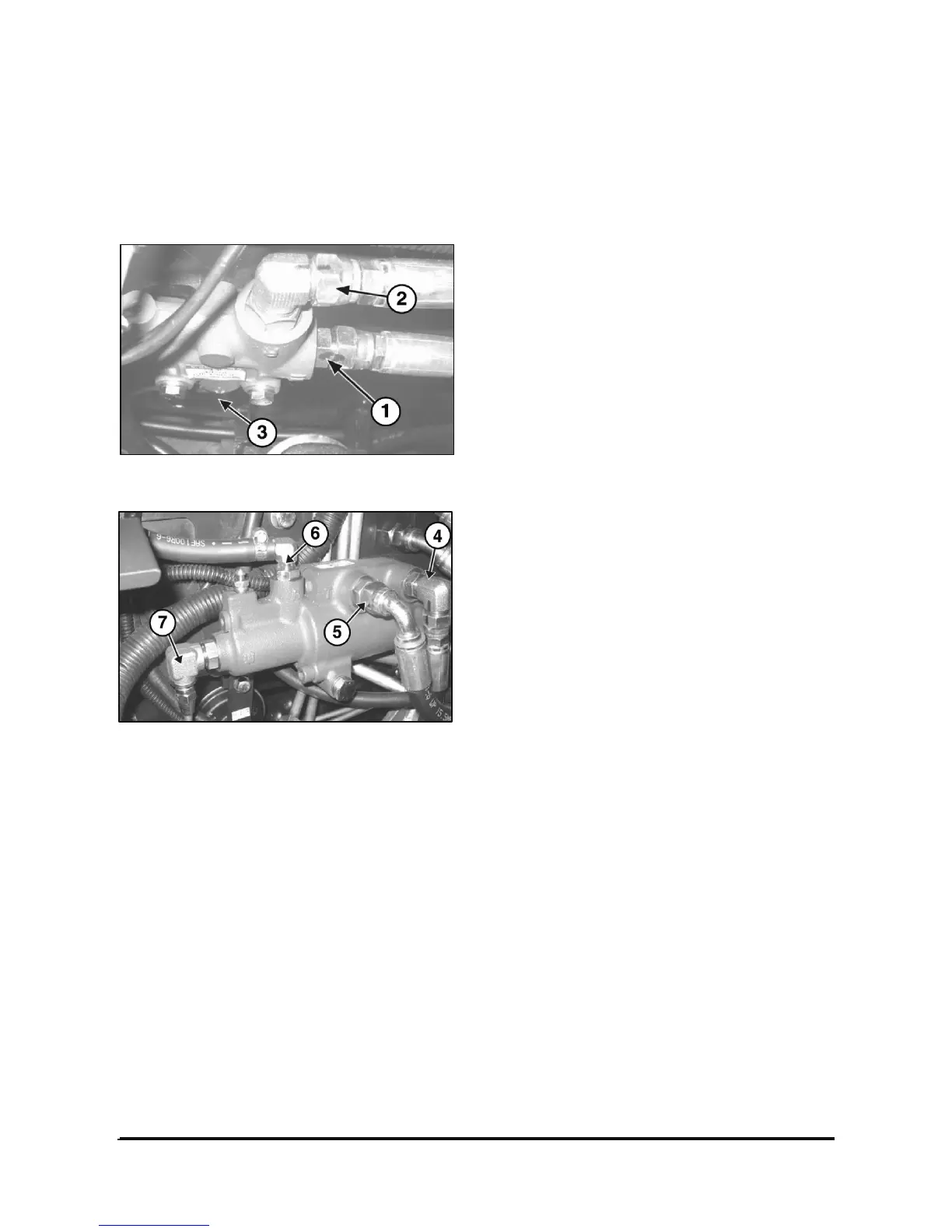

1. Remove the floor plate.
2. Disconnect pressure line (1).
3. Disconnect the line from Flow contol valve to
Booster (2).
4. Disconnect return line (3).
5. Disconnect pressure line (4).
6. Disconnect return line (5) and brake reservoir line
(6).
7. Disconnect brake line (7).
NOTE: The following steps are for installation of the
brake master cylinder.
1. Installation is the reverse order of removal. Be
sure to check the leakage between the
connections.
2. Remove the air (bleed the brake lines). See the
topic of Brake System Air Removal.
3. Install the floor plate over the brake hydraulic
booster.
