Vehicle Systems Disassembly & Assembly 5
1
Disassembly & Assembly
Hood (with seat)

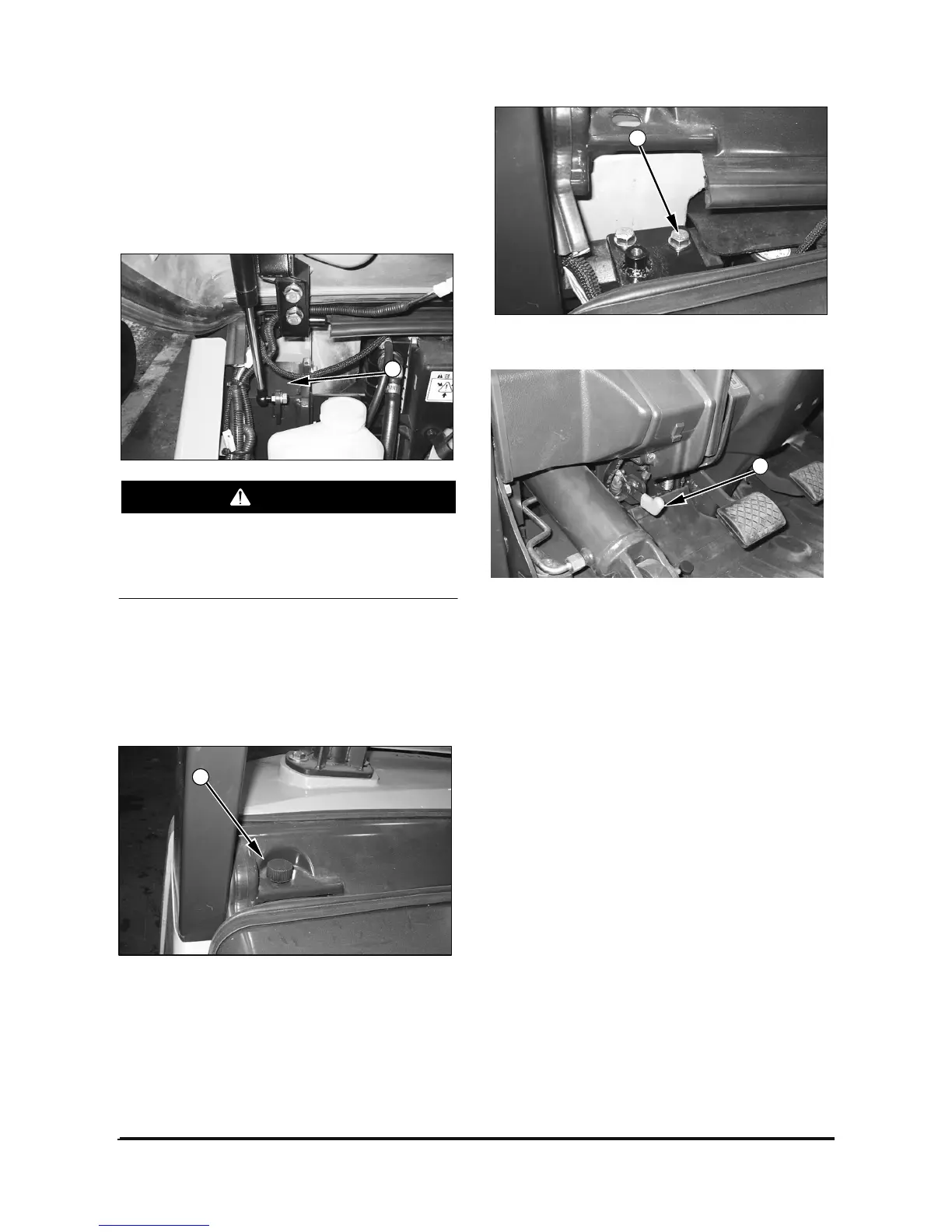

Remove & Install Hood (with seat)
Assembly
The hood and seat assembly can fall when nut
(1) is removed from the support cylinder rod. To
avoid personal injury, support the seat and hood
assembly before removing nut (1).
1. Raise the hood. Support the hood with a hoist.
2. Remove nut (1) from the support cylinder.
Remove the cylinder rod from the bracket.
3. Lower the hood.
4. Remove the bolts (2) from the cover. Remove
cover.
5. Remove the washers and four bolts (3).
6. Release latch (4). Use the hoist to remove hood
and seat assembly. The hood and seat assembly
weighs approximately 52 kg (115 lb).
7. Install the hood and seat assembly in the reverse
order of removal.
WARNING
2
3
4
To Next Page
