DL06K Interim Tire-4 Diesel Engine Disassembly and Reassembly of Major Components
88

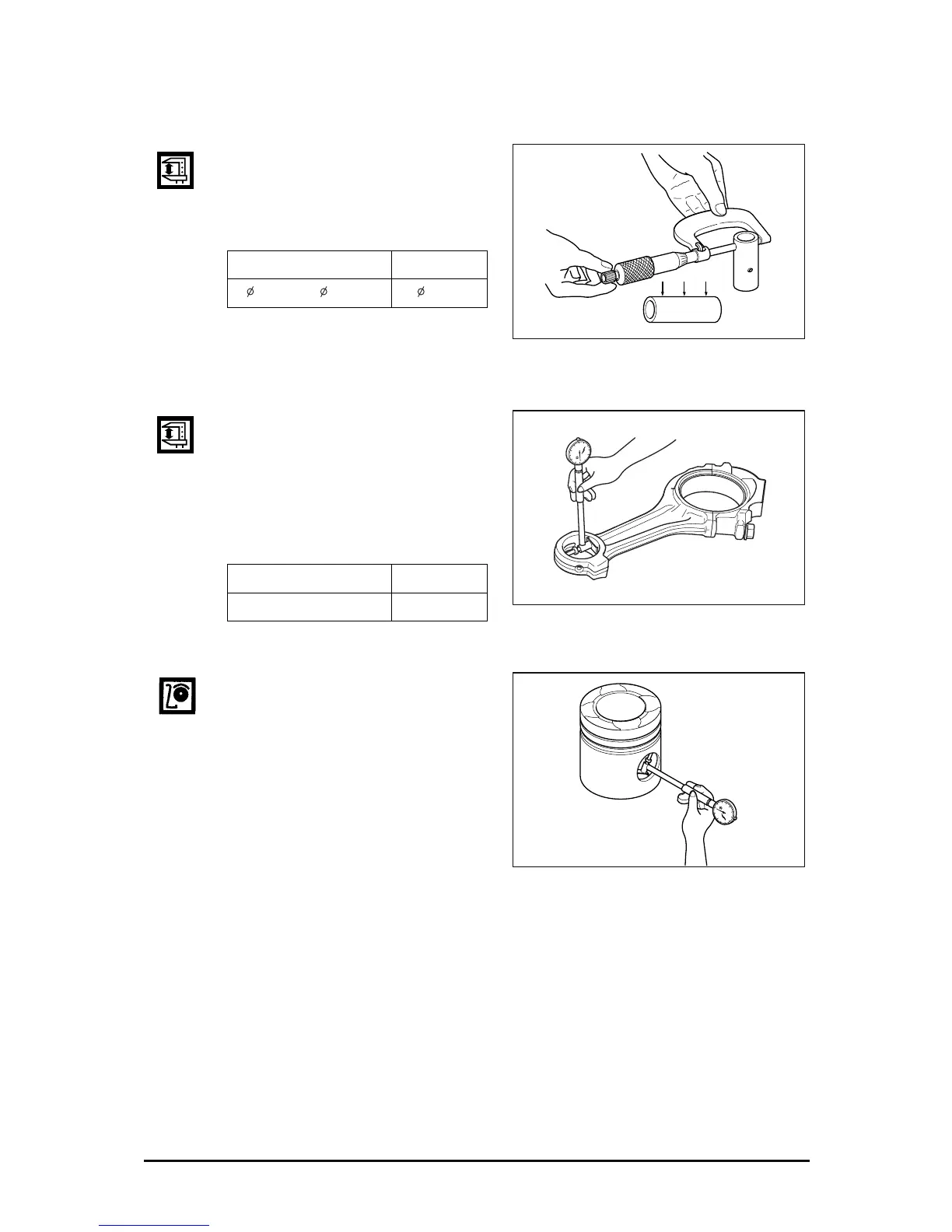

3) Piston pin inspection
z The measured values are beyond the
limit (0.08 mm or greater), replace the
piston pin.
(mm)
z Measure the clearance between the
piston pin and connecting rod bushing,
and replace either of them, whichever
damaged more, if the measured value
is beyond the limit.
(mm)
z When replacing the piston, be sure to
replace the piston pin together.
Piston pin Standard Limit
39.994 ~ 40.000 39.94
Standard Limit
0.008 ~ 0.020 0.08
EA0M4031
EH6OM067
EH8OM008
