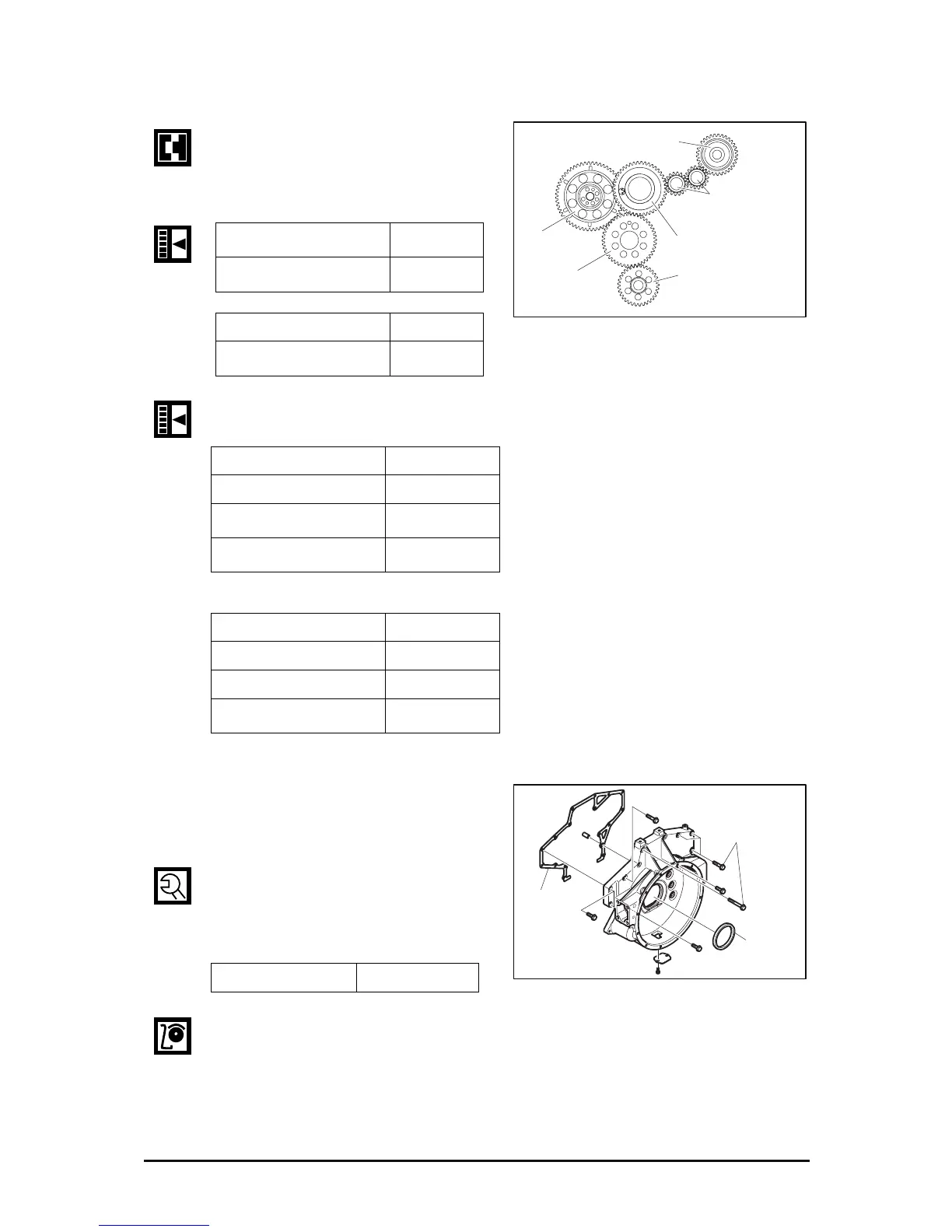

DL06K Interim Tire-4 Diesel Engine Disassembly and Reassembly of Major Components
95
z Install the idle gear by adjusting it to
the crankshaft gear, camshaft gear,
and idle gear mark.
< Gear mark >
z Check backlash and end play amount of the gear, using the clearance gauge.
< Backlash
> (mm)
< End play >
(mm)
3.3.10. Flywheel housing
z Install a guide bar on the cylinder
block temporarily.
z Attach the gasket to the cylinder block.
z Assemble the flywheel housing using
dowel pins and guide bar, and tighten
fixing bolts in tightening order with the
pre-defined torque.
z Remove the guide bar after tightening the bolt.
z Apply engine oil on the outside surface of the oil seal thinly, and push the press
into the housing.
z Assembly tool item number : EF.121-300
Crankshaft gear
and idle gear (A)
"0" and "0"
Camshaft gear
and idle gear (B)
"1" and "1"
Stem idle gear 6.2 kgf•m
Fuel high pressure
pump idle gear
6.2 kgf•m
Measurement position Standard
Camshaft gear and idle gear 0.074 ~ 0.163
Fuel high pressure pump
gear and idle gear
0.103 ~ 0.182
Crankshaft gear and oil
pump driving gear
0.073 ~ 0.239
Measurement position Standard
Camshaft gear 0.280 ~ 0.430
Stem idle gear 0.107 ~ 0.183
Fuel high pressure
pump idle gear
0.078 ~ 0.140
Torque 11.2 kgf•m
EK4OM076
Camshaft gear
Fuel high pressure
pump gear
Oil pump gear
Crankshaft gear
Idle gear(A, B)
Fuel high pressure
pump idle gear
EK4OM018
Gasket
Fixing bolt
Oil seal
