OP001013
2-9

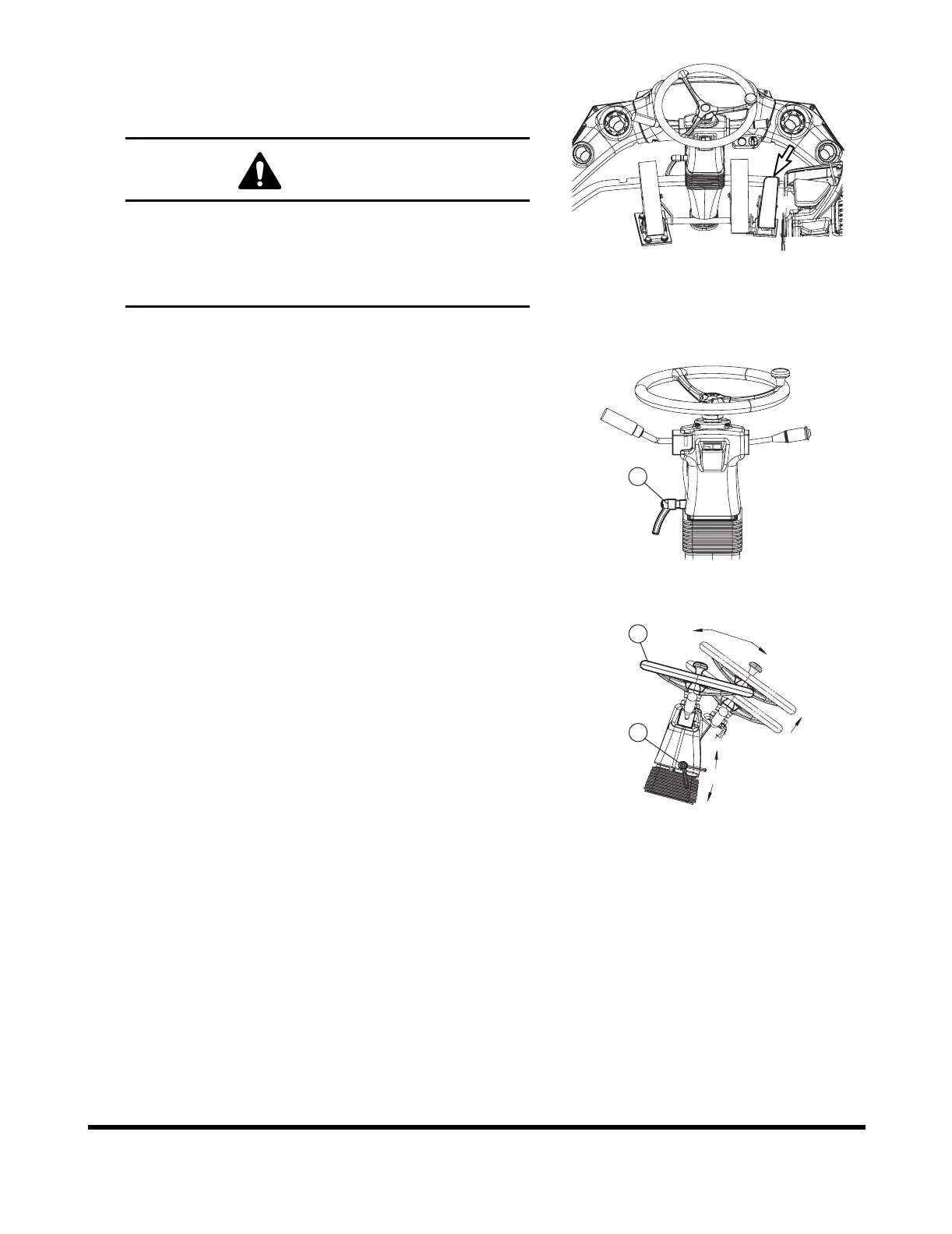

Operating Controls
4. Accelerator Pedal
Controls the travel speed of loader and working speed of
load handling system.
5. Steering Wheel Adjustment Lever
Control lever (1, Figure 11) is used allow wheel to be
moved to the most convenient position for the operator.
Adjusting Steering Wheel Tilt
Pull lever (1, Figure 12) upward and move wheel (2, Figure
13) to desired position. Push lever down (Tilt angle is 21°).
Adjusting Steering Wheel Telescopic
Pull lever (1, Figure 12) upward and move wheel (2, Figure
12) to desired position. Push lever down (telescopic stroke
is 80 mm)
FG003937
Figure 10
CAUTION
The further the pedal is pressed, the more engine
speed increases. However, do not press the pedal
more than necessary; otherwise it will increase fuel
consumption, cause short life on the engine, and in
the worst case lead to a serious accident.
1
FG003887
Figure 11
1
2
FG003888
RELEASE
LOCK
Figure 12
To Next Page
