OP001013Operating Controls
2-12

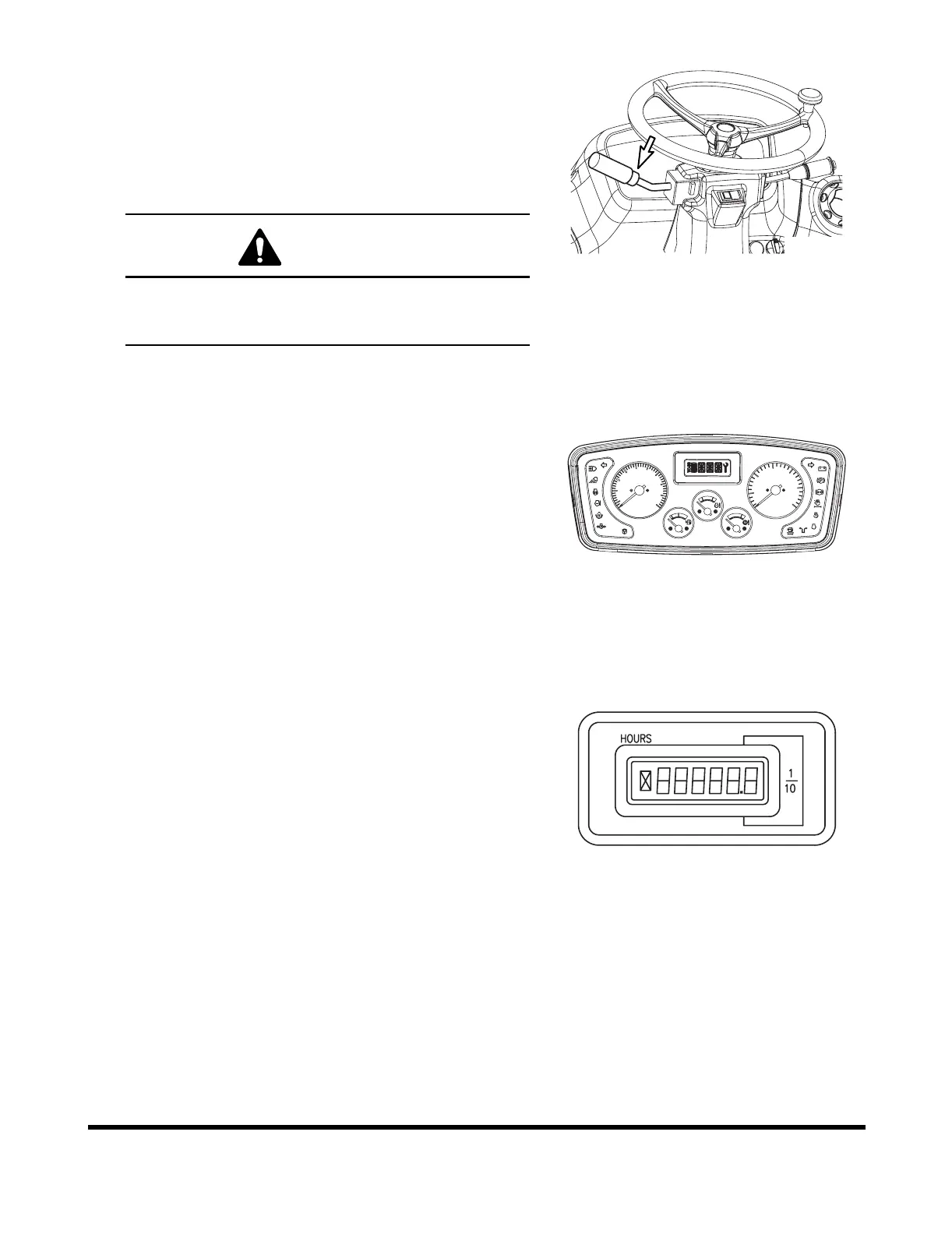

A transmission neutral lever lock is in base of transmission
lever. This neutral lever lock prevents the transmission
lever from being moved out of "NEUTRAL."
N "NEUTRAL LOCK" position. Prevents lever from
being moved out of "NEUTRAL."
D "DRIVE" position. Allows lever to be moved from
"NEUTRAL" to "FORWARD and REVERSE."
10. Front Instrument Panel
See “Front Instrument Panel” on page 2-14.
11. Hour Meter
A LCD Meter that records total time. When engine is
running, the hourglass icon blinks every four seconds. This
shows that the hour meter is working.
FG003943
Figure 19
CAUTION
"LOCK" transmission lever. Whenever machine is
parked, "LOCK" transmission lever in "NEUTRAL" to
prevent accidental machine movement.
F/R
20
0
10
50
km/h
30
40
0
10
5
x100r/min
30
15
20
25
STOP
FG015578
Figure 20
FG004112
Figure 21
