OP001013
2-11
Operating Controls

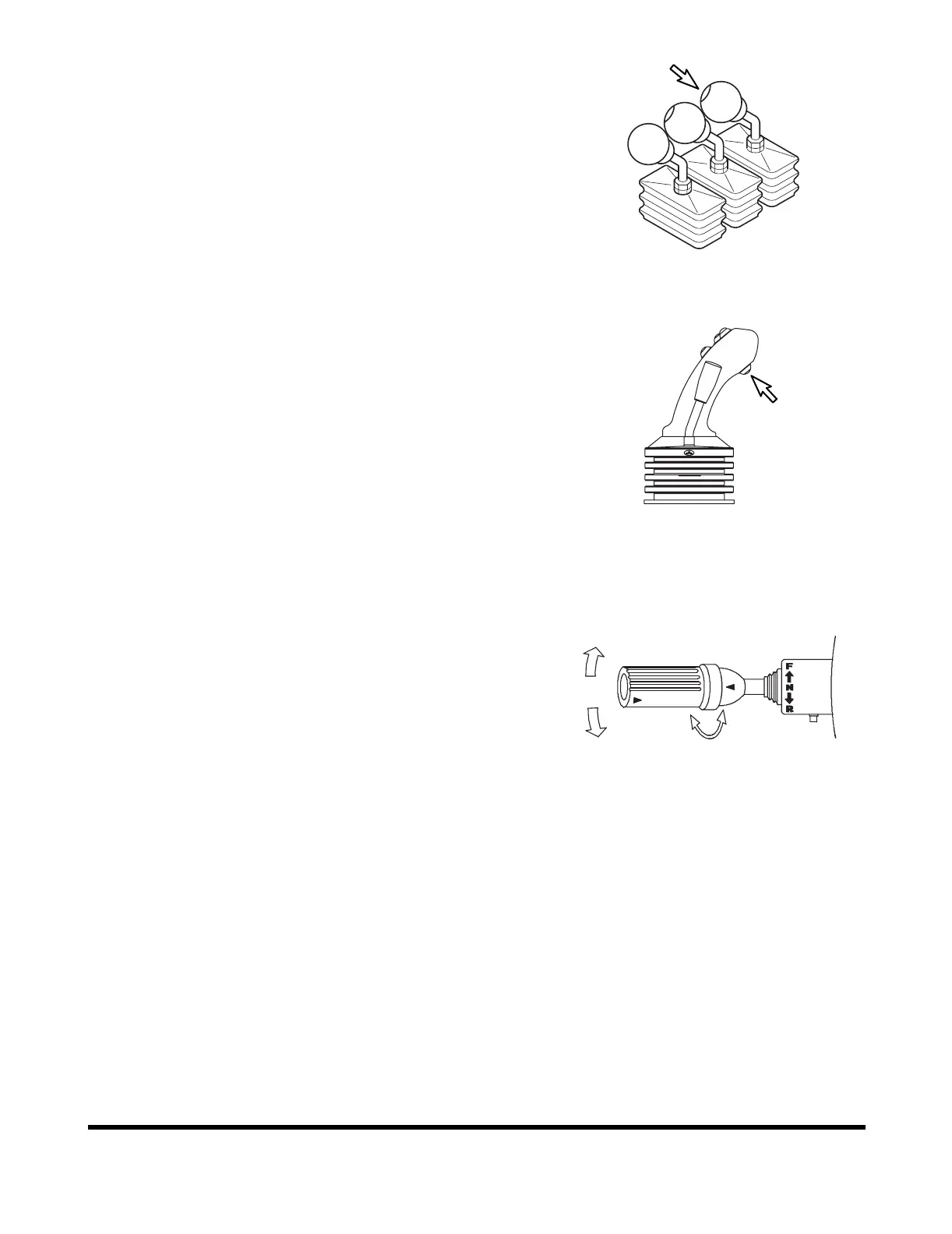

A second kick-down switch (Figure 16) is on the right
button in the tip of the pilot control valve lever (joystick)
(Right one of two levers).
9. Transmission Lever
F Forward - When the lever is pushed forward,
transmission is in "FORWARD." 1st, 2nd, 3rd and 4th
are available.
N Neutral - When the lever is returned to the center
position, between forward and reverse, the
transmission is in "NEUTRAL."
R Reverse - When the lever is pulled back,
transmission is in "REVERSE" 1st, 2nd and 3rd are
available.
Rotating the switch shifts transmission between 1st, 2nd,
3rd or 4th gears.
NOTE: There is a transmission display, on the dash,
that indicates, gears, direction of travel, error
codes and kick-down activation. (See page
2-15)
FG003940
Figure 16
FG003936
Figure 17
Figure 18
R
N
F
2
3
1
HAAA3680
