Doosan DP222LBF - Wiring Diagram; Specification; Performance

11. Electric system
175

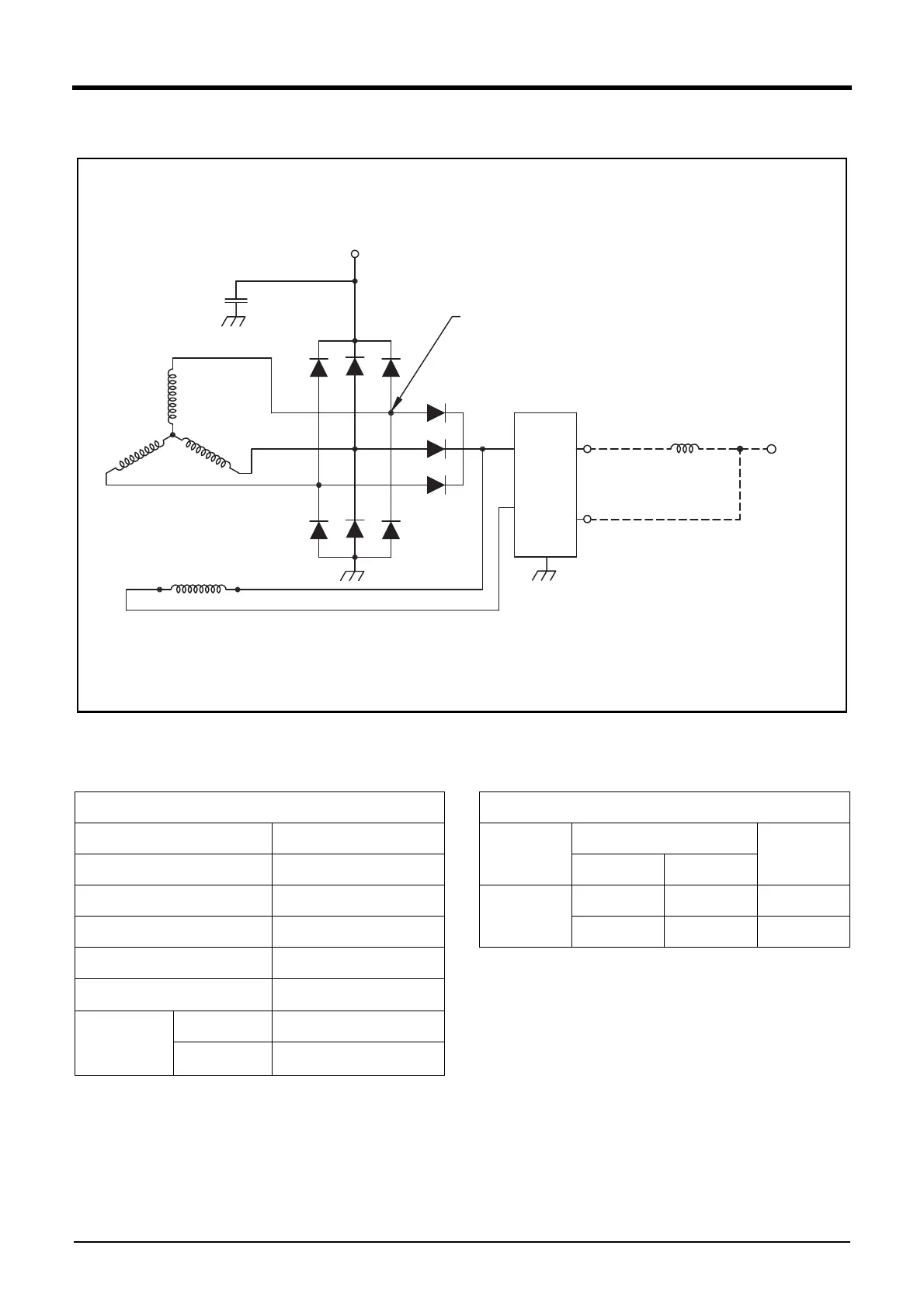

Wiring Diagram
DV2213138A
Specification Performance
0.5
MFD
B+
P Termianl
Regulator
R
L
B+
R = 150~250 OHM
L
Specification
Rating Continuous rating
Rotation Direction Clockwise
Battery Voltage 24V
Turn on Rpm Max. 1,050 RPM
Speed in Use 1,000 ~ 8,000 RPM
Max. Inlet Air Temp
105°C
Polarity
Set. Volt. 27.5V
Temp. Grad
10±3mV/°C
Performance
Voltage
(V)
Output current (A)
Speed
(RPM)
COLD HOT
27.5V
(22) 17.5 1,800
(48) 45 5,000
