Doosan DP222LBF - Exterior View Drawing of the Engine; Front;Rear(Dp158 L)

3. Performance and specifications
29

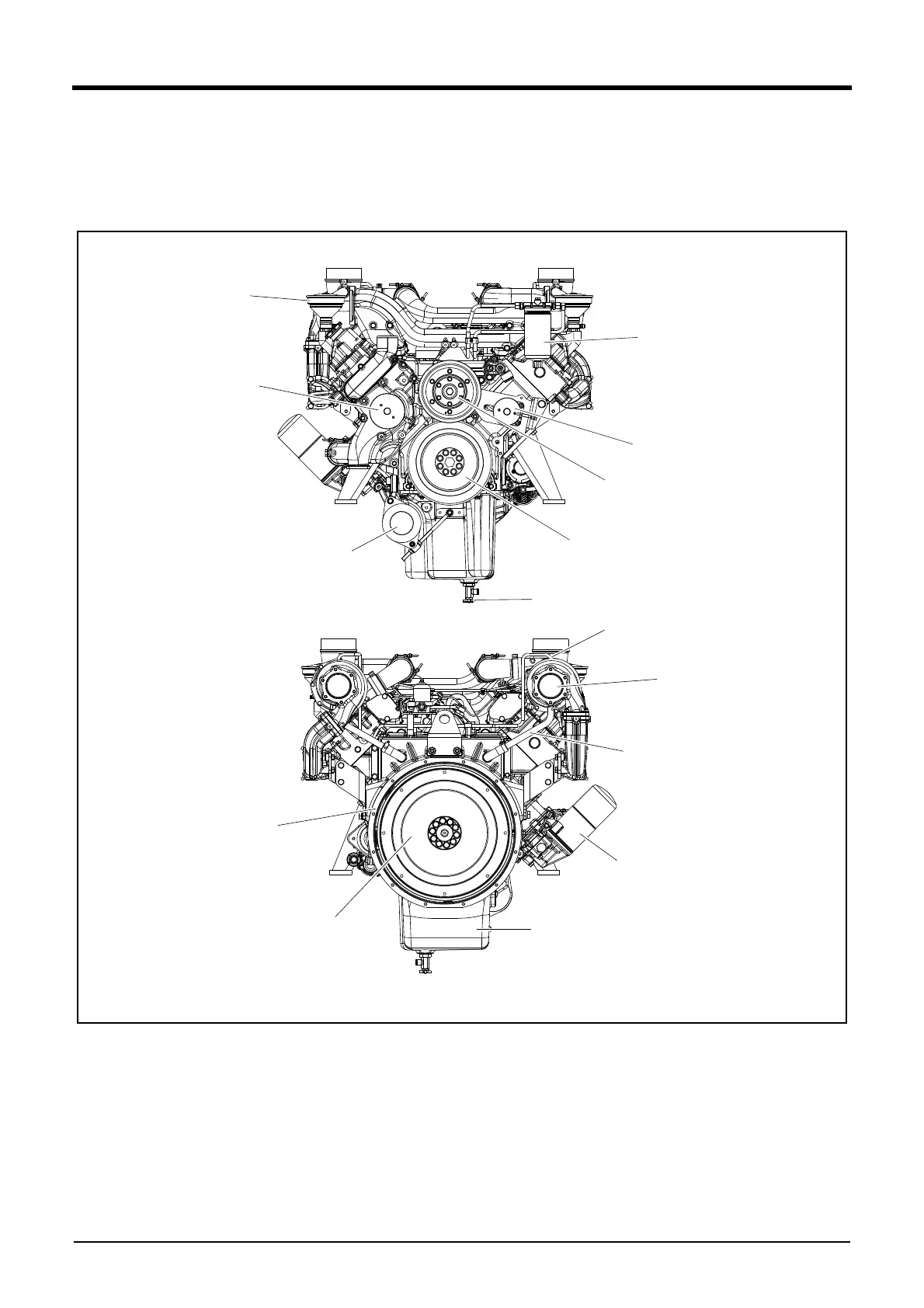

Exterior view drawing of the engine
Note) The images shown represent the standard model; they do not include all models.
Front/Rear(DP158L)
DV2213001A
1. Fuel Filter 6. Crankshaft Pulley 11. Engine Oil Supply Pipe
2. Breather 7. Cooling Fan Pulley 12. Flywheel Housing
3. Coolant Pump 8. Idle Pulley 13. Flywheel
4. Alternator 9. Engine Oil Return Pipe 14. Oil Pan
5. Engine Oil Drain Plug 10. Turbocharger 15. Oil Filter
1
2
3
4
5
6
7
8
9
10
11
15
14
13
12
