5. About the engine
82

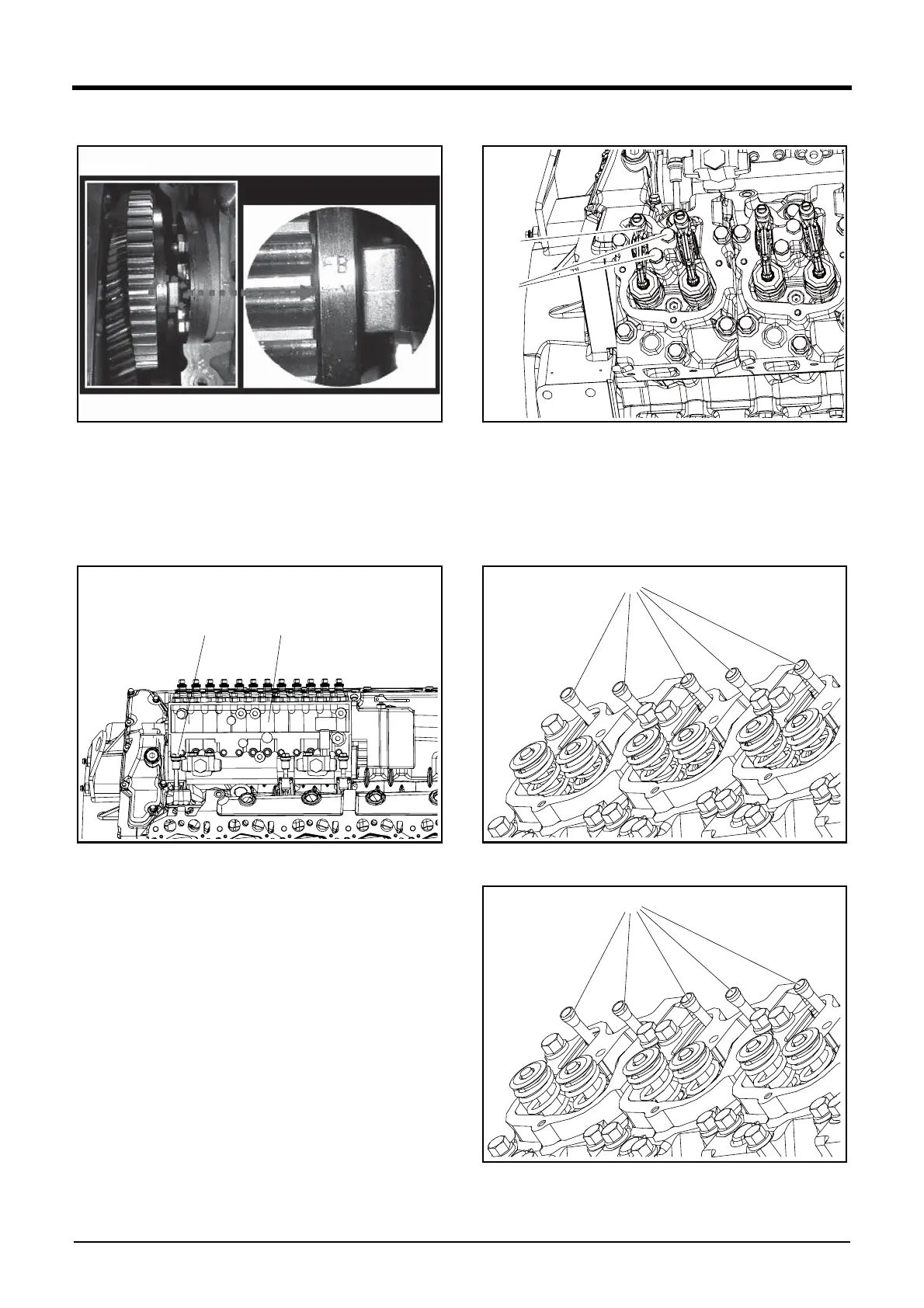

27. Align the fuel injection pump pointer.
DV2213171A
1) Rotate the flywhee to the eingine rotation direction.
2) The injection timing pointer marking on the fuel injection
punmp driven gear is aligned with marking on the cylin-
drical surface.
28. Remove the fuel injection pump.
DV2213072A
1) Loosen 6 fixing bolts(A).
2) Remove the fuel injection pump(B).
29. Remove the rocker arm assembly.
DV2213075A
1) Loosen the fixing bolts(A).
2) Remove the rocker arm assembly(B).
3) Remove 12 rocker arm assemblies as the same proce-
dure.
30. Remove the push rods.
DV2213076A
EDV2218002
1) Remove 24 push rods(A).
To Next Page
