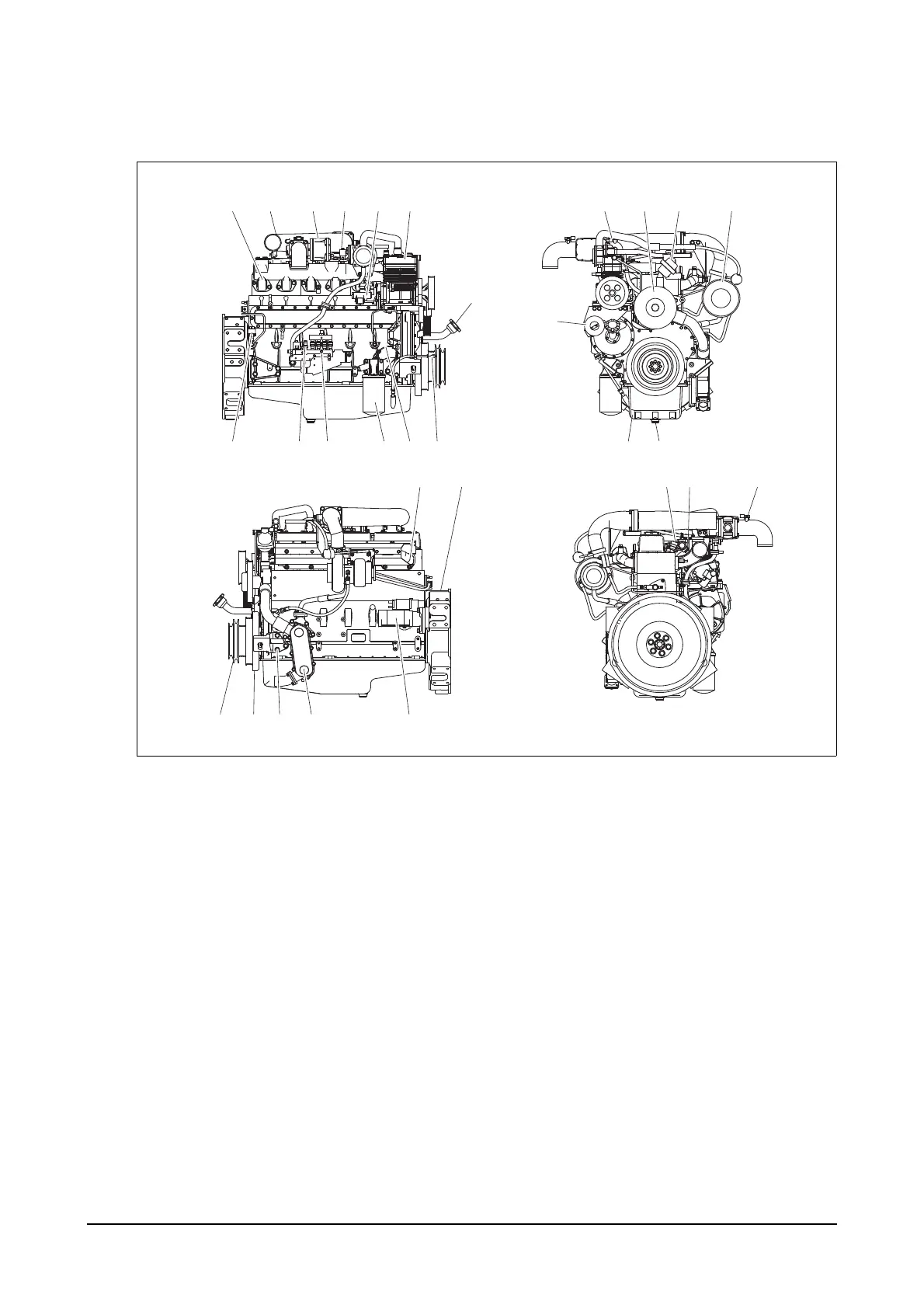

1.5.3. Engine assembly views
1) Bus engine
1. Flywheel housing 11. Oil pan 21. Exhaust manifold
2. Oil pressure sensor 12. Oil drain plug 22. Crank shaft pulley
3. Intake manifold 13. Fuel metering valve 23. Vibration damper
4. Throttle valve 14. Gas pressure &
Gas temperature sensor
24. Engine mounting bracket
5. Air pipe
(Turbocharger
 Intercooler)
15. Oil filter 25. Oil coller
6. Air compressor 16. Idle pulley 26. Starter
7. Power steering pump 17. Thermostat 27. Ignition coil
8. Ignition timing sensor 18. Cooling water pump 28. Cooling water temperature
sensor
9. Oil filler 19. Turbocharger 29. Intake manifold temperature
& pressure sensor
10. Oil level gauge 20. Solenoid valve
(Turbocharger)
30. Pre throttle pressure sensor
EJ3OM003
35 42076 29
16
18 17 19
2
21
22 23 24 25 26
1272830
14 13 15 8 10 11 12
9
