2.3.5. Lubrication system
The engine is equipped with force-feed lubrication.
The pressure is produced by a gear pump whose drive gear is in direct mesh with the crankshaft gear at
the front end of cylinder block.
The oil pump draws the oil from the oil sump and delivers it through the oil cooler and oil filter to the
main distributor gallery and from there to the main bearings, big-end bearings and camshaft bearings as
well as to the small-end bearings and the rocker arms. The turbocharger are also connected to the
engine lubricating system.
The cylinder walls and timing gears are splash-lubricated.
Each cylinder has an oil jet provided for cooling the underside of the pistons.
The lube oil is cleaned in a full-flow oil filter.

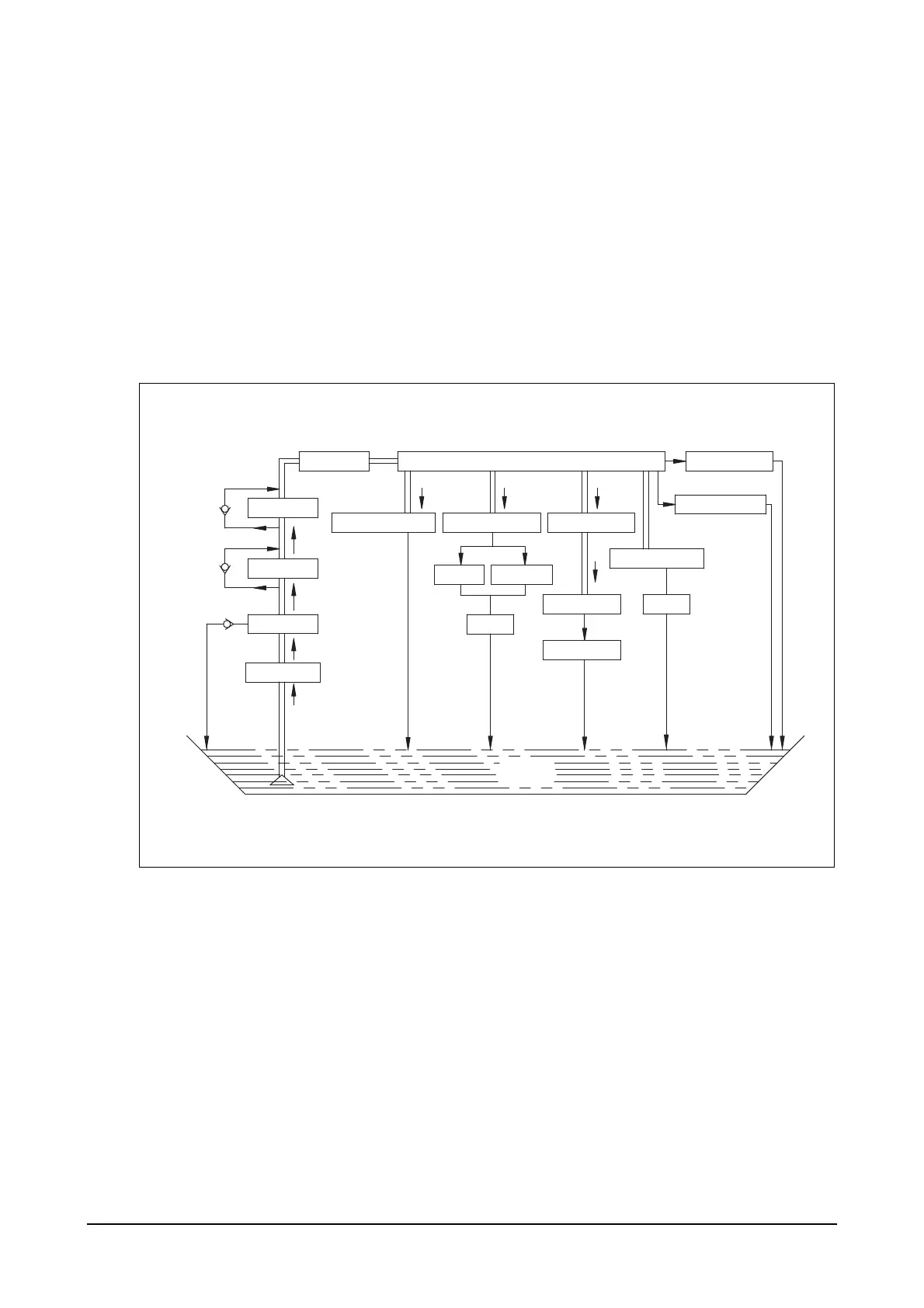

ED4OM007
Turbo charger
Air compressor
Crank journalRocker arm bush
Cam shaft bearing
Relief valve
Oil strainer
Oil pump
Oil cooler
Oil pan
Piston pin
Crank pin
Tappet
Valve Push rod
Oil spray nozzle
Piston
By-Pass valve
By-Pass valve
Oil filter
Relief valve
Cylinder block main gallery
