Maintenance
- 90 -

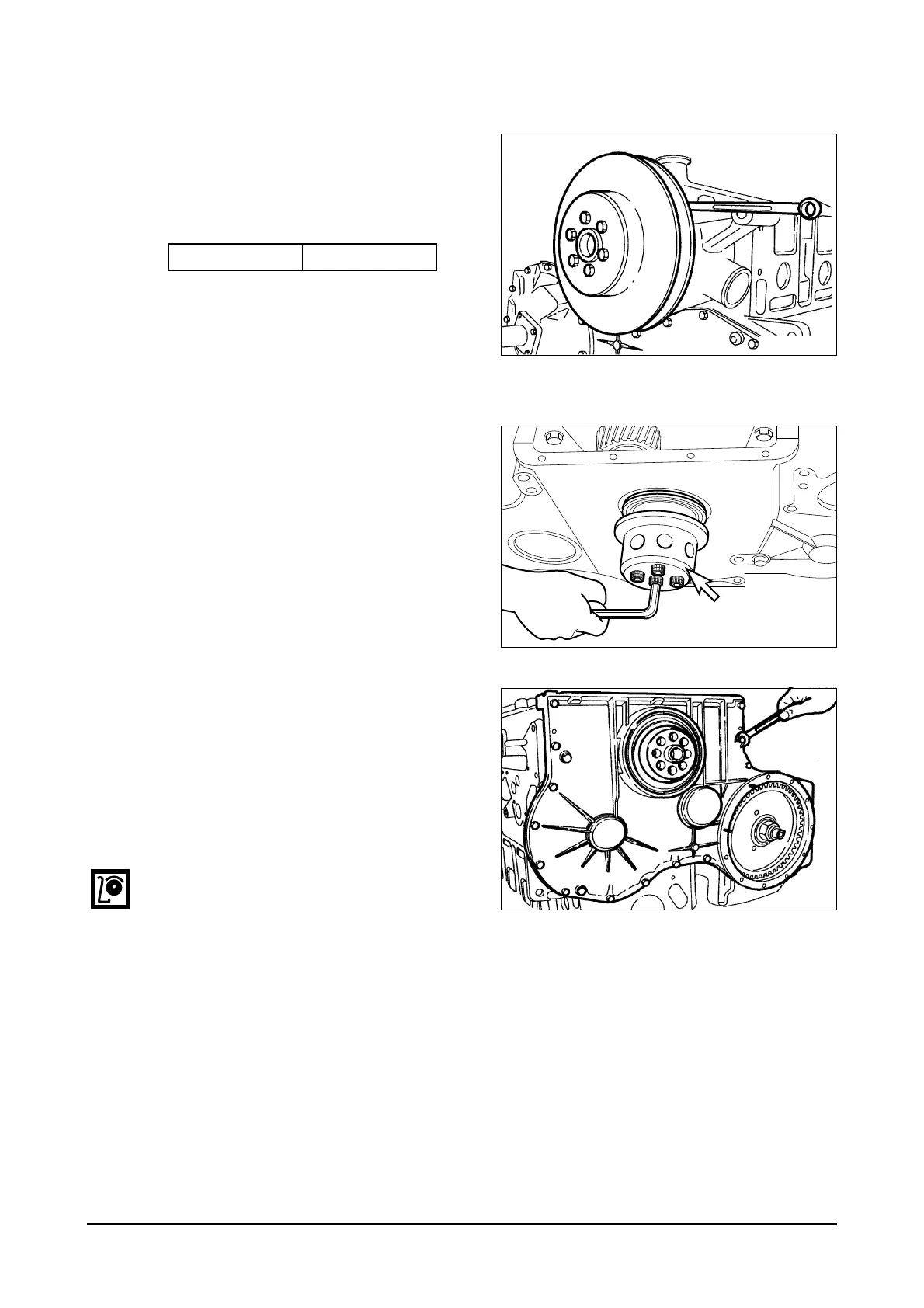

3.3.18. Cooling water pump
Mount a new gasket.
Install the water pump on the cylinder
block and tighten the assembling bolts
with specified torque.
Connect water pipes and by-pass pipe
to the water pump.
Connect a water pipe to the expansion
tank.
3.3.19. Oil seal (front side)
Apply lubricating oil to the outside of the
oil seal and the oil seal hole of the
timing gear case cover.
Put the new oil seal on the oil seal hole
of timing gear case cover aligning the
center of them, then assemble the oil
seal using an oil seal fitting jig.
3.3.20. Timing gear case cover
Install dowel pin on the timing gear case.
Mount a gasket by aligning the fixing
bolt holes with those on the gasket.
Align the dowel pin with the cover pin
hole, then install the cover with light tap.
Tighten the fixing bolts beginning with
the oil pan fitting face.
In the assembling, be careful not to be
damaged by the crankshaft.
Torque 2.2 kg
•
m
EAMD086I
Oil seal fitting jig
