Maintenance
- 91 -

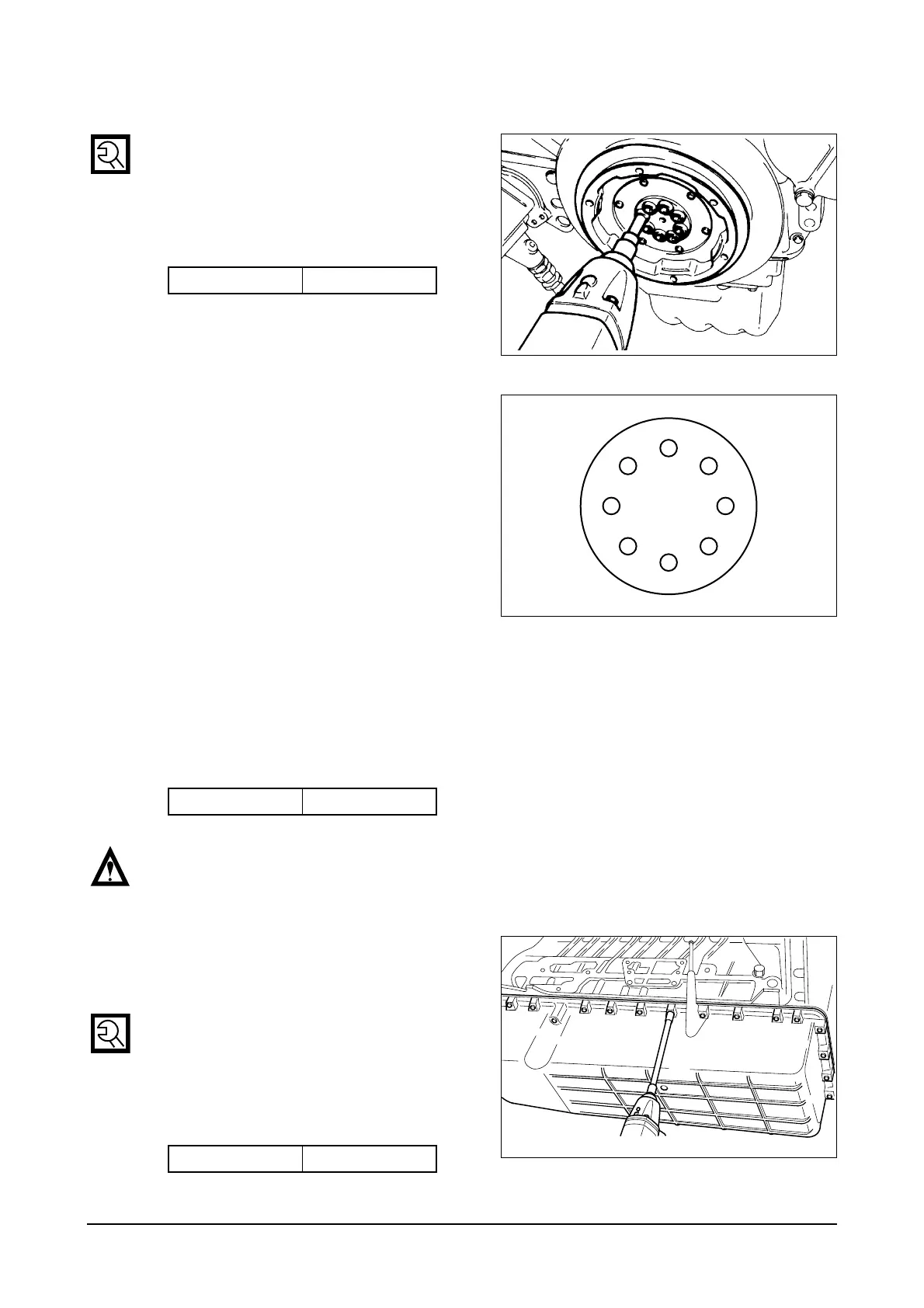

3.3.21. Vibration damper
Insert the vibration damper to the
crankshaft, and assemble by tightening
the assembling bolts at the specified
tightening torque according to bolt
tightening order. (refer to right figure.)
3.3.22. Oil pan
Remove the gaskets thoroughly that
project at the timing gear case, case
cover of cylinder block, and the
contacting part of flywheel housing by
means of a scraper.
CAUTION:
Be careful for the gasket pieces not fall
into the engine during the work.
Coat the silicone at the gasket part that
was removed (Contacting part), and
attach the new oil pan gasket.
Assemble the oil pan by tightening the
oil pan assembling bolts, and when
tightening bolts, primarily tighten the
bolts (4ea) at the both ends, and then
tighten the rest bolts to specified torque.
Torque 13.4 kg
•
m
Torque 2.2 kg
•
m
Torque 3.1 kg
•
m
