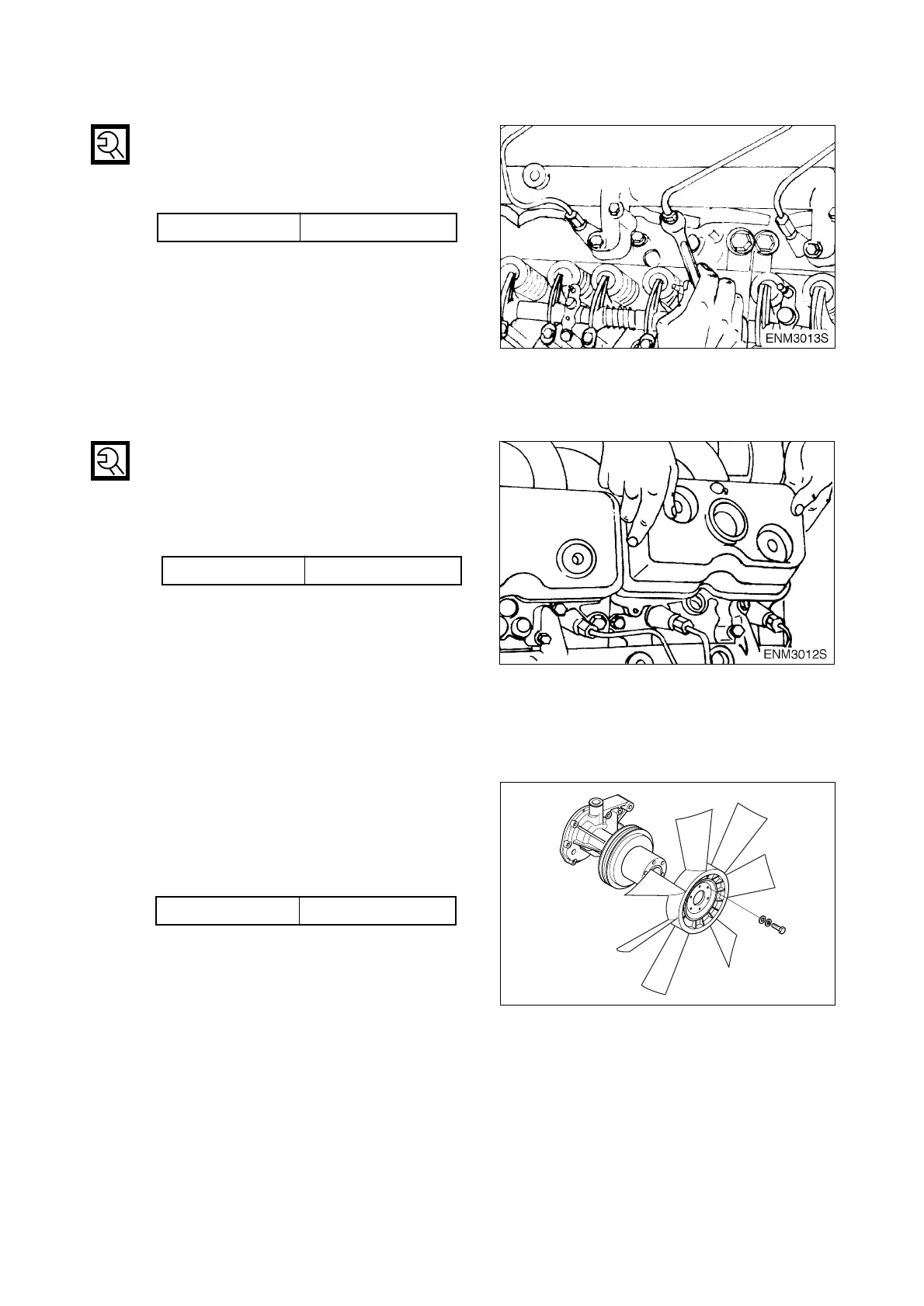

9.3.36. Injection pipe
•
Semi-assemble a nut at both ends of the
fuel high pressure pipe and tighten them
up one by one to specified torque.
•
Tighten hollow screws to assemble the
fuel return pipe.
•
Assemble the fuel return hose on the
fuel injection pump.
9.3.37. Cylinder head cover
•
Assemble the new gasket with the
cylinder cover, install the cover on the
cylinder head, then tighten the fixing
bolts in sequence to specified torque.
•
Assemble the breather hose with PCV
valve.
•
Insert the oil filler cap in the cylinder
head cover.
9.3.38. Cooling fan
•
Install the fan drive pulley onto the
timing gear case cover.
•
Install the fan flange and cooling fan
onto the cooling water pump.
- 119 -
Torque 3.0 kg
.
m
Torque 1.2 kg
.
m
