9.3. Reassembly
9.3.1. General precautions
•
Clean all the disassembled parts, particularly oil and water ports, using compressed air,
then check that they are free from restrictions.
•
Arrange the general and special tools in order for engine assembly operation.
•
To wet each sliding part, prepare the clean engine oil.
•
Prepare service materials such as sealant, gaskets, etc.
•
Discard used gaskets, seal rings, and consumable parts, and replace with new ones.
•
Apply only the specified torque for bolts in the specified tightening order and avoid over-
tightening.
•
Be sure to check that all the engine parts operate smoothly after being reassembled.
•
Check the bolts for looseness after reassembly.
•
After completing the engine reassembly operation, check if there is missing parts or short-
age of parts.
•
Keep your hands clean during the working.
9.3.2. Cylinder block
Cover the floor of the workshop with wood
plate or thick paper to prevent damage to
the cylinder head and place the cylinder
block with the head fitting surface facing
downward.

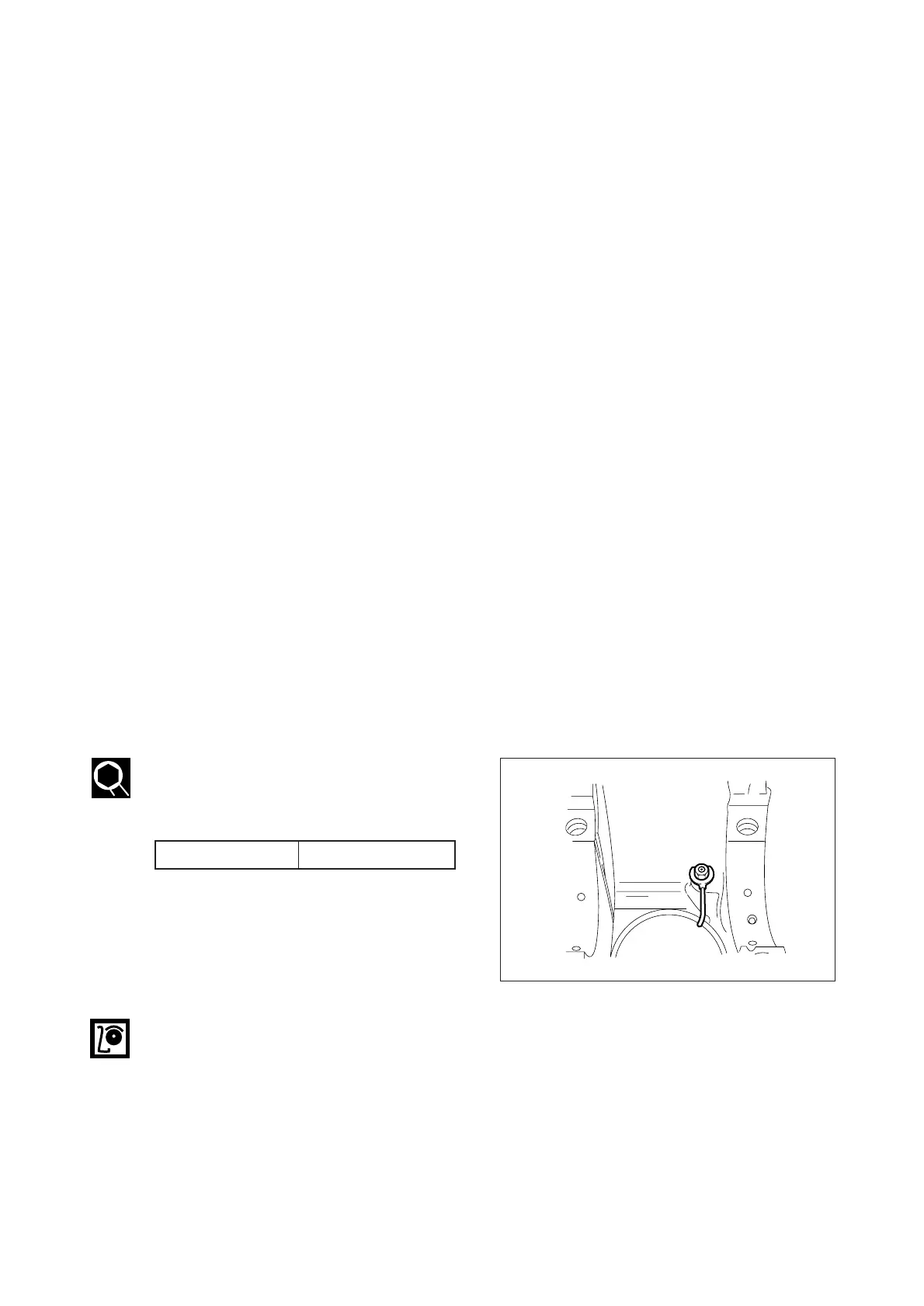

9.3.3. Oil spray nozzle (for D1146T/PU086T/ P086TI)
Tighten and assemble the oil spray nozzle
flange with fixing bolts using the spray noz-
zle jig.
9.3.4. Tappet and cam shaft
•
Undercool a new bush with dry ice for
about 2 hours and press it into position in
the cylinder block using a bench press.
After the pressing operation, measure
the inside diameter of the cam bush to
check if it is not deformed.
