Doosan PU086T User Manual

- 159 -

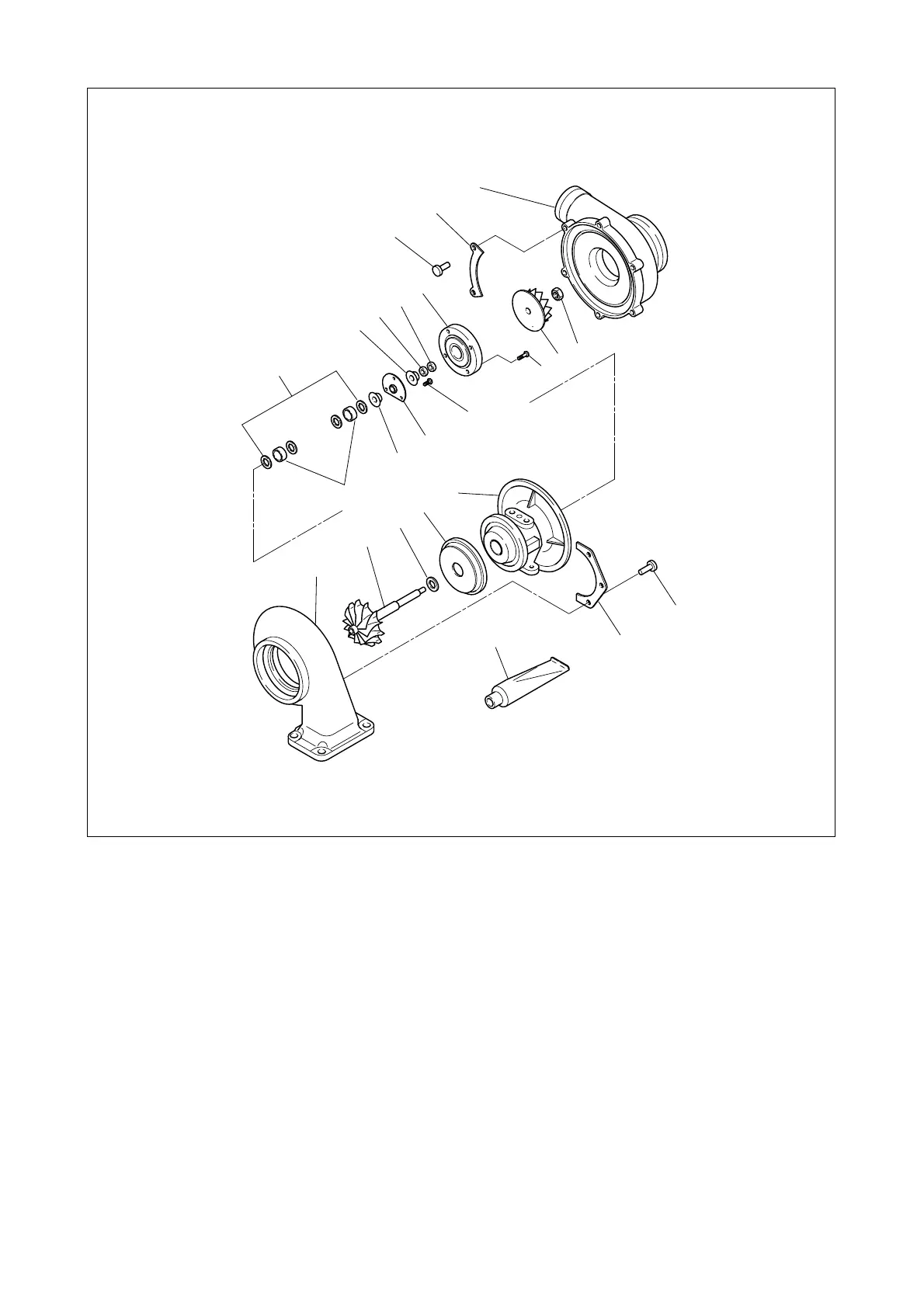

1. Turbine shaft 15. Seal plate
2 Thrust bush 16. Thrust bearing
3. Oil shut off 17. Journal bearing
4. Fixing nut 18. Screw
5. Seal ring 19. Screw
6. Seal ring 21. Heat dissipator
7. Seal ring 22. Compressor housing
8. Compressor wing wheel 23. Clamp
9. Turbine housing 24. Bolt
10. Bolt 27. Liquid gasket
11. Clamp 30. Loctite
13. Bearing housing 31. Liquid anti-burn agents
14. Retainer ring
22
24
15
19
14
18
16
17
13
21
11
10
27,30,31
7
4
8
6
2
5
9
1
3
EFM3001I
23


