II. SETUP AND INSTALLATION
A. Programming the Sensor Location
1. Be sure that the power is on. The first time the monitor is switched on; the display
should show NSP .This will signify that no sensor is programmed, or the monitor
has not received a new sensor signal yet. If this is the case it could take up to 6
minutes for the sensor to report in if it is already attached to the valve stem. You
will now need to enter into the programming mode if you need to add sensors to
the monitor. If you are entering new sensors into the monitor be sure to leave the
sensors off of the valve stems until the programming is complete.
2. Press and hold the PROG button for approximately 5
seconds, the monitor screen will automatically change
over to the program mode, and then you can release
the button. When you have entered this mode the
monitor will display all of the tire positions and the word
PROGRAM will be displayed (see Figure 2-1). As
you will see by Figure 2-1 the monitor can be set up to
display a motor home pulling a car or trailer, or a car / truck pulling a trailer.
3. Select a tire position using the arrow buttons and
input the 3-digit serial number located on the sensor into the monitor
(see Figure 2-2 for the three-digit number). The monitor will
automatically capture the serial number and information when air
pressure is supplied to the sensor for that wheel position and lock
it into the monitor. Be sure to keep the sensors identified as to which
wheel positions they belong so that you can attach the sensors to
their proper location for future reference. Use the diagram in Figure
2-3 to record the 3 digit numbers onto the wheel locations that you will
be selecting.

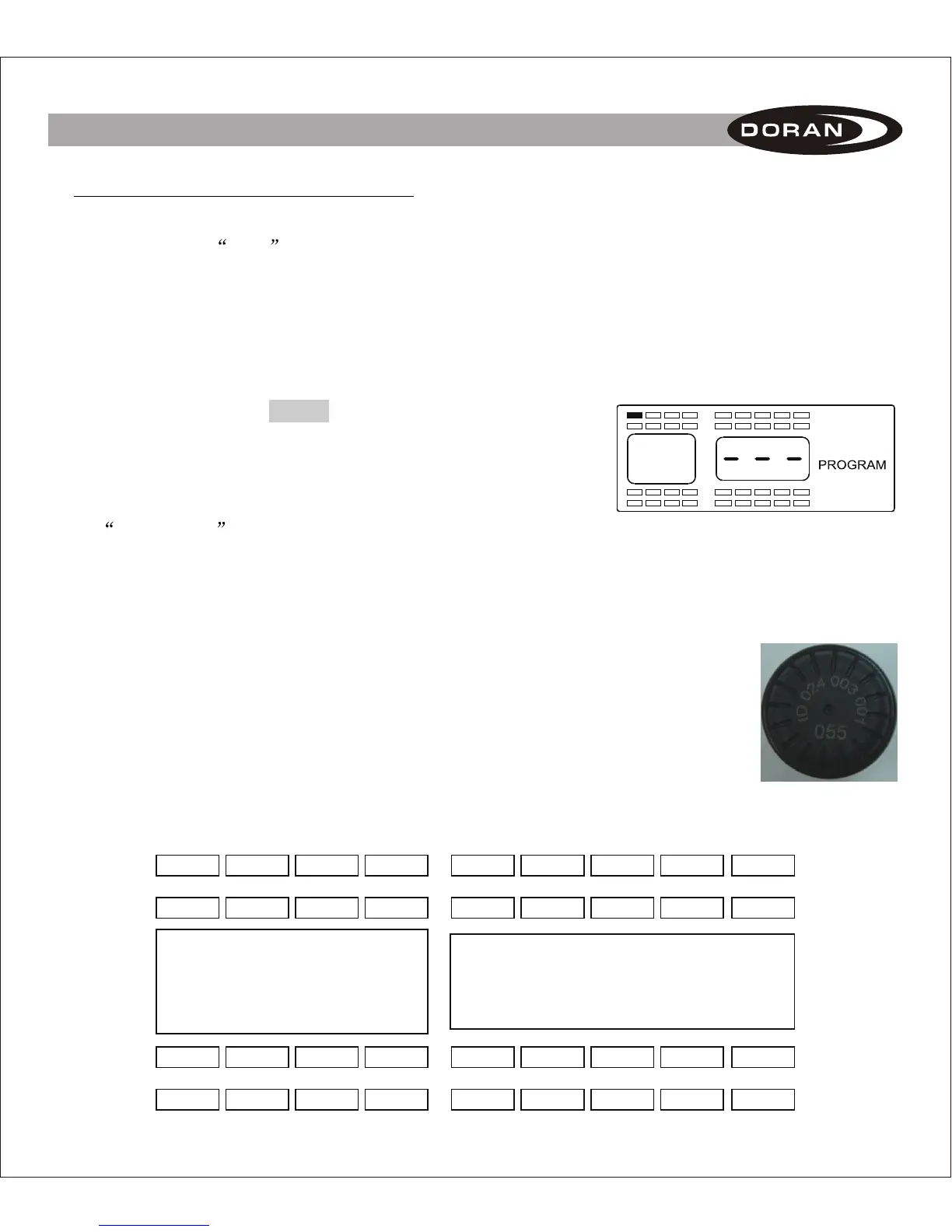

Figure 2-1
Figure 2-2
Figure 2-3
