ED 100, ED 250
—
5DORMA
4. System setup

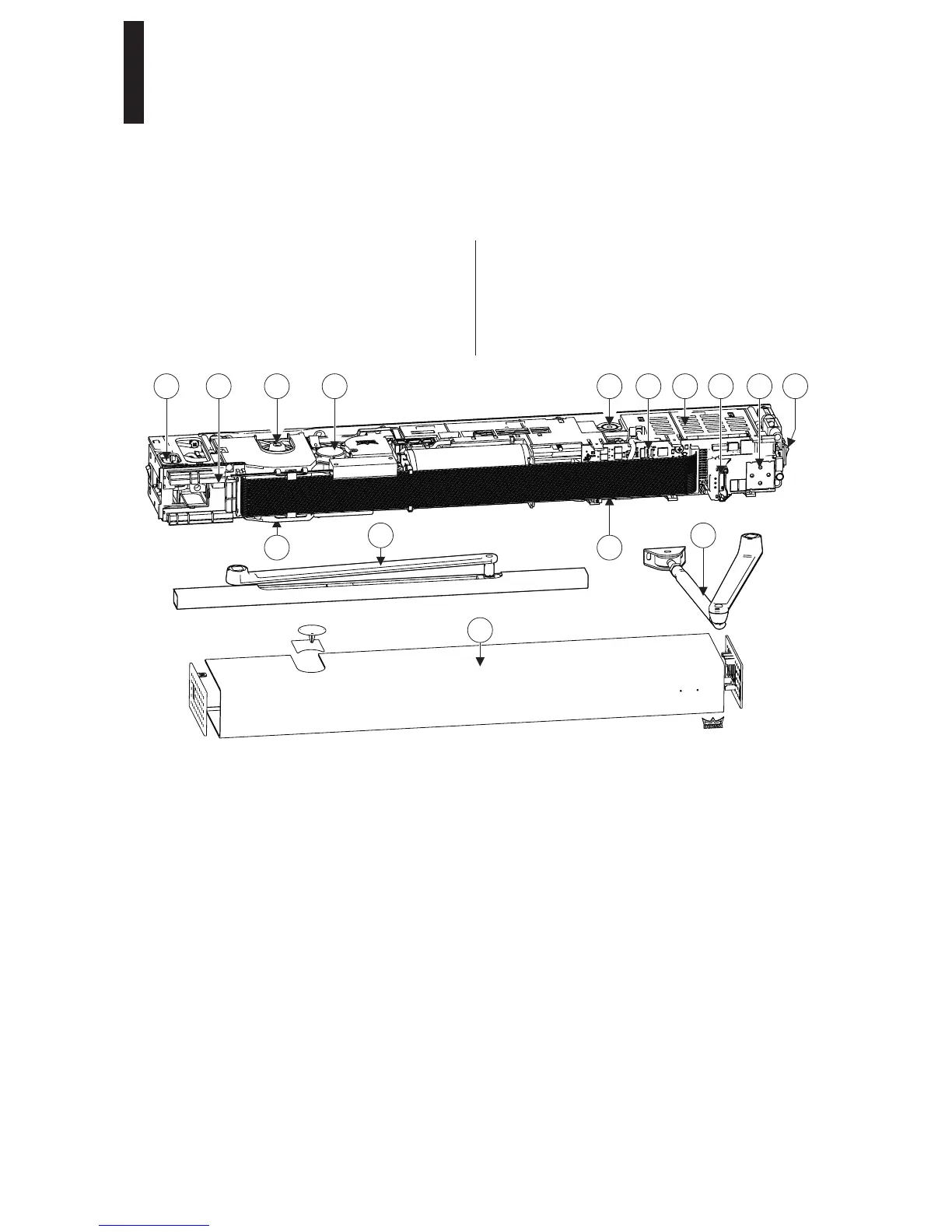

Operator system
The operator system comprises all core components.
Select the system in accordance with the door-leaf width and the door-leaf weight.
1. Mains connection
2. Connection unit
3. Axle connection on both sides
4. Drive system (motor/gear/ spring)
5. Adjustment of closing force
6. Control unit
7. Switching power supply unit
8. Slot for DORMA Upgrade Cards
9. User interface with information display
10. Internal program switch
11. * Slide channel (Set)
12. * Standard arm
13. * Complete cover
* Not part of the scope of delivery.
5. Technical specifications
Required operating conditions
Ambient temperature -15 to +50° C
Only suitable for dry environments relative humidity max. 93%, non-condensing
Power supply 230 V AC +/- 10% 50 Hz
Power consumption for external accessories Max. 1500 mA
General specifications
Dimensions (WxHxD) 685 x 70 x 130 mm
Operator weight 12 kg
Power supply for external accessories 24 V DC +/- 10%, 1.5 A
ED 100
Power consumption Max. 120 Watts
Closing force EN 1154 EN 2-4, adjustable (Fire protection from EN 3 on)
Opening speed* Max. 50° / second
Closing speed* Max. 50° / second
ED 250
Power consumption Max. 240 Watts
Closing force EN 1154 EN 4-6, adjustable
Opening speed* Max. 60° / second
Closing speed* Max. 60 / second
