Dorma ES 68 Series - LEGO v2 installation manual__P3

—
3
560166-01140 01 / 16
ES 68 SERIES 精智系列
PW
PW

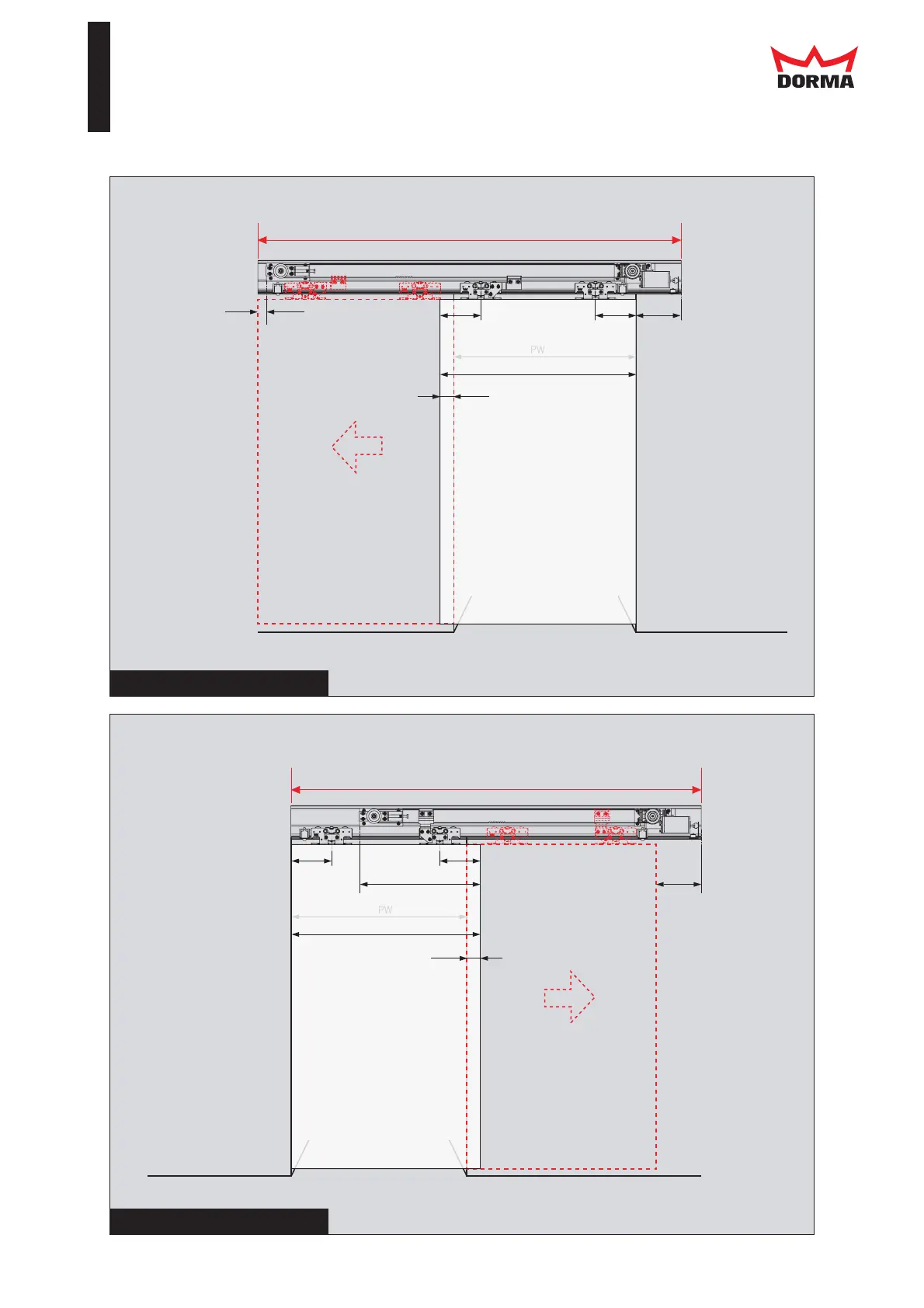

Single Right-Open (DW<900mm)
Single Left-Open (DW<900mm)
L
min
= PW x 2 + 220, DW = PW + 50
(in mm)
150
150 150 170
30
170
150
450
L
min
= PW x 2 + 220, DW = PW + 50
DW
DW
(in mm)
50
50
