79/RT/E7900/770/E-760/660 Series PK3678_T 04-18 37
B
N
Cylindrical Plate Assembly
F2
G
W
W
Place all cables
through H1
hole

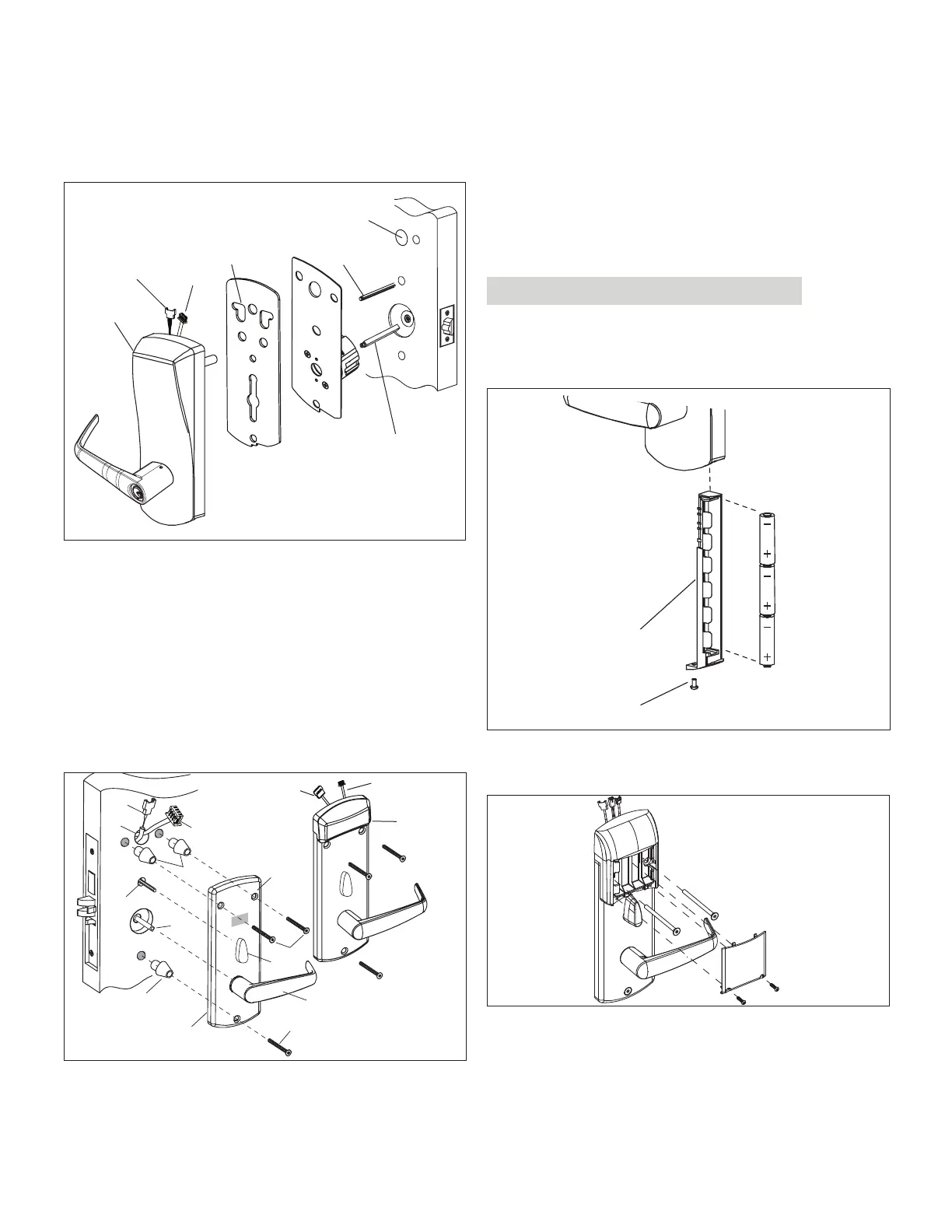

5. Put the thumbturn (T) in a vertical position. Assemble 3
spacers (S) on the door (for recent models only). Place the
inside trim assembly on the door so that the upper and
lower spindles (F) and (G) engage the thumbturn and the
inside lever. Fasten to the outside housing using the three
1/8" hex drive mounting screws (I). Install the screws
without tightening. Verify the inside lever and thumb-
turn operates smootly. If not move the inside and outside
housings slightly. Then tighten the screws. Connect cables
to corresponding connectors where applicable and put
excess cables in hole (H) in the door when installing the
inside trim assembly (E) on the door.
E1
W
W
Y
I
T
I
E
W
W
E1
V
F
G
V
E
6. Three AA batteries should already be installed in the
battery holder (C). Insert the battery holder into the
outside housing and secure it using the 6-32 x 5/16"
(7.9mm) Torx drive screw (C2) for E-760/770/79/RT Series
or 6-32 spanner drive screws for the 660 Series.
The battery holder shall be installed after connecting all
wires to their corresponding connectors, otherwise there is
a risk for battery drain.
C
C2
For the E7900 lock series, follow indications stated in step 5
using the illustration below.
APPENDIX B Installing Cylindrical Models 2-3/8"
& 2-3/4" Backset
