6
ED50/ED100/ED250 09-2021DL4617-003
dormakaba ED50/ED100/ED250 OHC Header
Setup and Troubleshooting Instructions
Chapter 3

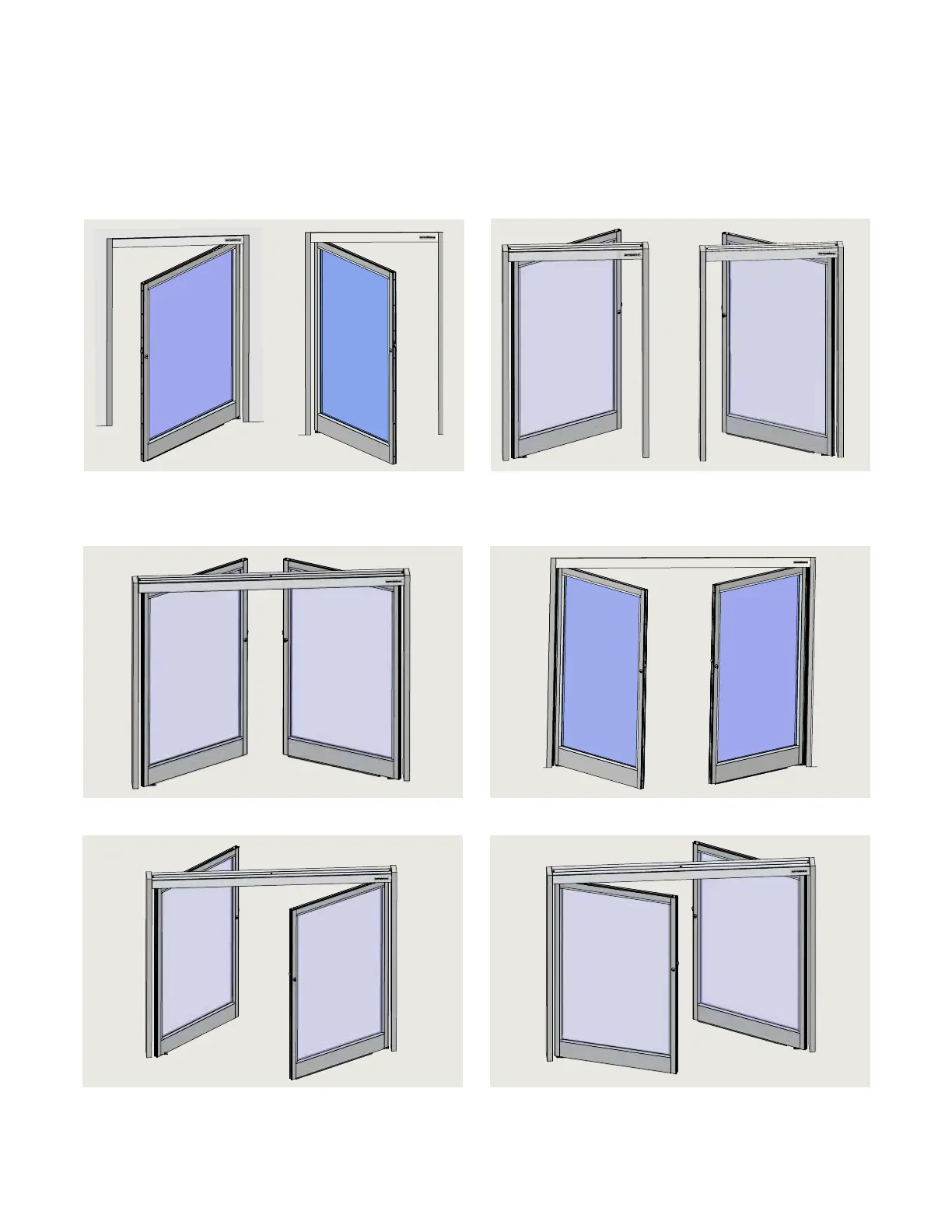

 ED//ED OHC door configurations
. OHC single door configurations
Fig. 3.1.1 LH inswing RH inswing
Fig. 3.1.2 LH outswing RH outswing
Fig. 3.2.4 RH double egress
Fig. 3.2.3 Inswing
Fig. 3.2.1 Outswing
Fig. 3.2.2 LH double egress
. OHC pair door and double egress door configurations
Jambs and doors supplied and installed by customer.
Locks optional.
