dormakaba ED900 Installation Instructions – Double egress door Chapter 2
Inactive doorActive door

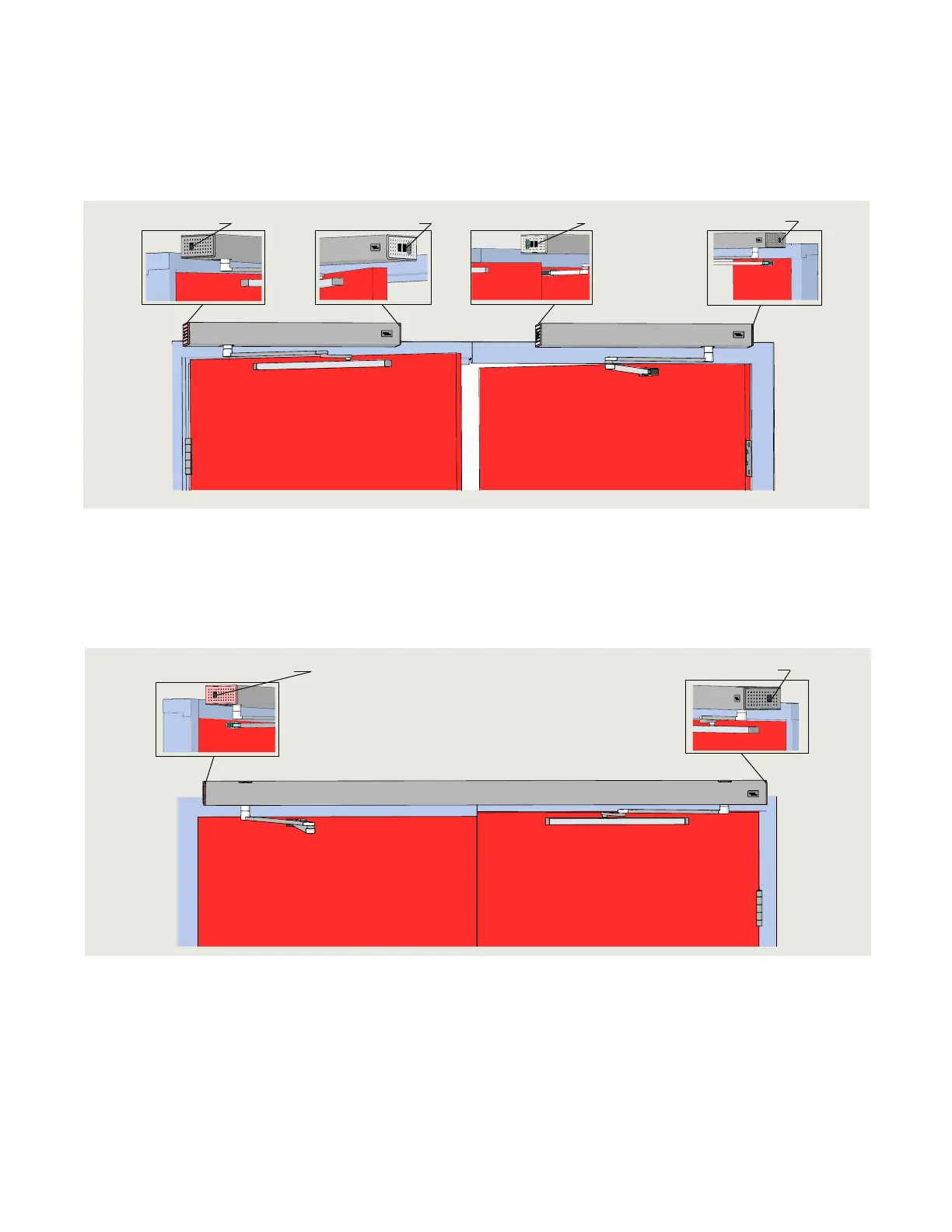

. Double egress door installation configurations
Fig. 2.3.1 ED900 installation – separate covers
.. Standard ED cover installation.
. Each ED controlled by its own power switch and
program switches.
Fig. 2.3.1 ED900 installation – separate covers
Fig. 2.3.2 ED900 installation – full width cover (option) installation example
.. Full width cover (option) installation.
. Inactive door ED power switch controls power to
both ED operators.
. ED single program switch located on active door
controls both ED operators.
Power switch
Program switchesProgram switchesPower switch
Single program switch
Power switch
