dormakaba TS 73 EMF
51
45
16
45 38
98
50 5084
22
320
45,5
4
60
The proven solution for controlled hold-
open of fire and smoke check doors
Benefits
For the trade
• Efficient stocking thanks to non-handed, modular
system
• Range of arm assemblies and accessories to provide
an ideal solution even for special applications
For the fabricator/installer
• Easy to fix
• No adjustment of the hold-open point necessary
• Optimum adaptability thanks to adjustable latching
action
For the specifier/architect
• Attractive, compact design.
• Wide range of applications.
• Hold-open possible between approx. 75° and 180°
For the user
• To hold open, the door simply has to be opened to the
required point and released.
• Free selection of the hold-open point (opening angles
over 75°); variable at any time without the need for
adjustment of setting controls.
• Convertible to free-swing door closer
Universal application capability, stable hold-open point
and assured quality.
The TS 73 EMF is a hydraulic door closer with integrated
electro-magnetic hold-open for use on fire and smoke
check doors.
The hold-open of the door is electromagnetically
controlled and in the event of a fire, the door is reliably
closed by the integral hydraulic closer. The closing cycle
can also be initiated by manual door operation or
automatically in the event of a power failure.
Certified to ISO 9001

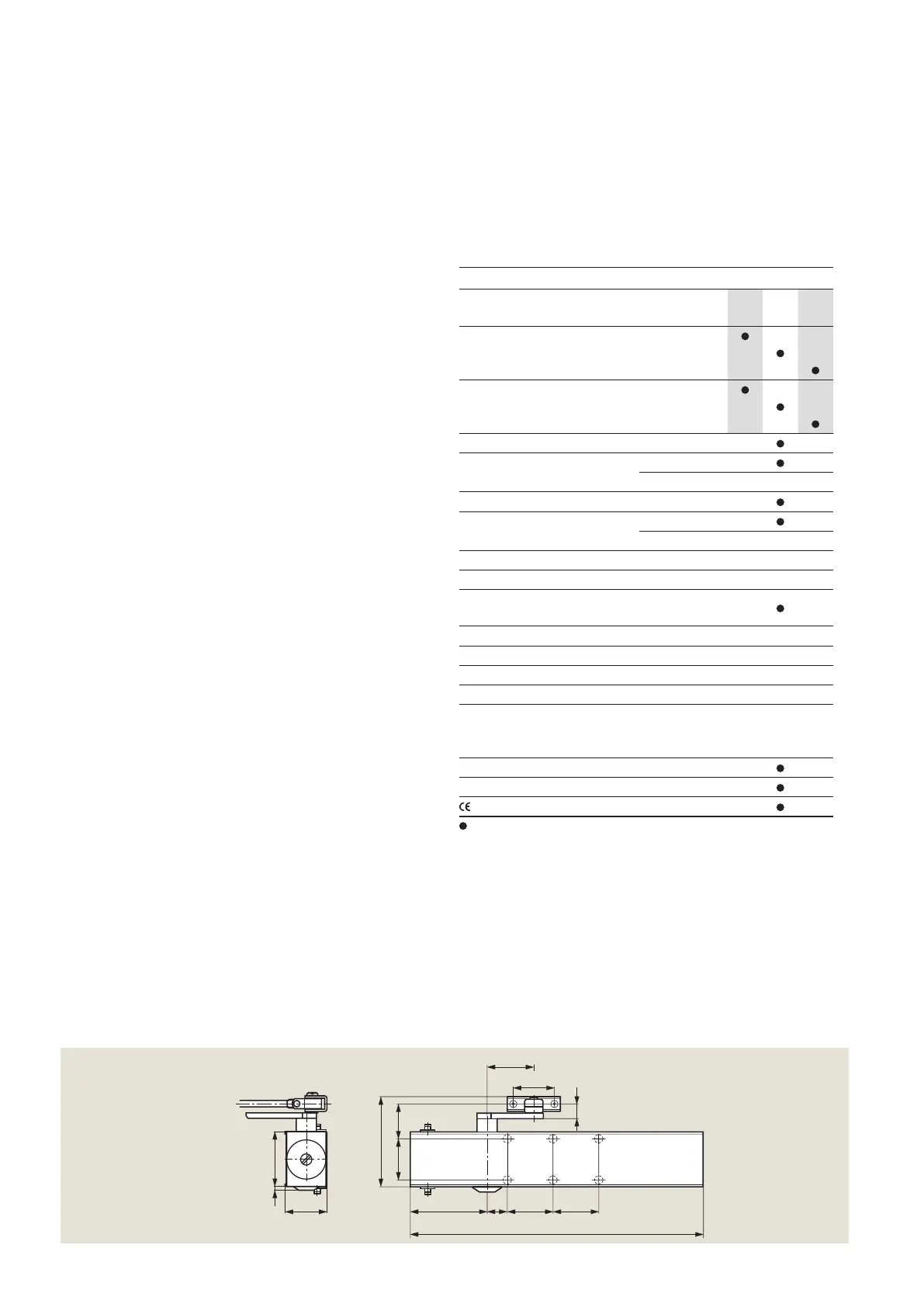

Data and features TS 73 EMF
Closing force Spring
strength
EN
4
EN
5
EN
6
Standard doors
1)
≤ 11 50 mm
≤ 1250 mm
≤ 1400 mm
–
–
–
–
–
–
Fire and smoke check doors
1)
≤ 11 50 mm
≤ 1250 mm
≤ 1400 mm
–
–
–
–
–
–
Non-handed
Arm Standard
Slide channel
Closing speed variable by valve
Latching speed variable by arm
by valv
e–
–
Backcheck –
Delayed actio
n–
Hold-open point variable
(opening angles between 75° and 180°)
Free-swing arm assembly
¡
Input voltage 24 V DC ± 15 %
Power input max. in
W2
Weight in kg 3.4
Dimesions in mm Length
Overall depth
Height
320
45.5
60
Door closer compliant with EN 1154
Hold-open device compliant with EN 1155
mark for construction products
Yes –No ¡ Option
1)
For applications involving particularly high or heavy doors, and doors which have to
close against wind or draught conditions, the next larger closer size should be selected.
