Dorner VFD User Manual

Dorner Mfg. Corp. 4 851-312 Rev. F
Industrial and Sanitary Variable Speed VFD Controllers
Product Description
Dorner Variable Speed VFD Controllers (Figure 1)) are AC
motor speed controllers for Standard and Heavy Load VFD
gearmotors.

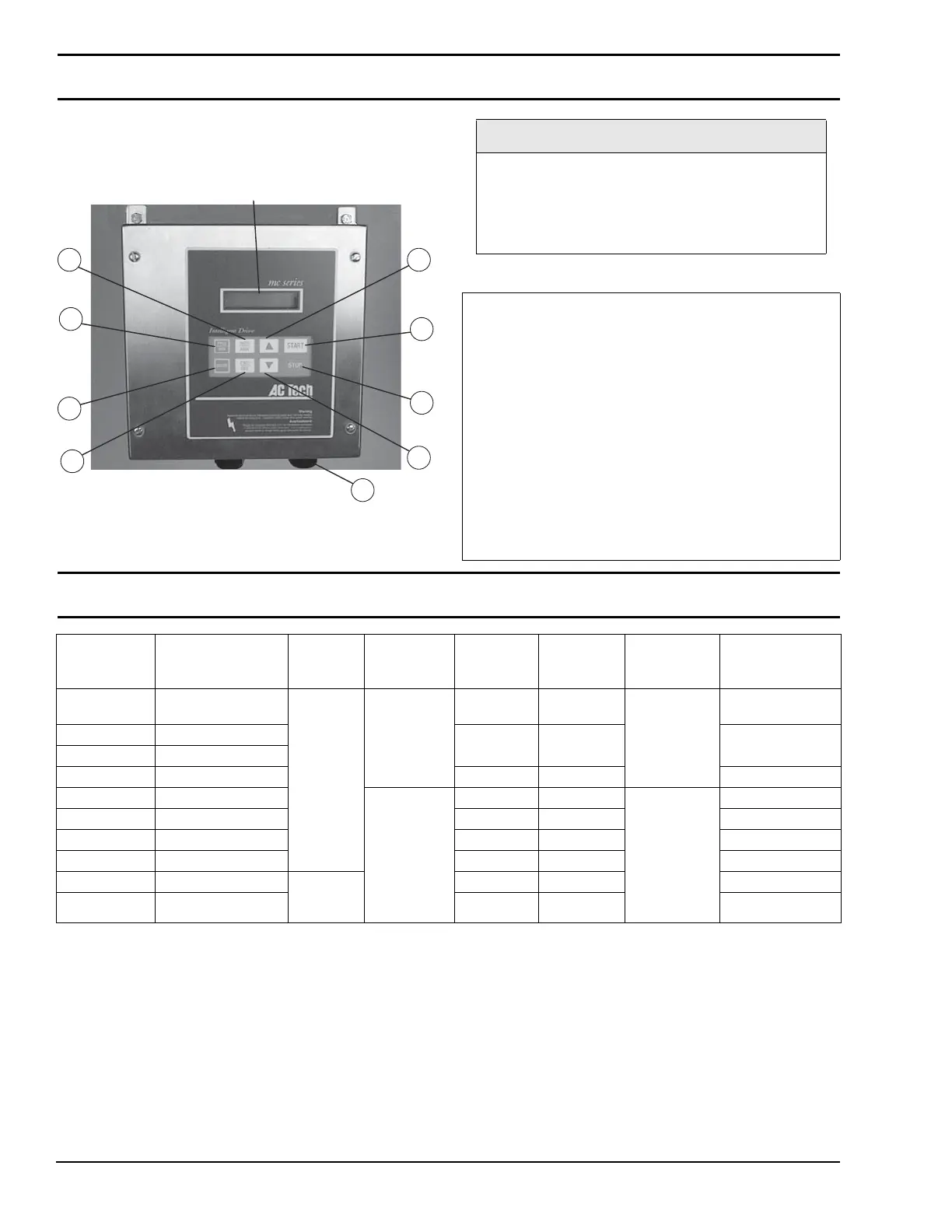

Figure 1
Figure 1
Illustration References:
Specifications
B
D
E
C
A
F
I
G
H
J
NOTE
For additional information, refer to the AC
Tech MC1000 Series Installation and
Operating Manual shipped with your
controller. See Specifications table for
models.
A Display
B Increase Speed Button
C Start Button
D Stop Button
E Decrease Speed Button
F FWD/REV (Forward/Reverse) Button
G Enter Button
H PROG/RUN (Program/Run) Button
I AUTO/MAN (Automatic/Manual) Button
J Line Connection Cord Grip
K M6 x 16 mm Stainless Steel Hex Head Cap Screws
(2x)
L Stainless Steel Mounting Clips (2x)
Dorner
Model
Number
Input Voltage &
Phase
Output
Voltage
& Phase
Output
Frequency
Maximum
Hp (kW)
Maximum
Output in
Amperes
Enclosures
Manufacturer’s
Model Number
62MV1122S 115/230 Single
Phase
230
Volts-
Three
Phase
10 to 60 Hz 0.5 (0.37) 2.2 NEMA 4x
(IP65)
M1105SE
62MV1124S 115 Single Phase 0 25
(0.19)
1.4 M1103SE
62MV2124S 230 Single Phase
62MV2322S 230 Three Phase 0.5 (0.37) 2.2 M1205E
62MV1122 115 Single Phase 6 to 60 HZ 0.5 (0.37) 2.2 NEMA 4
(IP65)
M1105SC
62MV2121 230 Single Phase 1.0 (0.75) 4.0 M1210SC
62MV2321 230 Three Phase 1.0 (.75) 4.0 M1210C
62MV2326 230 Three Phase 1.5 (1.1) 5.2 M1215C
62MV4341 460 Three Phase 460 Volts
Three
Phase
1 (.75) 2.0 M1410C
62MV4346 460 Three Phase 2 (1.5) 3.4 M1420C
