Dorner VFD - Steel Stand Leg Mounting

Dorner Mfg. Corp. 8 851-312 Rev. F
Industrial and Sanitary Variable Speed VFD Controllers
Installation

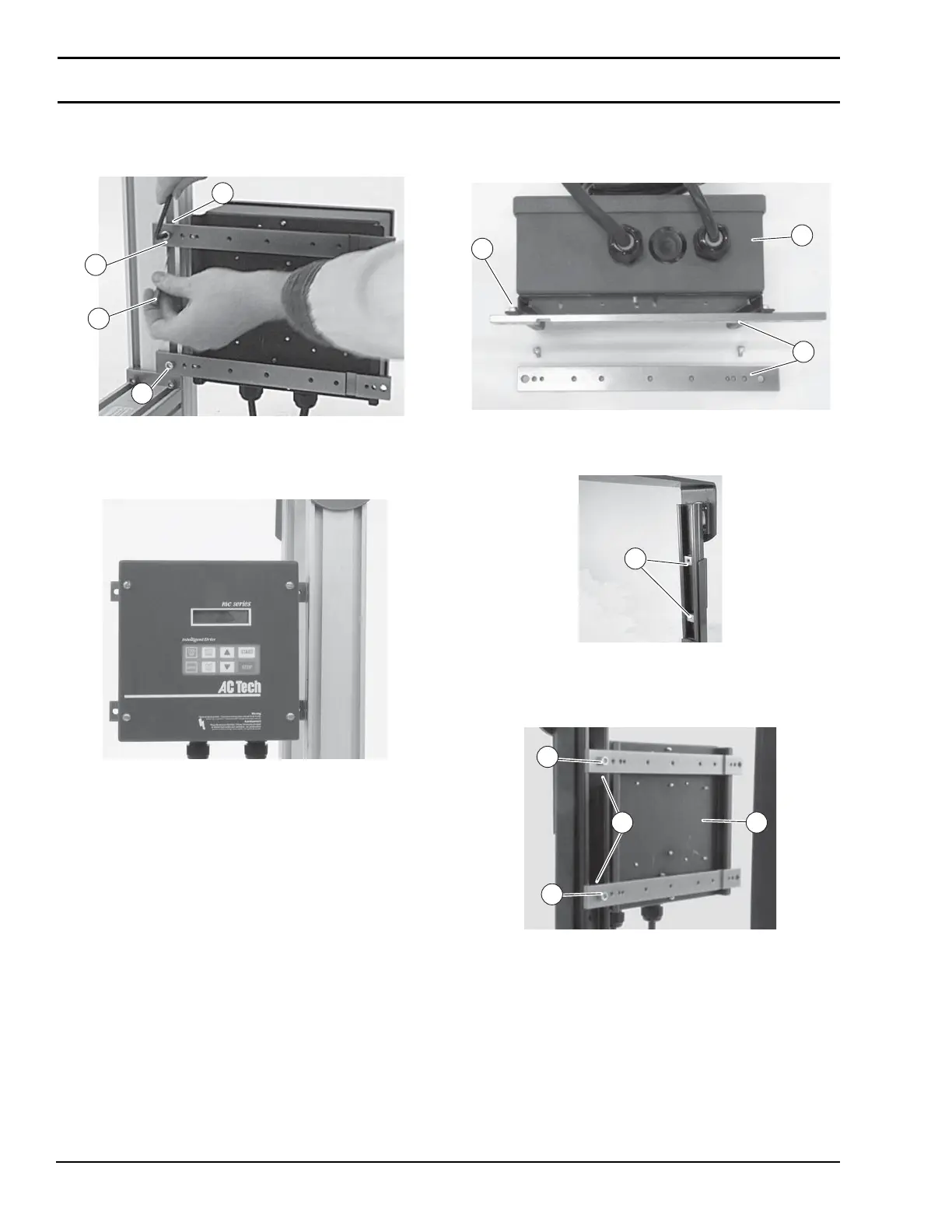

4. With screwdriver (Figure 16, item O), raise T-bar (J) to
align it with hole in top mounting bar. Insert M6 screw
(I) and partially thread into T-bar.
Figure 16
Figure 16
5. Slide controller to its desired mounting location (Figure
17)) and tighten both screws (Figure 16, item I).
Figure 17
Figure 17
Steel Stand Leg Mounting
1. Attach mounting bars (Figure 13, item M) to controller
(F) with screws (H).
Figure 18
Figure 18
2. Install Spring Nuts (Figure 19, item L) in steel stand leg.
Figure 19
Figure 19
3. Attach controller (Figure 20, item F) to Spring Nuts (L)
with screws (K).
Figure 20
Figure 20
