Dorner VFD - Industrial Controller Mounting; 2100, 2200 & 3100 Conveyor Mounting

Dorner Mfg. Corp. 6 851-312 Rev. F
Industrial and Sanitary Variable Speed VFD Controllers
Installation

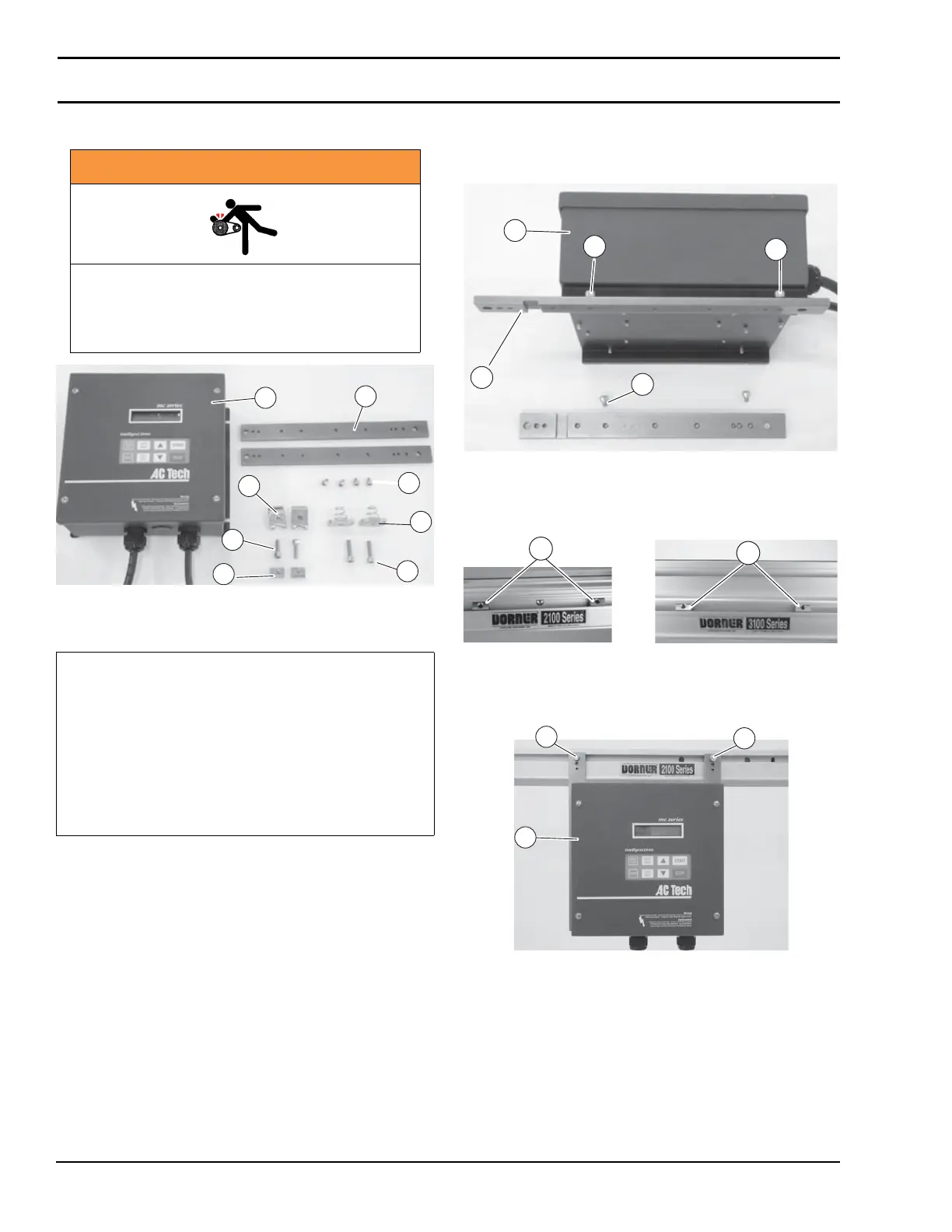

Industrial Controller Mounting
Figure 6
Figure 6
Installation Component List:
2100, 2200 & 3100 Conveyor Mounting
1. Attach mounting bars (Figure 7, item M) to controller
(F) with screws (H).
Figure 7
Figure 7
2. Install T-bars (Figure 8, item J) in 2100 Series, 2200
Series or 3100 Series conveyor T-slots.
Figure 8
Figure 8
3. Attach controller (Figure 9, item F) to conveyor with
screws (I).
Figure 9
Figure 9
A
WARNING
Exposed moving parts can cause severe
injury.
LOCK OUT POWER before removing guards
or performing maintenance.
F Industrial VFD Controller
G 6100 Series Accessory Mounting Clips (2x)
(450186M)
H Button Head Screws M5 x 8 mm (4x)
I Socket Head Screws M6 x 16 mm (2x)
J T-Bars (2x) (639971M)
K Socket Head Screws M6 x 20 mm (2x)
L Spring Nut, M6 (2x) (990605M)
M Controller Mounting Bar (2x) (300459M)
M
F
G
I
J
K
L
H
M
H
H
H
F
J
J
I
I
F
