Dorner VFD - 6100 Conveyor Mounting; Aluminum Stand Leg Mounting

851-312 Rev. F 7 Dorner Mfg. Corp.
Industrial and Sanitary Variable Speed VFD Controllers

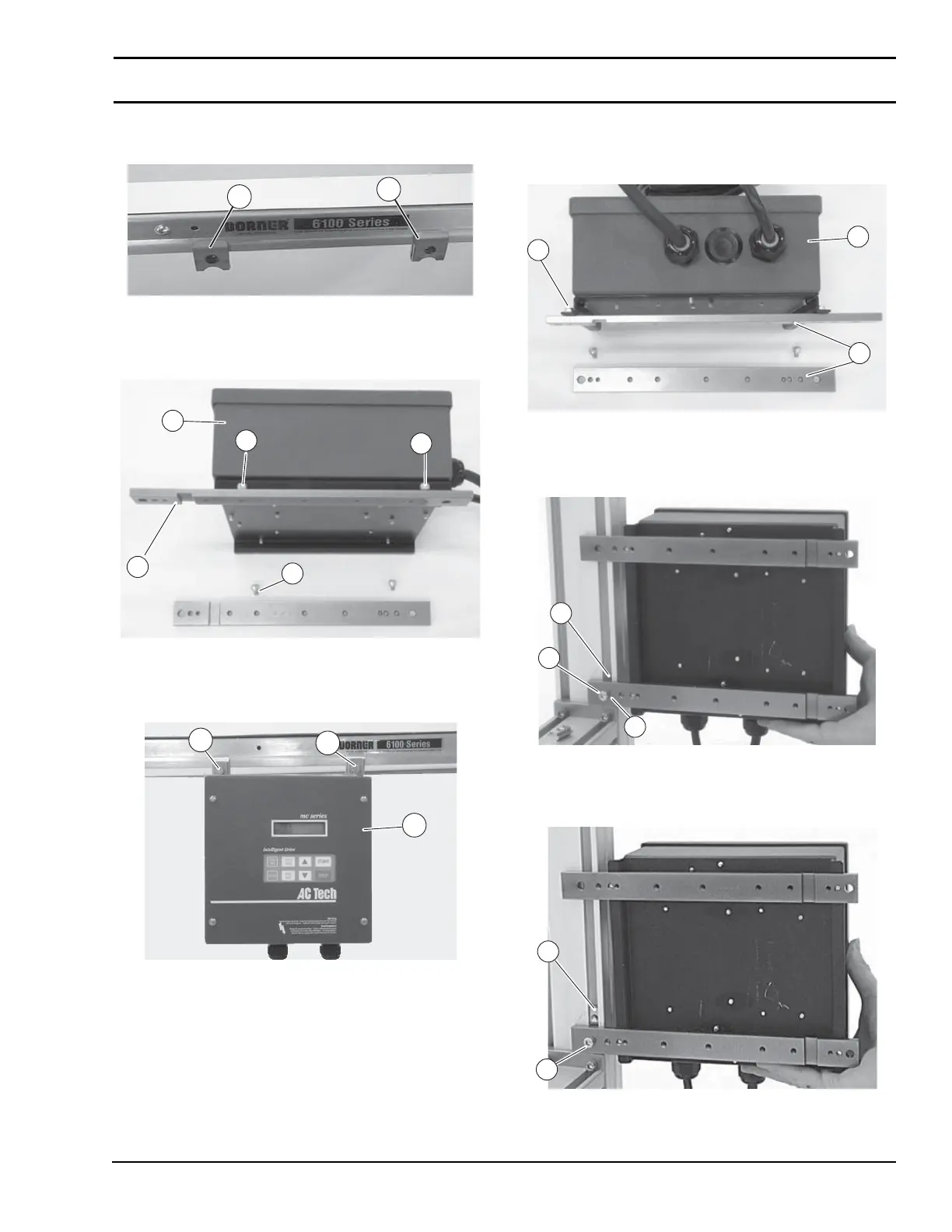

Installation
6100 Conveyor Mounting
1. Install mounting clips (Figure 10, item G) on conveyor.
Figure 10
Figure 10
2. Attach mounting bars (Figure 11, item M) to controller
(F) with screws (H).
Figure 11
Figure 11
3. Attach controller (Figure 12, item F) to conveyor with
screws (K).
Figure 12
Figure 12
Aluminum Stand Leg Mounting
1. Attach mounting bars (Figure 13, item M) to controller
(F) with screws (H).
Figure 13
Figure 13
2. Install T-bar (Figure 14, item J) into stand leg T−slot.
Attach controller lower mounting bar (N) with screw (I).
Figure 14
Figure 14
3. Temporarily tighten screw (I). Install second T-bar
(Figure 15, item J) into T-slot.
Figure 15
Figure 15
G
G
M
H
H
H
F
K
K
F
M
H
F
J
N
I
J
I
