Dors 200 - CUSTOMER INFORMATION; DELIVERY SET; APPEARANCE; IMPORTANT INFORMATION

32
Thank you for having chosen DORS 200 automatic detector.
The device is designed for authenticity verification of banknotes of various
currencies with automatic detection of their denomination. The banknote can be fed to
the detector by either side or orientation.
The detector automatically sums the results of the verified authentic banknotes.
The automatic detector DORS 200 (hereinafter detector) is manufactured by
DORS Industries (China) Ltd., Shilong Business Center, Shilong Information Industrial
Park, Building 17, the city of Dongguang, the province of Guangdong, China.
IMPORTANT INFORMATION:
To ensure long-term and reliable operation of the detector, it is recommended to
comply with the following operating and safety requirements:
1. Do not allow moisture, metal objects to get inside the detector.
2. Turn off the detector when not used.
3. When the detector is not used for a long time, disconnect its AC adapter from
the mains.
4. Use only the supplied power adapter to connect the detector to the mains.
5. The detector must be installed on a flat horizontal surface.
6. If there is no removable tray, there should be a free space behind the detector
for the exit of banknotes.
7. It is not recommended to use the detector in conditions of extremely low or high
temperatures, high humidity and to expose it to direct sunlight.
8. Do not touch the parts inside the detector if it is not disconnected from the
mains.
9. When installing the detector, take into account that high dust content can
adversely affect its operation.
10. Do not install the detector where it can be exposed to soot or steam. This could
lead to a short circuit or fire.
CUSTOMER INFORMATION
READ THIS MANUAL BEFORE OPERATION!
DORS 200 AUTOMATIC DETECTOR................................................................. 1 pc
Banknote guide.................................................................................................... 1 pc
Removable tray.................................................................................................... 1 pc
Power adapter...................................................................................................... 1 pc
User Manual or Quick Start.................................................................................. 1 pc
Package............................................................................................................... 1 pc
DELIVERY SET
APPEARANCE
1
R ear
view
Front
view
4
2
6
5
10 7 811
12

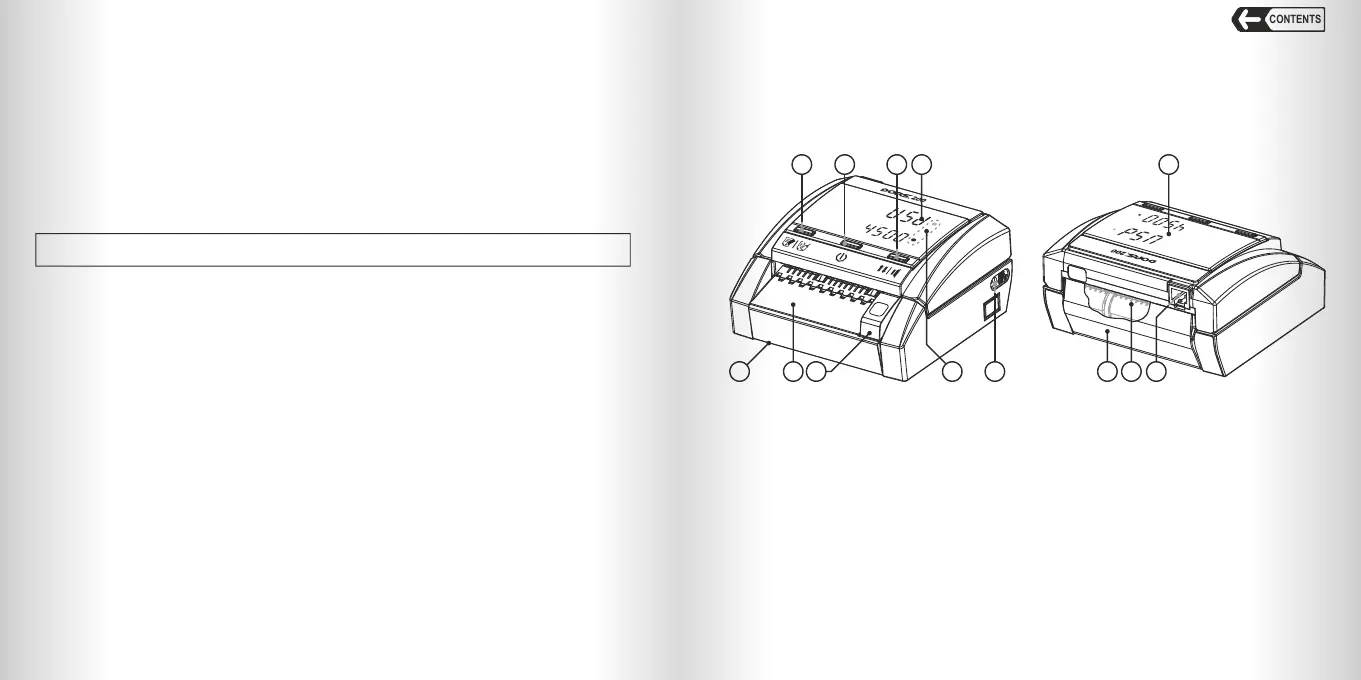

1. REPORT / CLEAR key: access to the report of verified banknotes; clear the results
of the verified banknotes; detector mode indication.
2. ON / OFF key: detector switching on/switching off; detector mode indication;
3. SOUND / OUTPUT DIRECTION key: switching on/switching off the sound signal;
changing banknote's output direction; detector mode indication;
4. Display (option);
5. Input tray;
6. Banknote guide;
7. Removable tray;
8. A connector for programming device;
9. Banknote output direction indicators;
10. Power adapter socket;
11. Output slot (tray 7 removed);
12. Output slot (tray 7 installed).
Fig. 1
4
3
9
AUTOMATIC DETECTOR DORS 200 AUTOMATIC DETECTOR DORS 200
