dosatron D8R - ASSEMBLING THE DOSATRON

34 DOSATRON
ASSEMBLING THE DOSATRON
ASSEMBLY SHOULD BE CARRIED OUT WITHOUT THE USE OF TOOLS
The DOSATRON is delivered with :
- a mounting bracket,
- a suction tube with a strainer,
- a by-pass tube Ø 6 x 9 [1/4" ID x 3/8" OD].
The bracket enables the DOSATRON to be fixed to a wall.
- Slide dovetails on the pump body (Fig. 1-A) into the support bracket (Fig. 1-S).
- Remove the nuts (Fig. 1-E) and ferrules (Fig. 1-C) from the DOSATRON inlet
and outlet.
- Remove the plastic caps (Fig. 1-B) which block the inlet and outlet of your
DOSATRON before connecting to the water supply.
- Make sure the watertight seals at the inlet and outlet of the DOSATRON are
correctly positioned :
First position the <O> ring (Fig. 1-J) and then the spacing ring (Fig. 1-G).

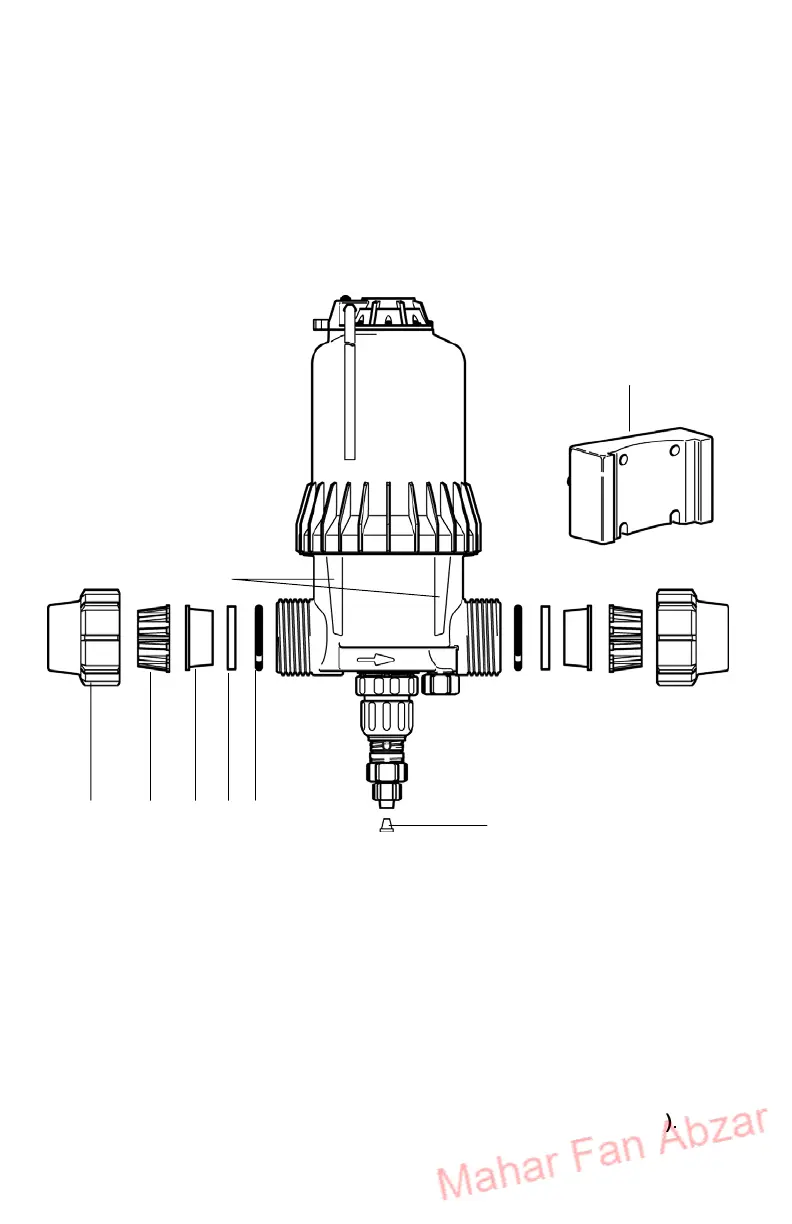

Fig. 1
A
E
C B G J
S
B
