Double E M70 - Performing the Cut

www.ee-co.com M70-100 Manual V2 Page 12 of 22
D.5 Making the Cut
Do not perform any installation while the main switch is on.

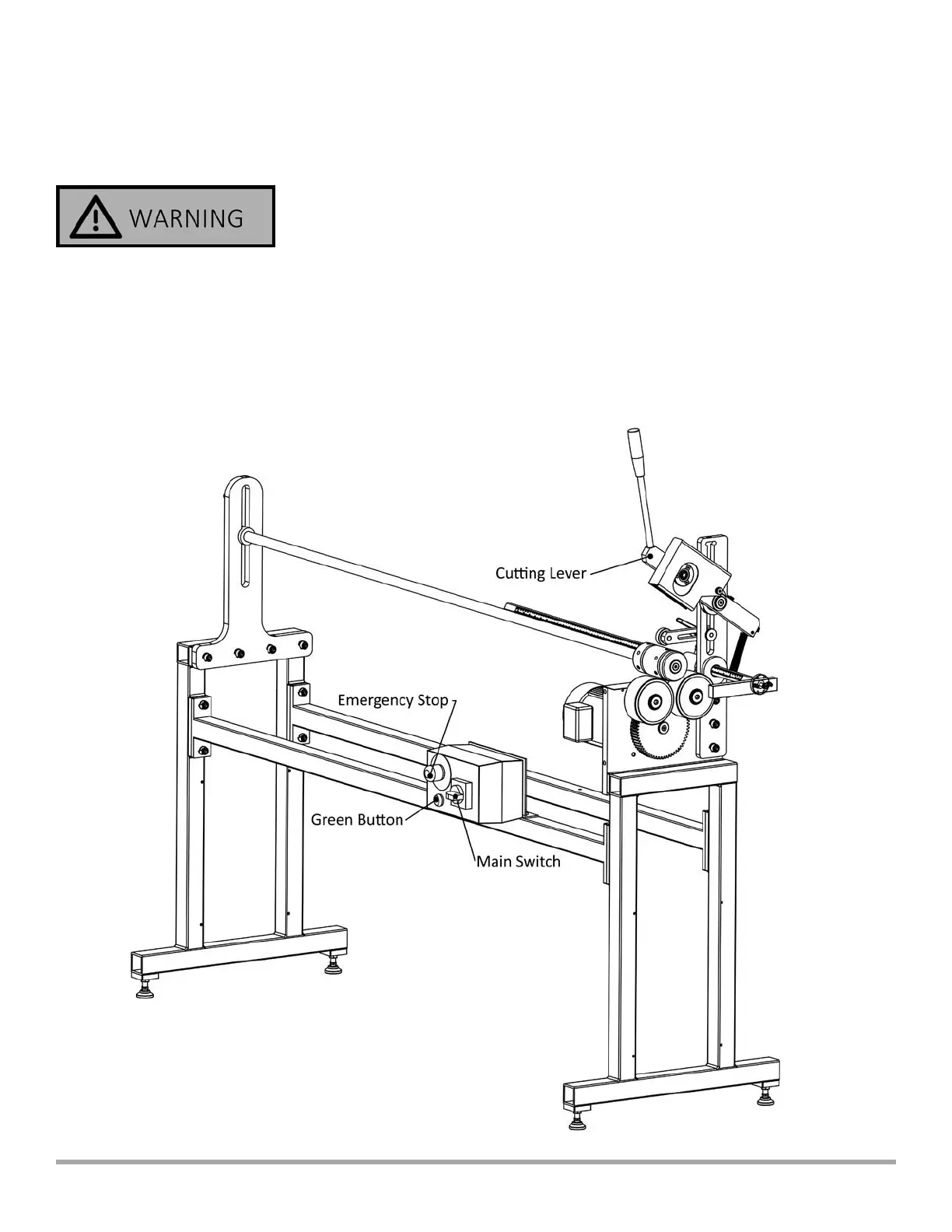

Once the core is loaded on the support bar and the adjustments have been made, the cung
process is easy. Be sure the main switch is set to on and the Emergency stop switch is not
depressed. Pressing the Green buon while pulling evenly down on the cung handle will
start the core rotang. Pulling down to force the knife through the core will complete the cut
.
