Double E M70 - Setting Cutting Assembly Height

www.ee-co.com M70-100 Manual V2 Page 9 of 22
D.2 Seng Cung Assembly Height
Do not perform any installation while the main switch is on.

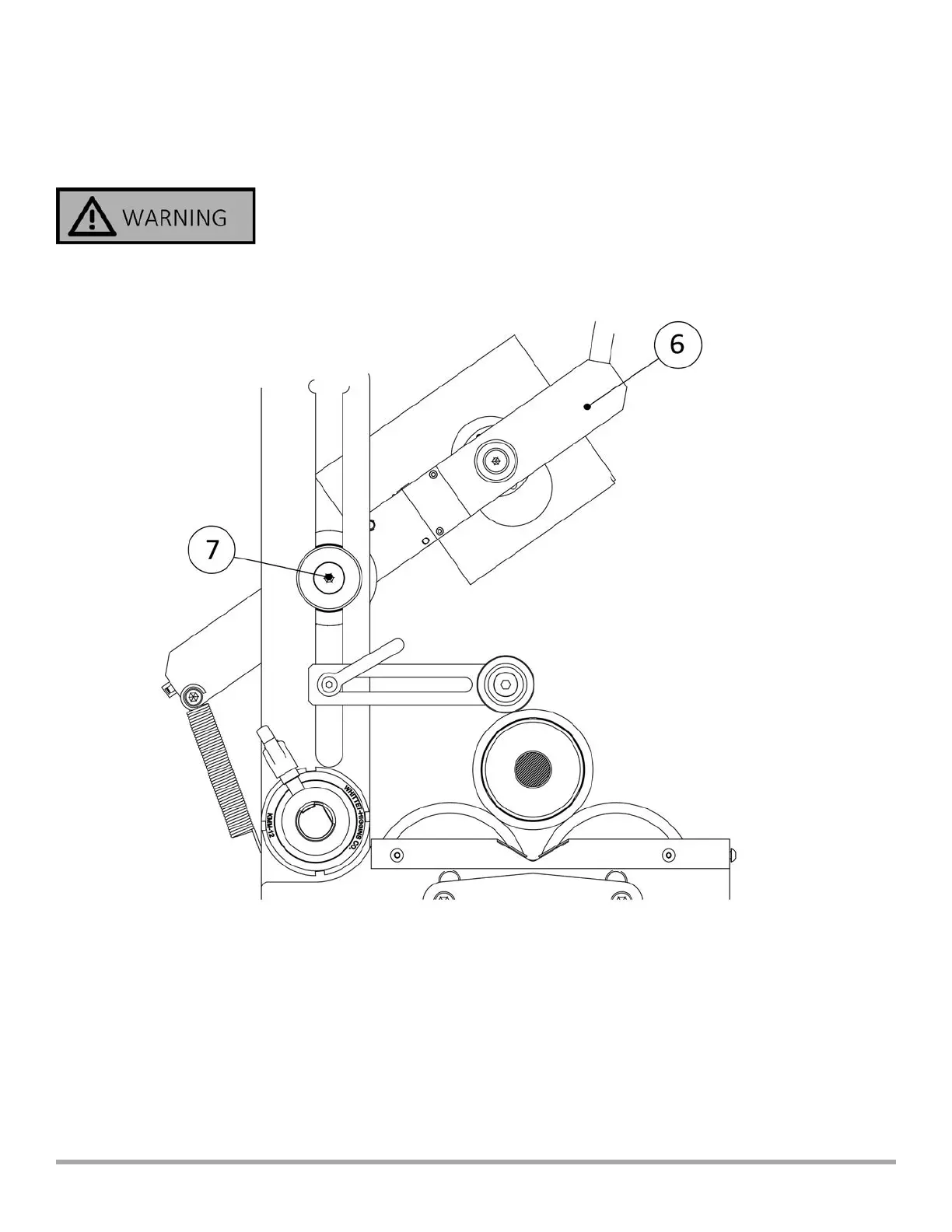

With the core sll on the bar, loosen bolt 7 and adjust the height so the cung arm 6 is
horizontal when the blade contacts the core. When completed, reghten olt 7 to lock the
assembly at the correct height.
