Electrical System
AUX
Reserved for additional DC accessories installed
by you or your Everglades dealer.
12 volt Receptacle
Provides electrical current for portable 12 volt
equipment. The receptacle is located on the
starboard side of the helm near the windshield.
MP3 Connection
Located on the starboard side of the helm near
the 12 volt receptacle. Provides an input for MP3
players to connect to the boat stereo system.
Additional DC Switches and Panels
Trim Tab Switch
Located in the helm. This switch controls the trim
tab planes located on the transom of the boat. It
is protected by a fuse located in the battery switch
fuse panel. Refer to the Helm Control Systems
chapter for detailed information on the operation
of the trim tab controls.
Engine Trim and Tilt Switches
Located in the helm. These switches are typi-
cally installed in the engine throttle and shift
controls. They control the trimming and tilting
of the engines. Please refer to the Helm Control
Systems chapter and the engine owner’s manual
for information regarding the proper use of the
tilt and trim switches.
Anchor Locker Windlass Switch
The switch is a three-position momentary switch
located in the anchor locker near the windlass.
The center position is OFF. Moving the switch in
one direction will pay the anchor line out. Mov-
ing the switch in the opposite direction will pull
the anchor line in. Release the switch to stop the
windlass.
Macerator Pump Switch
A key activated momentary switch located in the
head compartment that controls the overboard
discharge pump system for the holding tank and
marine head system. Monitor the waste level in
the tank while pumping and turn the waste dis-
charge switch OFF immediately when pumping is
complete.
The key must be removed from the switch when-
ever the discharge pump is not being operated.

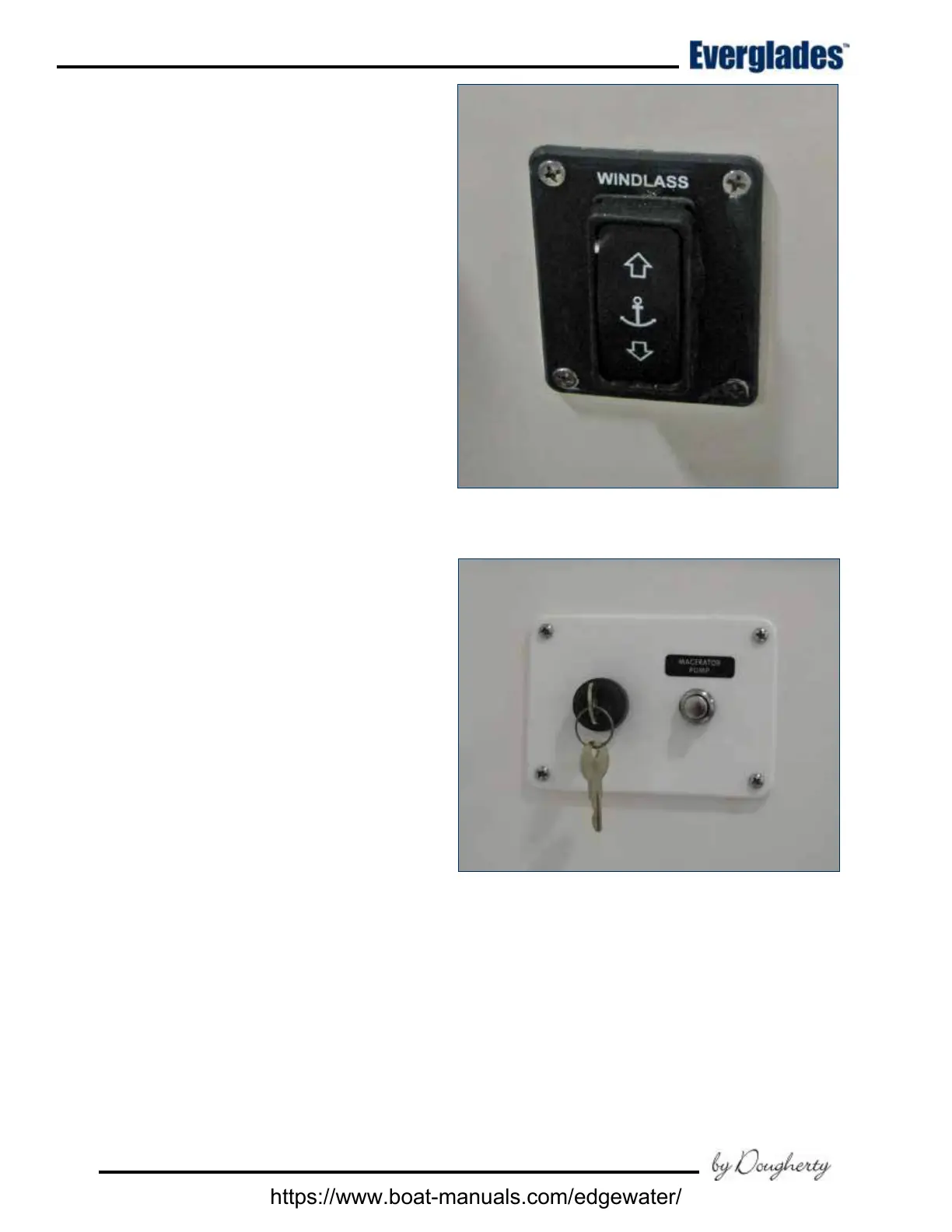

Head Compartment Macerator Pump Key Switch
Anchor Locker Windlass Switch
