94
Exterior Equipment
11.3 Hull
Engine Mounting System
Your Everglades is equipped with an engine
mounting system that is integrated into the hull
and stringer system that is designed to distribute
the stresses of engine weight and thrust through-
out the entire hull.
The engine cowlings, hoses and cables or the
transom gel coat can be damaged by tilting the
engines to the full up position with the engines
turned to the wrong position or with the stern seat
backrests in the seat position. The engine cowl-
ings can also hit the stern cooler hatch if it is open.
You should monitor the engines as they tilt to de-
termine best full tilt engine position for your boat.
Hydraulic Jack Plate (Optional)
Single engine boats could be equipped with an
optional hydraulic jack plate engine mounting
system that allows the operator to raise and lower
the engine with a switch at the helm. The engine
can be moved up for shallow water operation and
moved down for normal operation.
With some engine installations, the hydraulic
steering cylinder and boat transom can be dam-
aged if the engine is tilted to the full up position
with the Jack Plate set too low. Typically, the Jack
Plate should be raised to at least level 2 before
tilting the engine to the full up position.
Refer to the Hydraulic Jack Plate section of the
Helm Control Systems chapter for additional in-
formation on jack plate precautions and operation.
Swim Platform and Boarding Ladder
A berglass swim platform is mounted to the port
side of the transom. A platform mounted on the
starboard side is an available option. A grab rail on
the platform provides a hand hold while boarding.
A telescopic boarding ladder is mounted to the
port swim platform. To use the ladder, lift slightly
to release the ladder, then pull the ladder out and
rotate it to the down position. Pull the bottom
steps to fully extend the ladder. The ladder must be
retracted and secured before starting the engine.
Unassisted Boarding Situations
When using the ladder in an unassisted boarding
situation in deep water, release the ladder and
brace yourself by placing both feet against the
transom. Pull the ladder out and rotate it to the
Boarding Ladder Extended
Boarding Ladder Retracted

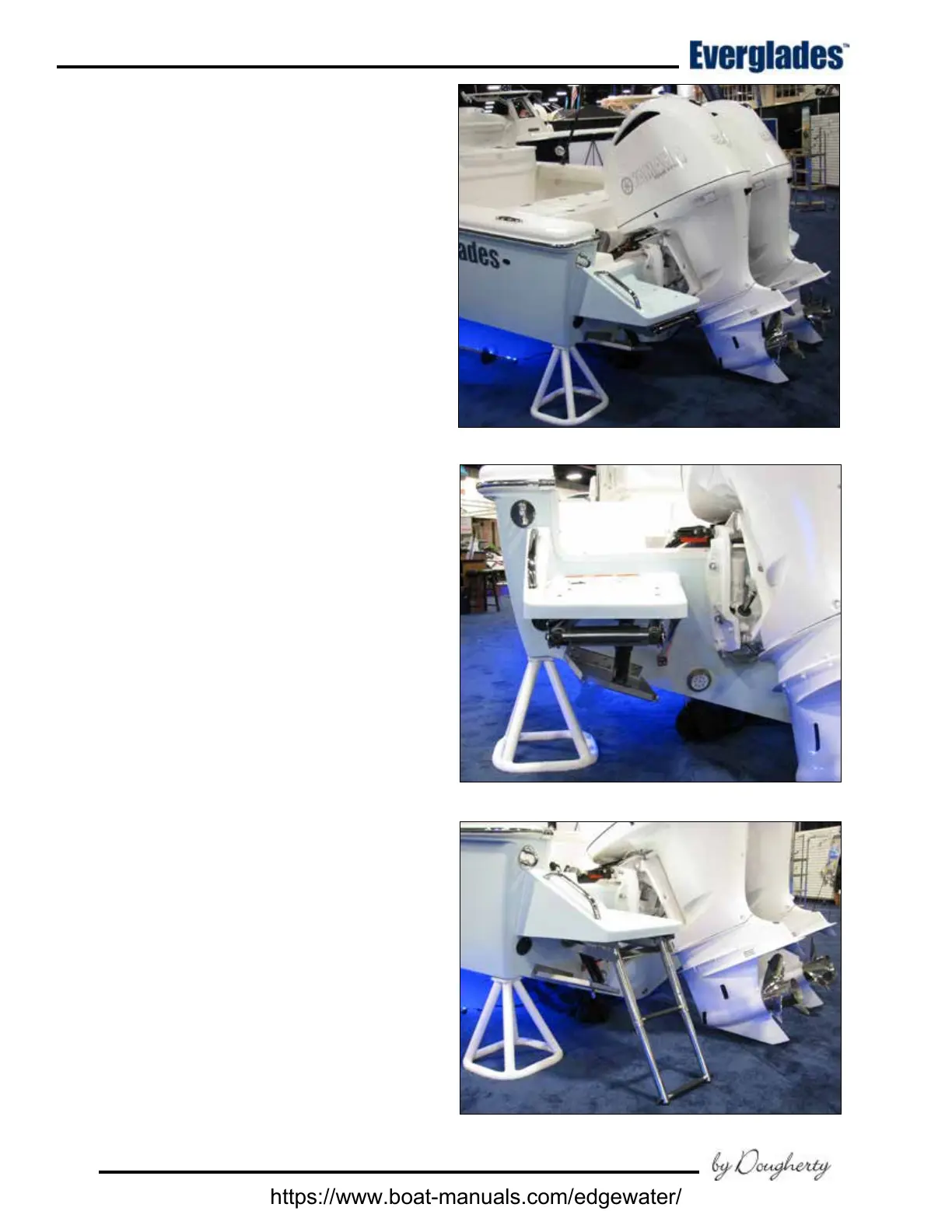

Engine Mounting System & Swim Platform
