68
Electrical System
The following are the main circuits supplied
and protected by heavy duty circuit breakers:
Main
Protects the circuit that supplies 12 volt current
to the head compartment DC breaker Panel. This
circuit is deactivated when the House battery
switch is o.
Electronics
Protects the main circuit that supplies 12 volt
current to the electronics fuse panel in the helm.
This circuit is deactivated when the House battery
switch is o.
Windshield
Protects the circuit that supplies 12 volt current
to the hydraulic system that raises and lowers the
windshield. This circuit is deactivated when the
House battery switch is o.
Power Steering
Protects the circuit that supplies 12 volt current to
the hydraulic steering assist system. This circuit is
deactivated when the House battery switch is o.
Windlass
Protects the circuit that supplies 12 volt current
to the windlass main circuit. This circuit is deac-
tivated when the House battery switch is o.
Amp
Protects the circuit that supplies 12 volt current
to the stereo amplier. This circuit is deactivated
when the House battery switch is o.

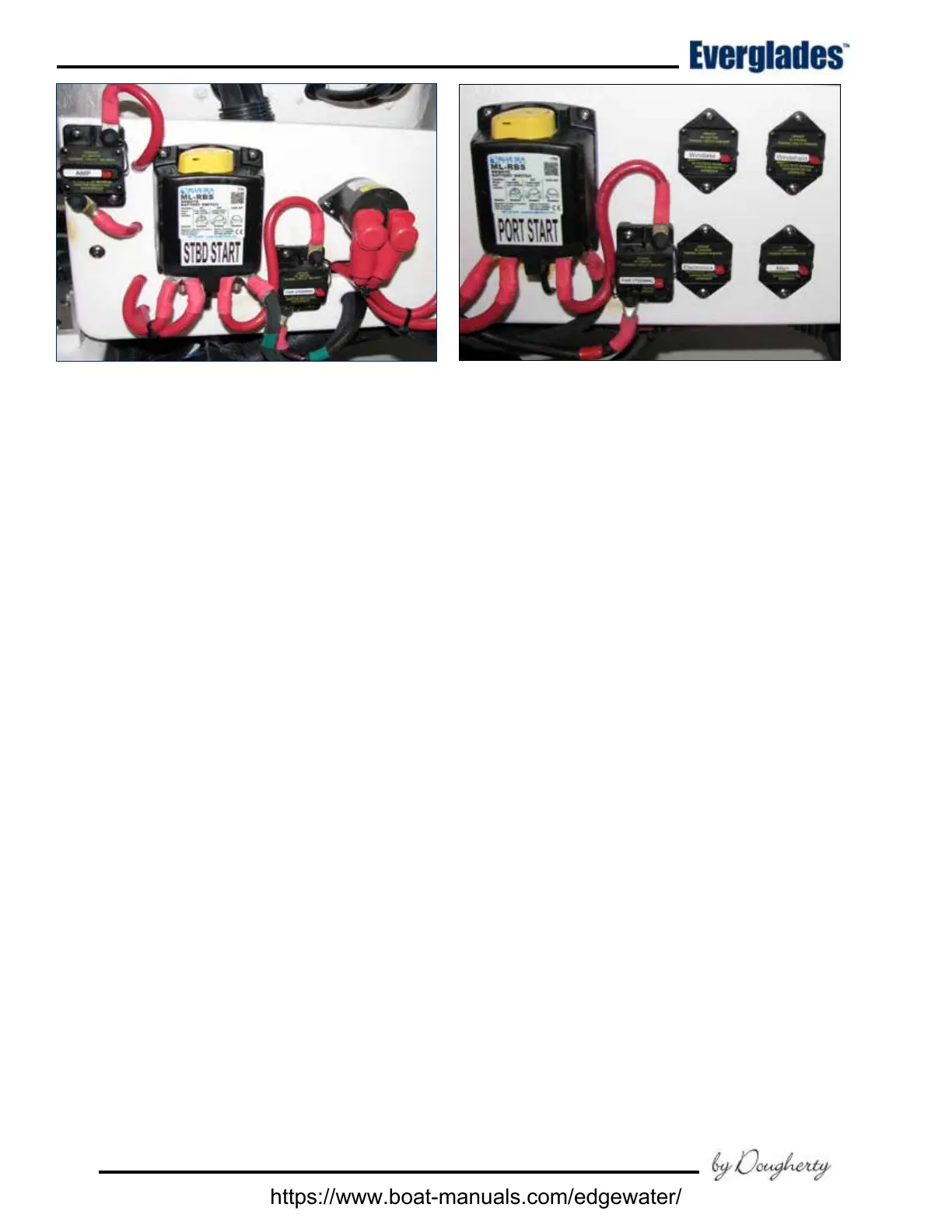

Typical Heavy Duty Circuit Breakers
Accessory Fuse Panel
Located near the battery switches. The fuses in
this panel protect some accessory circuits that
are activated by the House battery switch. These
circuits are deactivated when the House battery
switch is OFF.
Trim
Provides protection and electrical current to the
switches that control the trim tabs.
12V
Provides protection and power for the 12 volt ac-
cessory plugs.
Windlass Switch (2)
Provides protection and 12 volt electrical current
to the switches in the helm and rope locker that
control the windlass.
W/S Switch (2)
Provides protection and 12 volt electrical current
to the circuit for the switches that raises and low-
ers the windshield.
Bilge Light
Provides protection and 12 volt electrical current
to the circuit for the light that illuminates the aft
systems compartment.
Head Light
Provides protection and 12 volt electrical current
to the circuit for the lights that illuminate the head
compartment.
