Dover MagLink LX4 User Manual

Section 4 General Indications
The MagLink LX4 console is shipped in a cardboard box (L 450 x H 300 x D 200 [mm]) and includes the
components as follows:
l MagLink LX4 console
l Connection cable (220 V AC with Schuko plug)
l Quality control certification checklist
l User manual, installation manual and web configuration manual
Weight of the console with its carton: 2 kg.
The table below shows the primary technical characteristics of the console:
Element Characteristic
Display
Display TFT 7inch
Dimensions 155 x 88 [mm]
Console
Dimensions
·Width 267 mm
·Height with cable: 215 mm
·Depth 80 mm

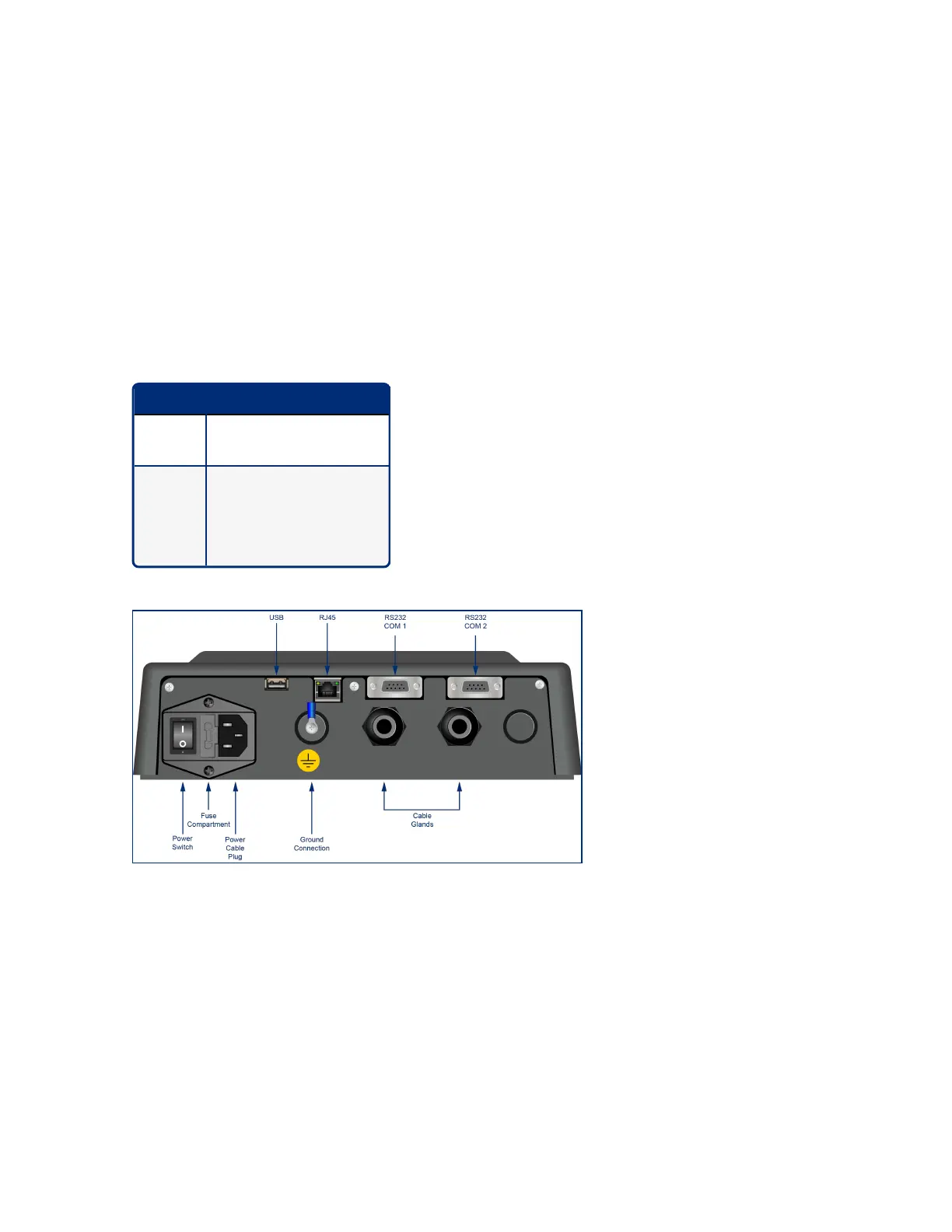

The illustration below shows the ports and connections on the bottom of the console:
M2050-EU Rev.: 1 Dover Fueling Solutions
Page 11

Dover MagLink LX4 Specifications

General

Brand	Dover
Model	MagLink LX4
Category	Controller
Language	English
