10 DR
®
11.5 CHIPPER SHREDDER
Shredder
Hopper

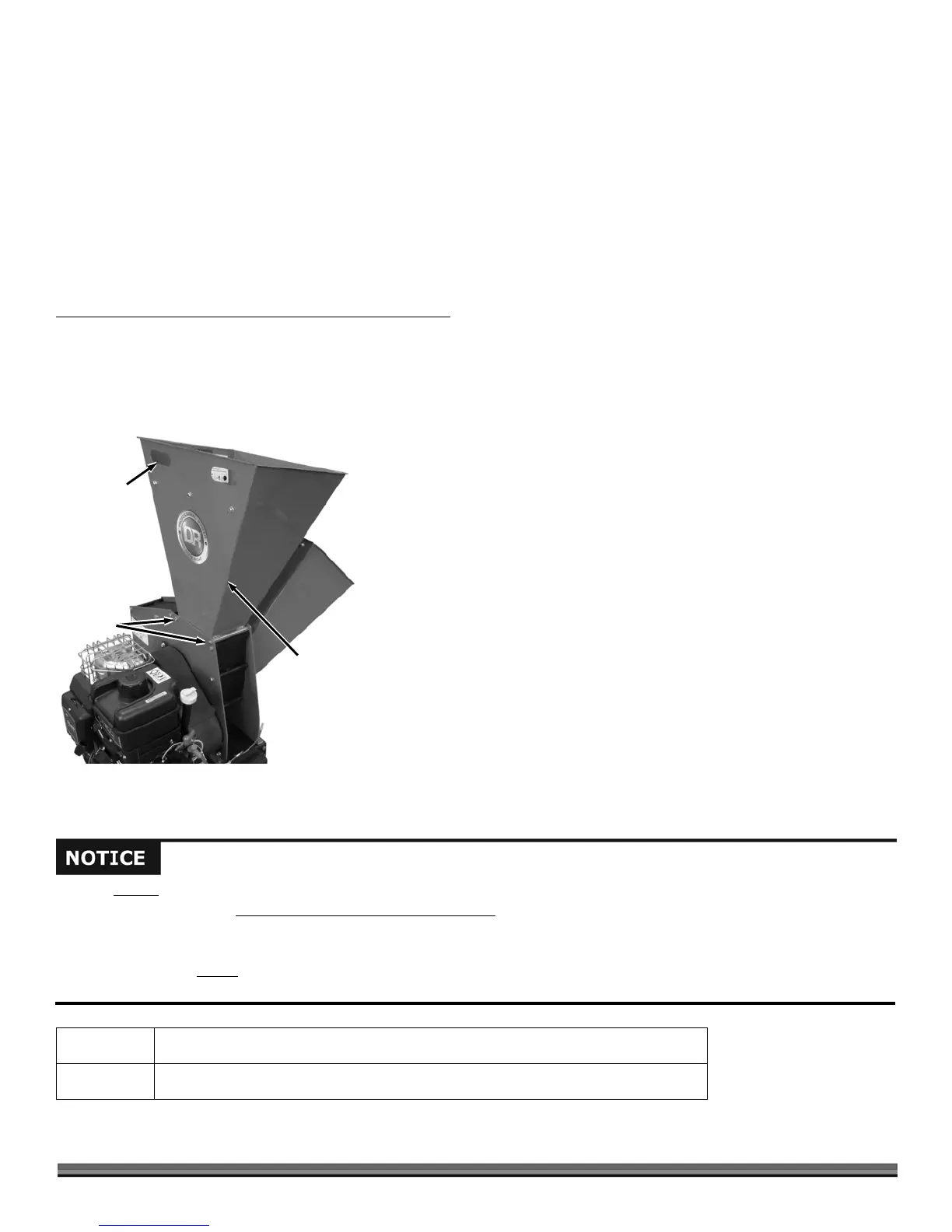

Figure 3
Bolts and
Locknuts
Hand Hold
Cutouts
Assembly
Parts Supplied in Shipping Box:
- 11.5 CHIPPER SHREDDER Power Unit
- Shredder Hopper
- Product Pack:
--Safety and Operating Instructions Manual
--Engine Manual
--Hardware (listed below)
Hardware in Product Package:
Part# Description Qty
38640 .......... Bolt, HCS, 5/16-18 X 6", GR5, ZP ................... 2
11076 .......... Nut, Nylon Lock, 5/16-18, ZP .......................... 2
Tools needed:
Two 1/2" Wrenches
Attaching the Shredder Hopper
1. Position the Shredder Hopper onto the Power Unit with the hand hold
cutouts facing the engine side (Figure 3).
2. Secure the Shredder Hopper with the two 5/16-18 X 6" Bolts and Locknuts
from the Product Package using two 1/2"Wrenches.
Adding Oil and Gasoline
Engine Oil
SAE 30: above 50 degrees F; 10w-30: 10-90 degrees F; 5w-30: 30 degrees F or below
Fuel
Unleaded gasoline (See Engine Manual) Note: With no more than 10% Ethanol
You MUST add oil before starting the Engine. This machine is shipped without oil. Traces of oil may be in the reservoir from
factory testing, but you MUST add oil before starting the Engine
. Fill the reservoir slowly, checking the level frequently to
avoid overfilling.
To get an accurate reading when checking the oil level:
- The Engine MUST
be level.
- Refer to the Engine Manual for detailed information before performing the following procedures.
