14 DR
®
FIELD and BRUSH MOWER
Always release the Traction Drive Lever before shifting gears to prevent
damage to the Transmission.

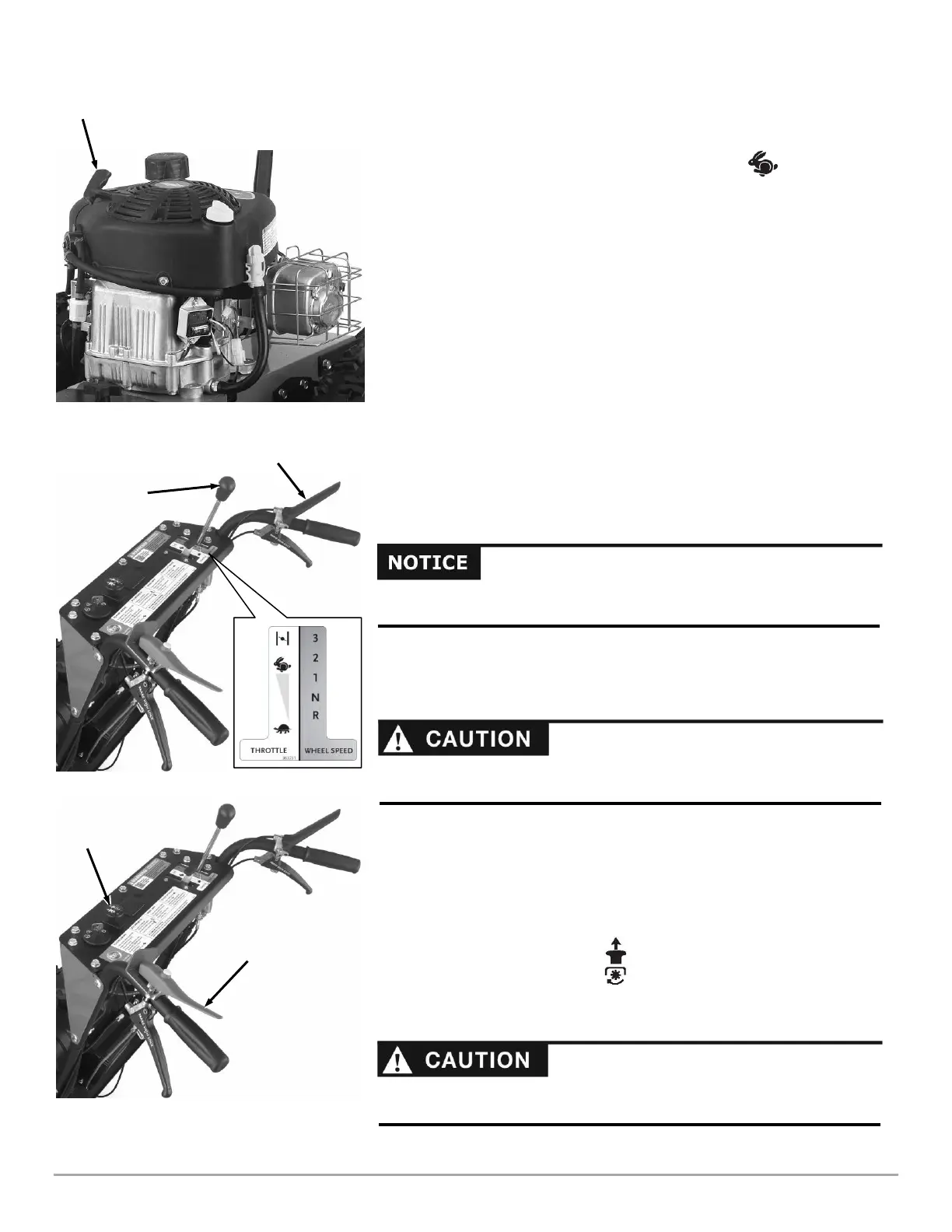

4. Grasp the Recoil Starter Handle and slowly pull until you feel resistance
(Figure 18). Let the Cord retract a little bit, and then pull the Cord rapidly to
start the Engine.
5. When the Engine starts, move the Throttle to the Fast position (Figure
16).
Engaging the Wheel Drive
The DR FIELD and BRUSH MOWER has a three-speed Forward, single-speed
Reverse Transmission. Speeds are generally used as follows:
1
st
Gear: Thick, woody vegetation.
2
nd
Gear: Stalky material or Field Mowing.
3
rd
Gear: Lighter Mowing or Transport mode.
Reverse Gear is ideal for maneuvering in tight spots.
While transporting the machine in 3rd Gear the Throttle can be used to
adjust speed.
When mowing the throttle should always be in the Fast Position.
Mowing Speed may impact cutting performance. Mowing in a slower gear
will improve cut quality.
For best operator control of the DR Field and Brush Mower, always select a
drive speed that matches the conditions. For example, use a slower speed
when operating in wet, heavy growth, slippery, and/or steeply sloped areas.
1. Move the Wheel Speed Lever to the desired gear (Figure 19).
2. Gently push down the Traction Drive Lever to engage the Wheels.
3. Release the Traction Drive Lever if you need to slow down or stop.
Note: If you have trouble shifting while on a hill or against an obstacle; lifting one
tire off the ground will release the stress in the drivetrain and ease shifting.
Engaging the Blade
1. Push down the Operator Presence Lever against the Handlebar Grip (Figure
20).
2. Engage the Blade by pulling up on the Blade Control Knob.
Note: If you pull up on the Blade Control Knob before holding down the Operator
Presence Lever, the Engine will shut off.
The steering brakes WILL NOT STOP the machine if the machine is in gear
and Traction Drive Lever is engaged.
Always disengage the blade of the DR FIELD and BRUSH MOWER before
shifting into reverse.
Operator Presence
Control Lever
