14 DR
®
PRO XL-DRT
Depth Stake

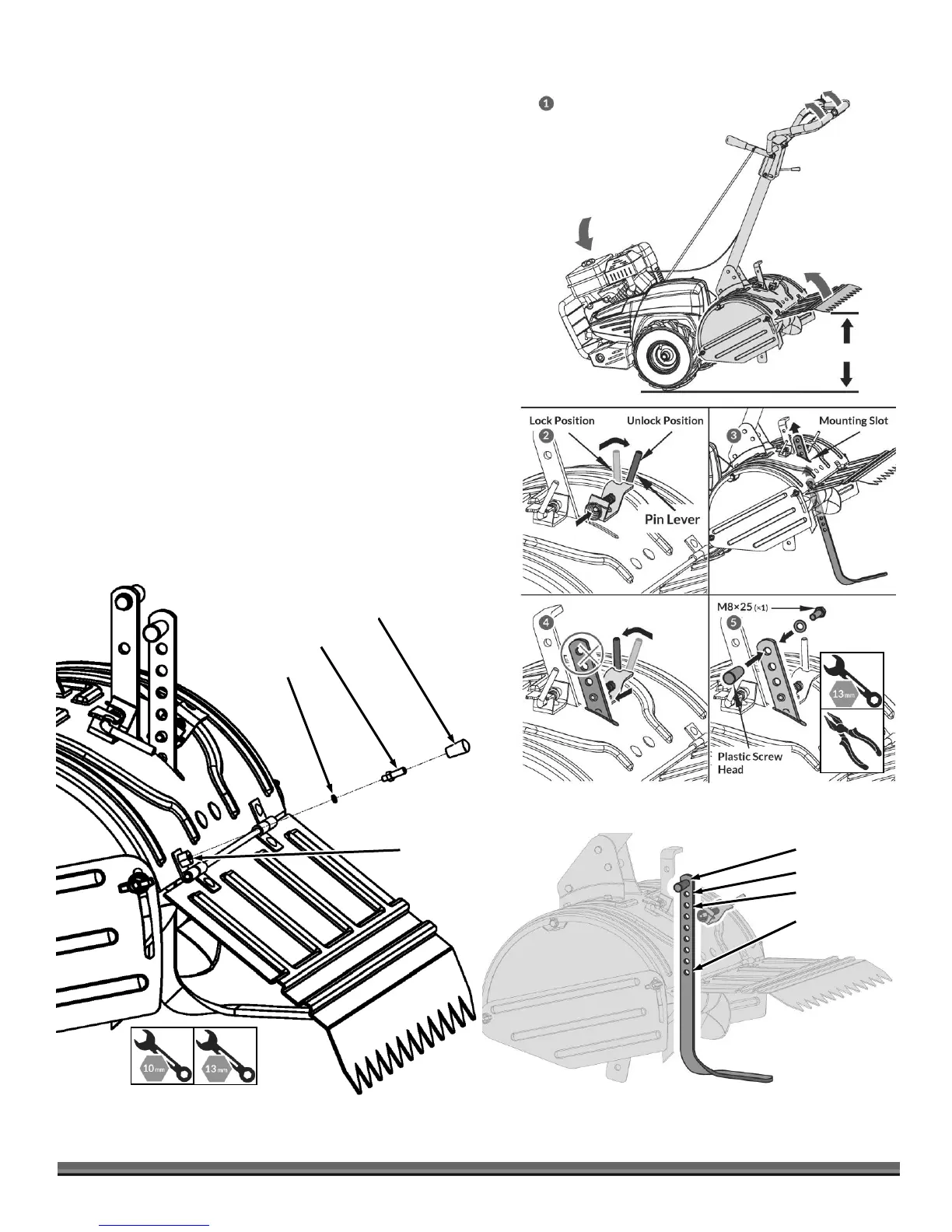

1. Hold the machine leaning forward. (see Figure 8a, Illustration 1)
2. Pull the pin lever to unlock position. (see Figure 8a, Illustration 2)
3. Insert the depth stake into the slot in the blade cover. (see Figure
8a, Illustration 3)
4. Release the pin into the fourth hole of depth stake. At the same
time, switch the pin lever to the lock position. (see Figure 8a,
Illustration 4)
5. Fasten the M8×25 bolt, washer and plastic screw head into the
first hole of depth stake. Hold the plastic screw head in place with
pliers while screwing the bolt in. (see Figure 8a, Illustration 5)
6. Adjust the depth stake to the desired depth of tilling. (See Figure
8b)
Rear Shield Limiter
1. Screw the spring washer, limiter and rubber cap into the bolt hole
in the back of blade cover. Hold the bolt hole in place with 13mm
wrench while fastening the limiter bolt in with 10mm wrench.
(See Figure 9)
