Head Height Adjustment
Note: The following steps change the cutting height by 3/4" increments. The
middle cutting height is shown in Figure 9. The highest setting is shown in
Figure 10. The lowest setting is shown in Figure 11.
Tools and Supplies Needed:
 Phillips head Screwdriver with at least a 6" shank
 Gloves
1. Align the hole in the Anti Wrap Canister with the hole in the internal housing
at the location shown (Figure 9).
2. Insert a Philips Head Screwdriver into the hole in the Anti Wrap Canister and
the hole in the internal Housing.
3. Rotate the Mow-Ball
®
Assembly until the Screw Driver slides into a hole in
the shaft, locking it into place.
4. Looking up at the bottom of the Mow-Ball
®
, turn it counterclockwise until it
unscrews completely from the Bearing Housing (Figure 10).
Note: If the Mow-Ball
®
continues to turn, but does not come off, check to be sure
that you locked the Screwdriver into the shaft.
If the Mow-Ball will not turn by hand a 9/16" Socket can be used on the Bolt
(inside the bottom of the Mow-Ball) to loosen it. You may need to clean
grass or debris out of the recess in the Mow-Ball first.
5. Slide the Quick Lock, Adapter, and Molded Spacers off the Shaft (Figure
11).
6. The Anti-Wrap Can and metal Spacer should remain on the Shaft with the
Screwdriver.
7. Install the Molded Spacers and Quick Lock with Adapter in the required
order to achieve the desired cutting height.
8. Place the Mow-Ball Bolt into the hex cavity of the Mow-Ball
®
so it is going
up through the top of the Mow-Ball
®
.
9. Looking up from the bottom of the Mow-Ball
®
, hold the Bolt Head in place
with your finger and turn the Mow-Ball clockwise to start the Bolt into the
Shaft (Figure 10).
10. Tighten the assembly securely by turning the Mow-Ball
®
clockwise until
hand tight.
11. Remove the Screwdriver.
Note: When finished, there should be no gaps between any of the components.

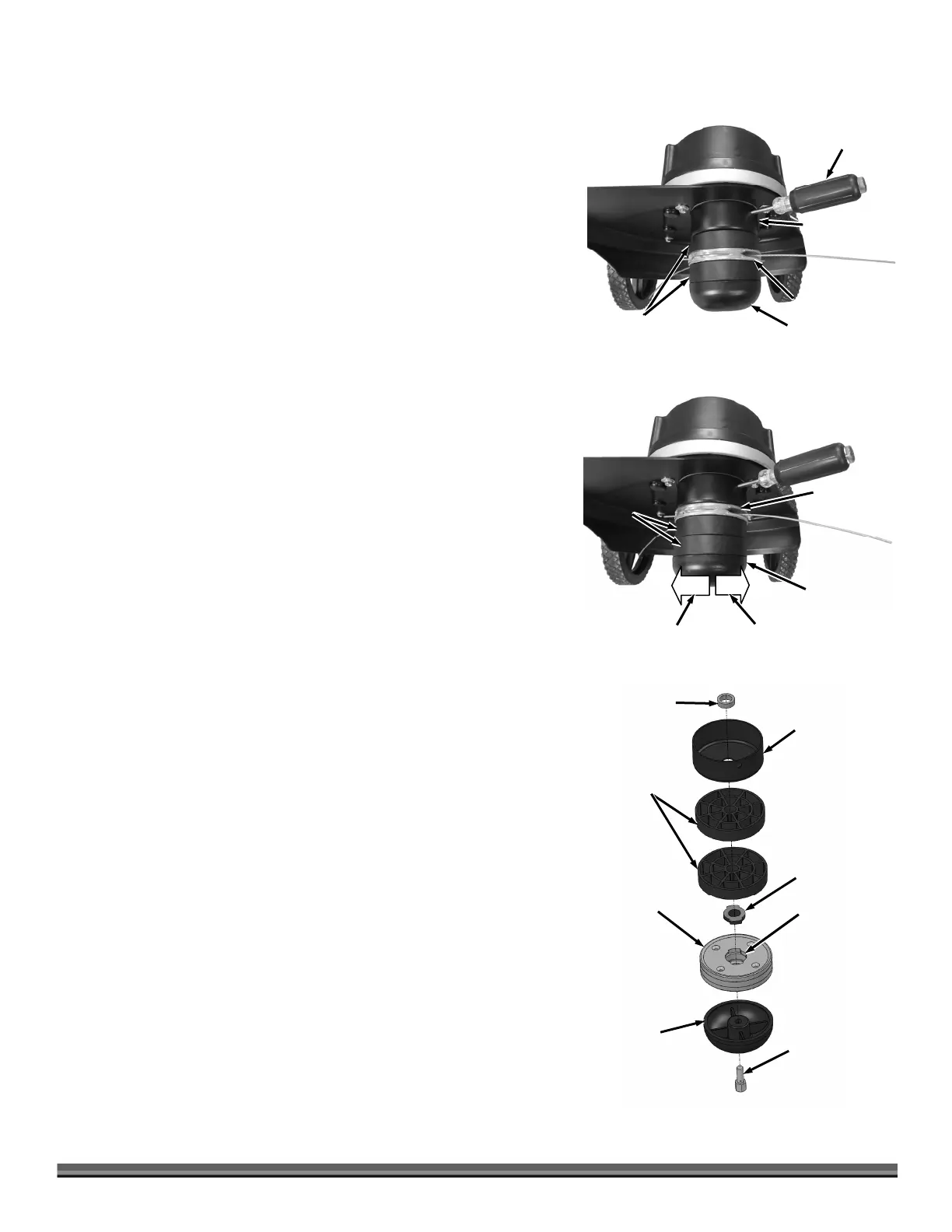

Quick Lock
Figure 9
Molded
Spacers
A
nti-Wrap Can
Mow-Ball
®
Screw Driver
Mow-Ball
®
Figure 11
Mo
w
-Bal
l
®
Bolt
Quick Lock
A
dapte
r
Molded Spacers
A
nti-Wrap Can
Spacer
A
dapter Hole
(facing up)
